TOOL HOLDER BUSHINGS

BORING BAR SLEEVES

MORSE TAPER DRILL SOCKETS

TYPE "LBF"

These LBF Type Bushings are manufactured with a flat for clamping the Toolholder and two set screws for clamping variety of Drills. Boring Bars and other Shank Tools. Equipped with two clearance notches for coolant and are heat treated and precision ground concentric.

Bushings

I.D. SIZE / CAT. NO.

O.D.

LENGTH

1/4

3/8

1/2

5/8

3/4

7/8

1-1/4

1-1/2

1-3/4

1-1/4

2-13/16

54100

54101

54102

54103

54104

54105

54106

5/8

1-1/2

3-5/32

54200

54201

54202

54203

54204

54205

54206

54207

5/8

2”

3-3/4

54302

54303

54304

54305

54306

54307

54308

54309

3/4

TYPE "LB"

ThisType LB Toolholder Bushing with long solid body has four clearance holes so that you can clamp directly on the tool with Set Screws for positive alignment of the cutting edge of the tool. Manufactured to include clearance notches for coolant. They are hardened and precision ground concentric.

Toolholder Bushing

I.D. SIZE / CAT. NO.

O.D.

LENGTH

1/4

3/8

1/2

5/8

3/4

7/8

1-1/4

1-1/2

3-1/8

54000

54001

54002

54003

54004

54005

54006

54007

3-1/8

3/8

1/2

1-3/4

5/8

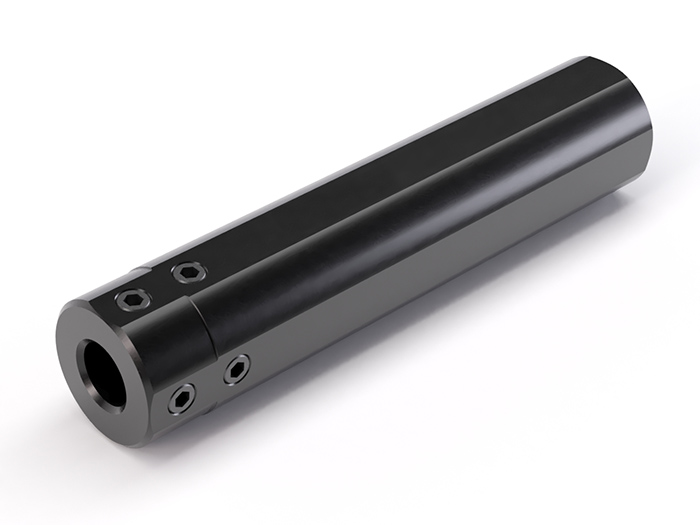

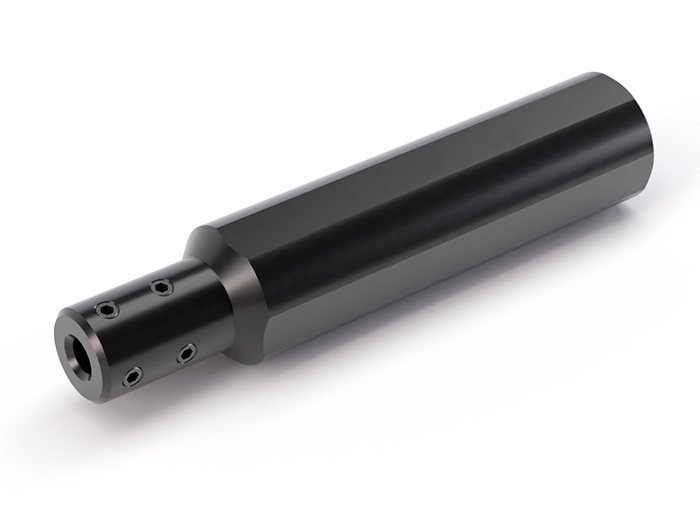

Boring Bar Sleeves

Boring Bar Sleeves

I.D. Size / Cat. No.

O.D.

Length

1/4

5/16

3/8

1/2

5/8

3/4

7/8

1-1/4

1-1/2

1-3/4

2-1/2

3/4

1-1/2

1-1/2

1-3/4

2-1/2

10"

11-1/2

14"

TAPER DRILL SOCKETS

SUPERIOR DESIGN/PREMIUM QUALITY

These taper drill sockets are hardened, precision ground, and concentric within. 0002 of an inch. They fit directly into tool holders and turrets to positively drive all morse taper shank tools, drills, reamers, and counterbores. The straight shank style "A" taper drill sockets are manufactured in limited quantities and sizes. Please contact our courteous sales staff for availability and pricing information. Select the O.D. size that fits your machine and order from the chart below.

TAPER DRILL SOCKETS

		SHANK DIA.		MORSE TAPER
CAT. NO.	STYLE	A	B	C	D	E	F
MT1-0075	A	3/4	3-1/4	No. 1	2.313	2-3/16	1
*MT1-1000	B	1	3-3/4	No. 1	3.125	2-3/16	1-1/4
*MT2-1000	B	1	3-3/4	No. 2	3.125	2-5/8	1-1/4
*MT1-1250	B	1-1/4	4	No. 1	3.375	2-3/16	1-1/2
*MT2-1250	B	1-1/4	4	No. 2	3.375	2-5/8	1-1/2
*MT3-1250	B	1-1/4	4	No. 3	4.000	3-1/4	1-1/2
*MT1-1500	B	1-1/2	5	No. 1	4.375	2-3/16	1-3/4
*MT2-1500	B	1-1/2	5	No. 2	4.375	2-5/8	1-3/4
*MT3-1500	B	1-1/2	5	No. 3	4.375	3-1/4	1-3/4
*MT4-1500	B	1-1/2	5-3/4	No. 4	4.375	4-1/8	1-3/4
*MT1-1750	B	1-3/4	5-3/4	No. 1	5.125	2-3/16	2
*MT2-1750	B	1-3/4	5-3/4	No. 2	5.125	2-5/8	2
*MT3-1750	B	1-3/4	5-3/4	No. 3	5.125	3-1/4	2
*MT4-1750	B	1-3/4	5-3/4	No. 4	4.375	4-1/8	2

*Item available in style "A". Call for price and availability.

		SHANK DIA.		MORSE TAPER
CAT. NO.	STYLE	A	B	C	D	E	F
MT5-1750	C	1-3/4	11-1/8	No. 5	4-1/4	5-1/4	2-3/8
MT2-2000	B	2	6-1/8	No. 2	5-1/2	2-5/8	2-1/4
MT3-2000	B	2	6-1/8	No. 3	5-1/2	3-1/4	2-1/4
MT4-2000	B	2	6-1/8	No. 4	5-1/2	4-1/8	2-1/4
MT5-2000	C	2	11-1/8	No. 5	4-1/4	5-1/4	2-3/8
MT2-2500	B	2-1/2	5-3/4	No. 2	5-1/8	2-5/8	2-3/4
MT3-2500	B	2-1/2	6-5/8	No. 3	6	3-1/4	2-3/4
MT4-2500	B	2-1/2	6-5/8	No. 4	6	4-1/8	2-3/4
MT5-2500	B	2-1/2	7-5/8	No. 5	7	5-1/4	2-3/4
MT4-3000	B	3	6-5/8	No. 4	6	4-1/8	3-3/8
MT5-3000	B	3	7-5/8	No. 5	7	5-1/4	3-3/8
MT4-2250
