CNC and Swiss Type Cut-Off Toolholders

Toolholders shown use .750" sq. insert
Patent No. D307859

See our Indexable Carbide Inserts that fit these holders.

CNC and Swiss Type Cut-Off Toolholders
CNC and Swiss Type Cut-Off Toolholders - Diagram

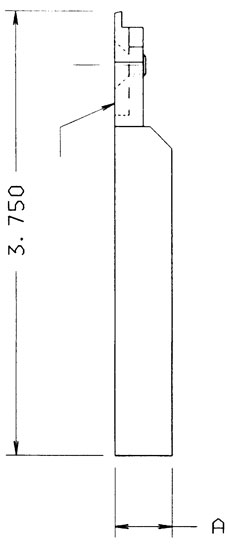

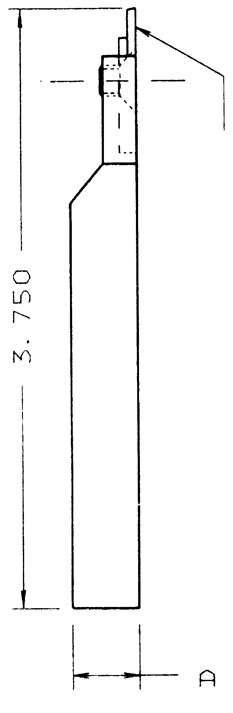

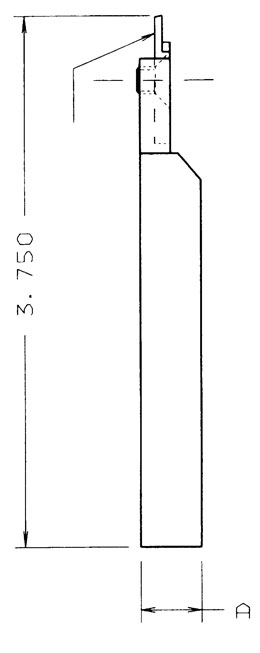

CNC Swiss Type Cut-Off Toolholders Standard CNC Swiss Type Cut-Off Toolholders Standard (R) CNC Swiss Type Cut-Off Toolholders Standard (C)
A B CAT# FOR STANDARD
TOOLHOLDER		 CAT# FOR STYLE R
TOOLHOLDER		 CAT# FOR STYLE C
TOOLHOLDER
0.312 0.312 STCC-2117 STCC-2117R STCC-2117C
0.375 0.375 STCC-2333 STCC-2333R STCC-2333C
0.500 0.500 STCC-2237 STCC-2237R STCC-2237C
0.500 0.625 STCC-1099 STCC-1099R STCC-1099C
0.750 0.750 STCC-2218 STCC-2218R STCC-2218C
0.750 1.000 STCC-2220 STCC-2220R STCC-2220C
8MM 8MM STCC-1915 STCC-4005R STCC-4005C
10MM 10MM STCC-4006 STCC-4006R STCC-4006C
12MM 12MM STCC-4007 STCC-4007R STCC-4007C

CAT. NO. DESCRIPTION
DAV-CIN-SCR INSERT SCREW
DAV-CIN-WR INSERT WRENCH


Toolholders shown use 1" sq. insert
Patent No. D307859

CNC and Swiss Type Cut-Off Toolholders
A L CAT# FOR STANDARD
TOOLHOLDER
0.500 4" STCC-4784
0.625 6" STCC-4785
0.750 6" STCC-4786
1.000 6" STCC-4656
12MM 100MM STCC-4783
16MM 150MM STCC-4105
20MM 150MM STCC-6106

CAT. NO. DESCRIPTION
DAV-CIN-SCR-ISO INSERT SCREW
DAV-CIN-WR INSERT WRENCH
