Adjustable Floating Drill Holders

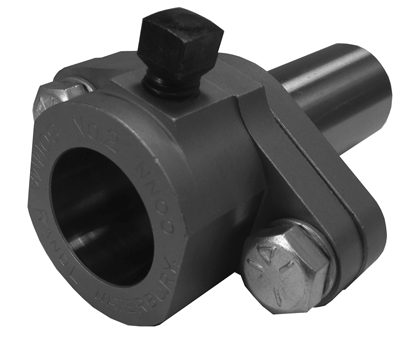

"V" TYPE ADJUSTABLE (FLOATING) DRILL HOLDER
• ELIMINATES BUSHINGS
• HOLDS ANY SIZE DRILL SECURELY
• REVERSIBLE CLAMP


CAT. NO.

A

B

C

D

E

CAPACITY

MIN.

MAX.

VFDH00

5/8

1-1/8

1"

2"

13/32

1/64

1/2

VFDH0

3/4

1-1/2

1-1/4

2-5/8

7/16

1/16

3/4

VFDH2

1"

1-3/4

1-5/8

3-1/2

11/16

1/8

1"


Click here for #00 Drill Holder Bushings

Click here for #0 Drill Holder Bushings

Click here for #2 Drill Holder Bushings



"V" FLOATING DRILL HOLDER PARTS

Part No.

VFDH00
Cat. No.

VFDH0
Cat. No.

VFDH2
Cat. No.

1. Shank

VFDH00-1

VFDH0-1

VFDH2-1

2. Body

VFDH00-2

VFDH0-2

VFDH2-2

3. Clamp

VFDH00-3

VFDH0-3

VFDH2-3

4. Body Screw & Washer

VFDH00-4

VFDH0-4

VFDH2-4

5. Clamp Screw

VFDH00-5

VFDH0-5

VFDH2-5

These tools give all the advantages of the adjustable chuck for holding drills and other tools and also make it possible to correct for misalignment between the turret and spindle of the machine.

Eliminates the use of drill bushings.



Chuck-Type Adjustable

(Floating) Drill Holders

CAT. NO.

CAP

A

B

C

D

E

F

G

00JC-5
00JC-8
0JC-5

0JC-8
0JC-12
2JC-8

2JC-12
2JC-16
2JC-24

0-5/32
0-1/4
0-5/32

0-1/4
0-3/8
0-1/4

0-3/8
0-1/2
3/16-3/4

1-7/8
2-1/4
1-7/8

2-1/4
3"
2-1/4

3"
3-1/4
4-3/4

1"
1-1/8
1"

1-1/8
1-1/2
1-1/8

1-1/2
1-3/4
2-1/2

7/8
1-5/16
7/8

1-5/16
1-11/16
1-5/16

1-11/16
1-15/16
2-9/16

1-7/16
1-15/16
1-7/16

1-15/16
2-9/16
1-15/16

2-9/16
3-1/4
4-3/32

1-1/4
1-1/4
1-1/2

1-5/8
2"
2"

2"
2"
3-1/4

5/8
5/8
3/4

3/4
3/4
1"

1"
1"
1"

1-1/16
1-1/2
1-1/16

1-1/2
2-1/16
1-1/2

2-1/16
2-5/8
3-7/32

Floating Drill Holders
(Adjustable)

• Fully adjustable to correct for machine misalignment
• Hardened alloy steel
• Precision ground for perfect alignment
• Holds standard drill bushings

CAT. NO.

A

B

C

D

E

F

G

H

J

K

FDH00

5/8

1-1/2

2-13/32

3/8

1/2

11/16

15/16

1/2

1-13/16

15/16

FDH1

3/4

2"

3-5/32

1/2

5/8

7/8

1-5/16

11/16

2-7/16

1-5/32

FDH2

1"

2"

3-7/16

11/16

1"

1-1/8

1-5/8

7/8

2-15/16

1-7/16

FDH3

1-1/4

2-3/4

4-1/2

3/4

1-1/4

1-3/8

2-3/8

1-3/16

4"

1-3/4

FDH4A

1-1/2

3-1/4

4-13/16

3/4

1"

1-5/32

1-7/8

15/16

3-3/4

1-9/16

FDH4B

1-1/2

3-1/4

5-7/16

1-1/16

1-1/2

1-19/32

2-5/8

1-5/16

4-3/4

2-5/32

Click here for #00 Drill Holder Bushings

Click here for #0 Drill Holder Bushings

Click here for #2 Drill Holder Bushings

FLOATING DRILL HOLDER PARTS

Part No.

FDH00
Cat. No.

FDH1
Cat. No.

FDH2
Cat. No.

FDH3
Cat. No.

FDH4A
Cat. No.

FDH4B
Cat. No.

1. Body

FDH00-1

FDH1-1

FDH2-1

FDH3-1

FDH4A-1

FDH4B-1

2. Shank

FDH00-2

FDH1-2

FDH2-2

FDH3-2

FDH4A-2

FDH4B-2

3. Shank Screw

TT00-12

TT1-12

TT2-12

FDH4A-3

FDH4A-3

TT3-12

4. Clamp Screw & Washer

FDH00-4

FDH1-4

FDH2-4

FDH3-4

FDH4A-4

FDH4B-4

5. Drill Holder Screw

TT00-13

TT1-6

TT2-6

TT2-13

TT2-13

TH4-3

Solid Drill Holder for Davenport Machines
• SHANK AND DRILL HOLE PRECISION GROUND FOR MAXIMUM CONCENTRICITY
• ALLOY STEEL-HEAT TREATED FOR LONG LIFE
• STOP SCREW IN SHANK PREVENTS DRILL PUSHBACK
• TAKES STANDARD DRILL BUSHINGS

Cat. No. SDH-DAV
