CNC, ADJUSTMENT FREE, INTERNAL BROACH TOOL HOLDERS

Introducing a wobble broach tool that can be quickly setup for use in CNC machines.

(Take advantage of your CNC machine's capabilities.)

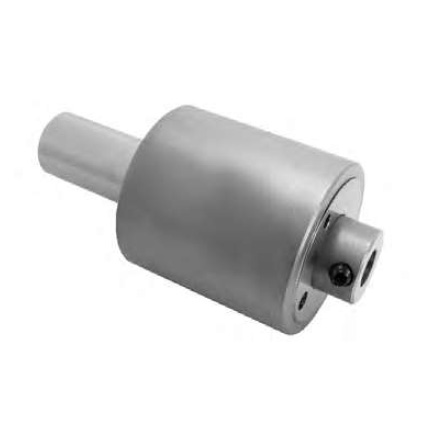

Internal Rotating Broach Holder

CONVENTIONAL HOLDERS

Click on the Catalog Number to order online!

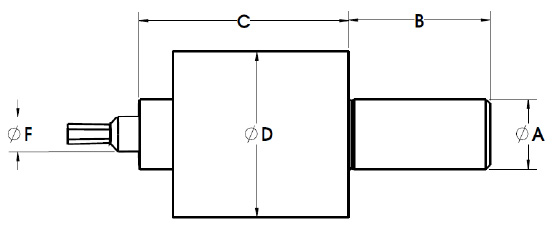

CAT. NO. A B C D E F G
ORB00-CNC 5/8 1-1/2 1-59/64 1-1/2 2-7/16 .315 9/16
ORB0-CNC 3/4 2" 2-17/32 2-3/8 3-5/16 .500 .742
ORB2-CNC 1" 2" 2-17/32 2-3/8 3-5/16 .500 .742
ORB3-CNC 1-1/4" 3" 2-17/32 2-3/8 3-5/16 .500 .742
ORB4-CNC 1-1/2" 3" 2-17/32 2-3/8 3-5/16 .500 .742

• Adjustment free holder for CNC machines

• Requires X-Axis machine adjustment only

• No center indicating required

Links to Internal Broaches and Setup Gages
HEX broaches with .315 and .500 diameter shank.
SQUARE broaches with .315 and .500 diameter shank.
HEX and SQUARE broaches with .750 diameter shank.
DOUBLE HEX broaches.
SIX LOBED broaches.
J500 broaches with .500 and .750 diameter shanks.
Broach Setup Gages.
Internal Rotating Broach Holder

COLLET CHUCK STYLE HOLDERS

HAVE ALL THE SAME FEATURES AS THE COLLET CHUCK STYLE HOLDERS LISTED ABOVE

Click on the Catalog Number to order online!
        NUT COLLET COLLET
CAT. NO. A B C DIA. I.D. (std) MAX. CAP.
ORB00-CNC-ER16M 5/8" 2" 2-11/16" 22MM .315 13/32"
ORB0-CNC-ER20H 3/4" 2" 3-5/8" 1.348 .500 13MM
ORB2-CNC-ER20H 1" 2" 3-5/8" 1.348 .500 13MM
ORB3-CNC-ER20H 1-1/4" 3" 3-5/8" 1.348 .500 13MM
ORB4-CNC-ER20H 1-1/2" 3" 3-5/8" 1.348 .500 13MM
NOTE: COLLET NUT, COLLET WRENCH, SPINDLE WRENCH AND STANDARD
HIGH PRECISION COLLET INCLUDED WITH EACH CAT. NO.
