Attachments for Davenport Machines

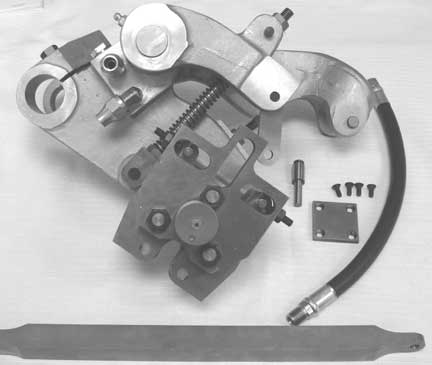

3rd Position Thread Roll Attachment for Davenport Machines



  • The 3rd Position Thread Roll Attachment (1431-SA-SOMMA) is connected to a special swing arm casting with 2 thread rolls.
  • The swing arm feeds the attachment until the rolls are on center with the blank diameter of the work piece.
  • The attachment feeds the rolls inward on the center line of the work piece.
  • When the threads are formed, the roll arms are released.
  • The attachment returns to the home position.

Cat. No.

1431-SA-SOMMA

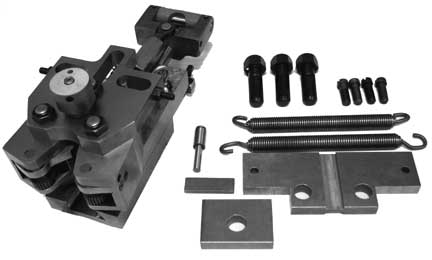

4th Position Thread Roll Attachment for Davenport Machines



  • The 4th Position Thread Roll Attachment (1421-SA-SOMMA) is connected to a slide with 2 thread rolls.
  • The slide feeds the attachment until the rolls are on center with the blank diameter of the work piece.
  • The attachment feeds the rolls inward on the center line of the work piece.
  • When the threads are formed, the roll arms are released.
  • The attachment returns to the home position.

Cat. No.

1421-SA-SOMMA

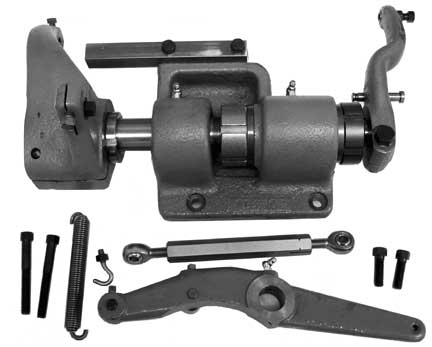

5th Position Countersink Attachment For Davenport Machines



  • Consists of a cam operated arm.
  • Can be mounted with any kind of left hand end working tool (ie countersinks, drill, turning tools, reamers, etc.)
  • After cutoff, the arm is positioned in front of the burring spindle. The workpiece can then be fed into the desired tool.

Cat. No.

1263-119-1-SA-SOMMA

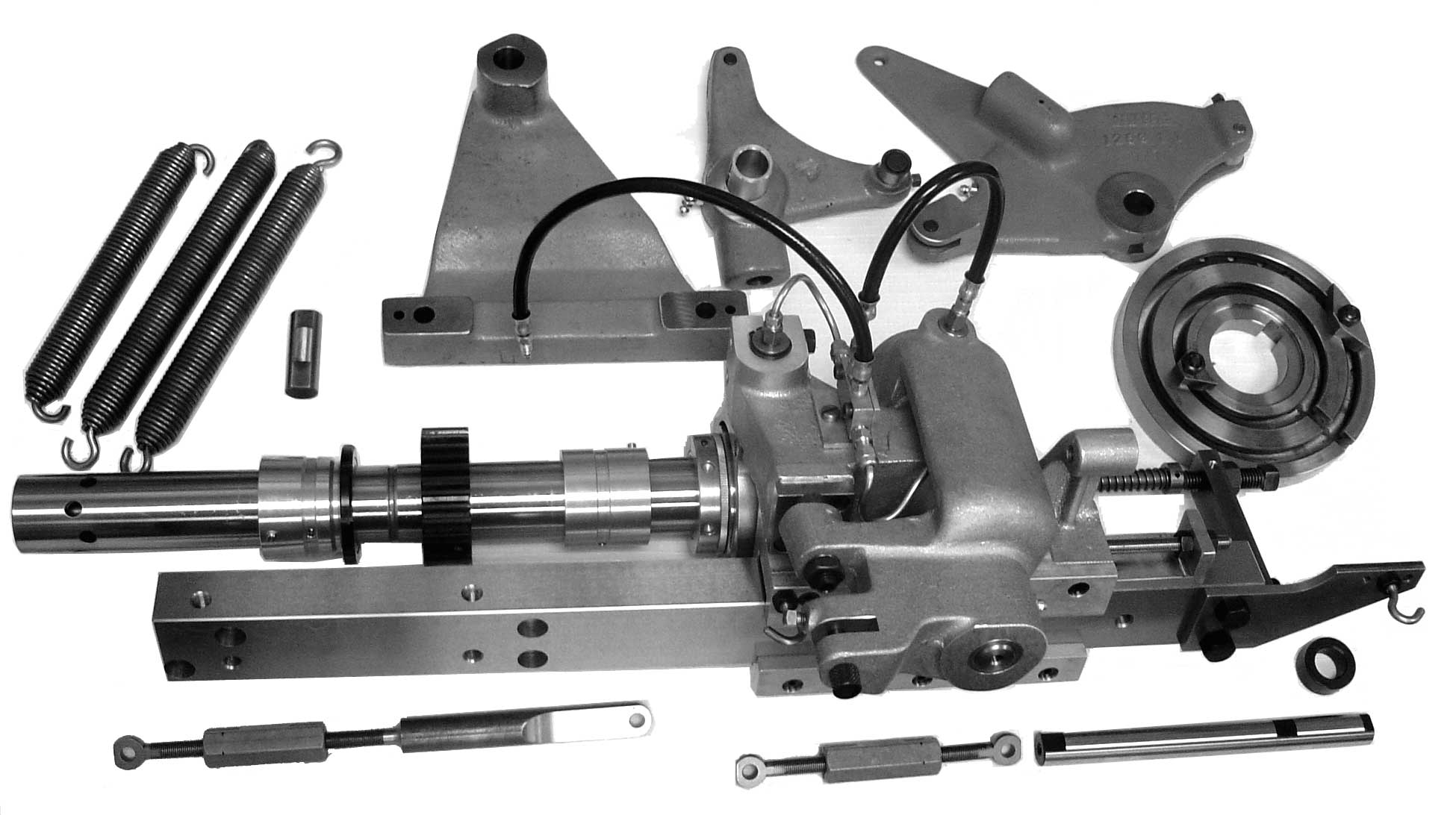

5th Position Stationary Head Burring Attachment For Davenport Machines



There is a chucking mechanism on the burring spindle that can be actuated at any time during the cycle. This facilitates the use of this attachment.

Cat. No.

1263-5-10-SA-SOMMA
