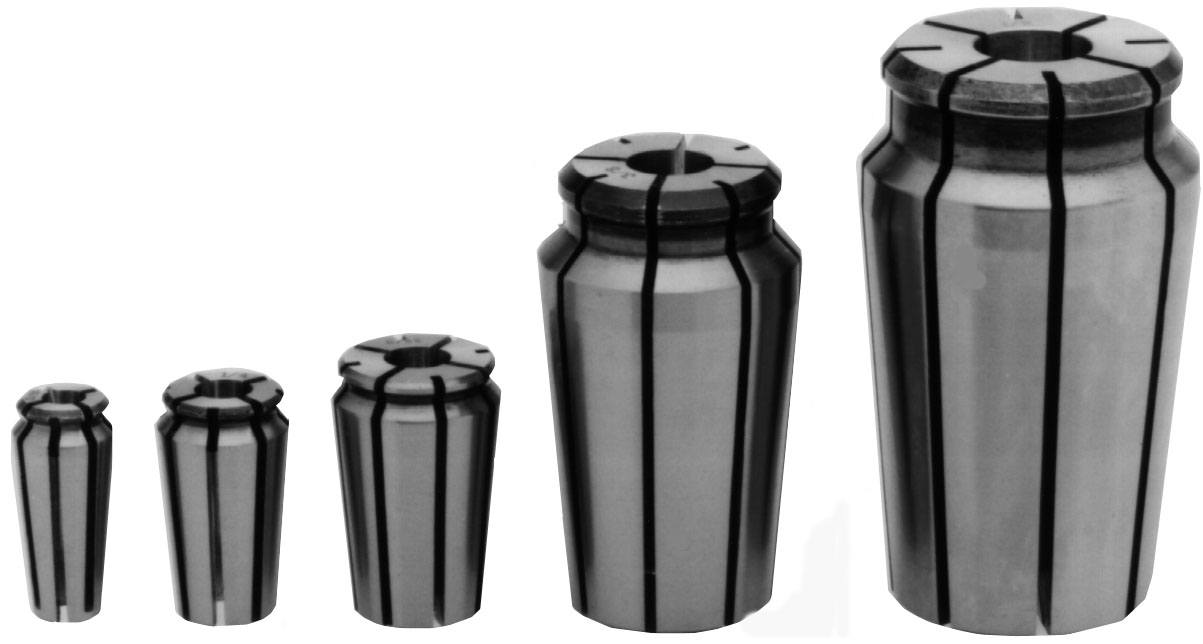

Acura-Flex* Style Collets



Acura-Flex* Style Collets

Acura-Flex* Style Collets

INTERCHANGEABLE WITH UNIVERSAL ENGINEERING
ACURA-FLEX* STYLE COLLETS


ALSO AVAILABLE WITH SEALED SLOTS FOR UP TO 650 PSI COOLANT FEED.

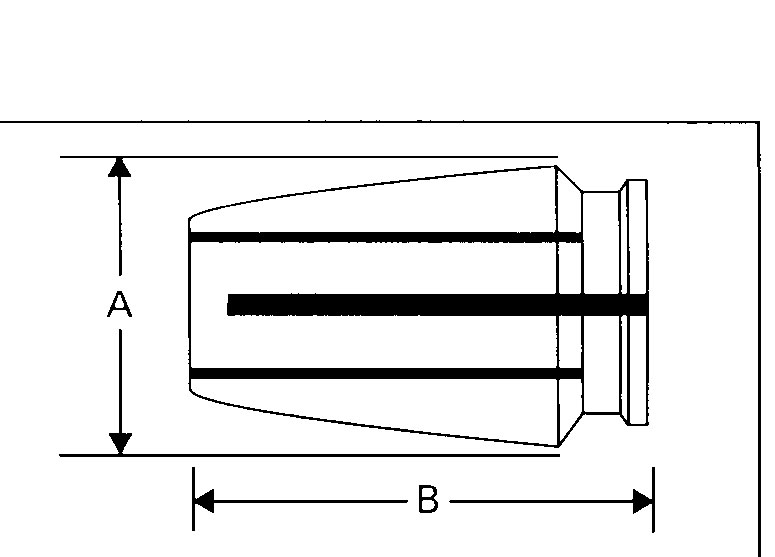

Collet

Series



A



B

AF25 .438 1.000
AF38 .563 1.030
AF50 .720 1.160
AF75 1.130 2.020
AF100 1.446 2.500

 Bore

Series

AF100

Cat. No.

Series

AF75

Cat. No.

Series

AF50

Cat. No.

Series

AF38

Cat. No.

Series

AF25

Cat. No.

5/64







AF38-5/64

AF25-5/64

3/32







AF38-3/32

AF25-3/32

7/64



AF75-7/64

AF50-7/64

AF38-7/64

AF25-7/64

3MM







AF38-3

AF25-3

1/8



AF75-1/8

AF50-1/8

AF38-1/8

AF25-1/8

9/64



AF75-9/64

AF50-9/64

AF38-9/64

AF25-9/64

5/32



AF75-5/32

AF50-5/32

AF38-5/32

AF25-5/32

11/64



AF75-11/64

AF50-11/64

AF38-11/64

AF25-11/64

3/16



AF75-3/16

AF50-3/16

AF38-3/16

AF25-3/16

5MM



AF75-5

AF50-5

AF38-5

AF25-5

13/64

AF100-13/64

AF75-13/64

AF50-13/64

AF38-13/64

AF25-13/64

7/32

AF100-7/32

AF75-7/32

AF50-7/32

AF38-7/32

AF25-7/32

15/64

AF100-15/64

AF75-15/64

AF50-15/64

AF38-15/64

AF25-15/64

1/4

AF100-1/4

AF75-1/4

AF50-1/4

AF38-1/4

AF25-1/4

17/64

AF100-17/64

AF75-17/64

AF50-17/64

AF38-17/64



7MM

AF100-7

AF75-7

AF50-7

AF38-7



9/32

AF100-9/32

AF75-9/32

AF50-9/32

AF38-9/32



19/64

AF100-19/64

AF75-19/64

AF50-19/64

AF38-19/64



5/16

AF100-5/16

AF75-5/16

AF50-5/16

AF38-5/16



21/64

AF100-21/64

AF75-21/64

AF50-21/64

AF38-21/64



11/32

AF100-11/32

AF75-11/32

AF50-11/32

AF38-11/32



9MM

AF100-9

AF75-9

AF50-9

AF38-9



23/64

AF100-23/64

AF75-23/64

AF50-23/64

AF38-23/64



3/8

AF100-3/8

AF75-3/8

AF50-3/8

AF38-3/8



25/64

AF100-25/64

AF75-25/64

AF50-25/64





13/32

AF100-13/32

AF75-13/32

AF50-13/32





27/64

AF100-27/64

AF75-27/64

AF50-27/64





7/16

AF100-7/16

AF75-7/16

AF50-7/16





29/64

AF100-29/64

AF75-29/64

AF50-29/64





15/32

AF100-15/32

AF75-15/32

AF50-15/32





31/64

AF100-31/64

AF75-31/64

AF50-31/64





1/2

AF100-1/2

AF75-1/2

AF50-1/2





33/64

AF100-33/64

AF75-33/64







17/32

AF100-17/32

AF75-17/32







35/64

AF100-35/64

AF75-35/64







9/16

AF100-9/16

AF75-9/16







37/64

AF100-37/64

AF75-37/64







19/32

AF100-19/32

AF75-19/32







39/64

AF100-39/64

AF75-39/64







5/8

AF100-5/8

AF75-5/8







41/64

AF100-41/64

AF75-41/64







21/32

AF100-21/32

AF75-21/32







43/64

AF100-43/64

AF75-43/64







11/16

AF100-11/16

AF75-11/16







45/64

AF100-45/64

AF75-45/64







23/32

AF100-23/32

AF75-23/32







47/64

AF100-47/64

AF75-47/64







3/4

AF100-3/4

AF75-3/4







49/64

AF100-49/64

AF75-49/64







25/32

AF100-25/32

AF75-25/32







51/64

AF100-51/64









13/16

AF100-13/16









53/64

AF100-53/64









27/32

AF100-27/32









55/64

AF100-55/64









7/8

AF100-7/8









57/64

AF100-57/64









29/32

AF100-29/32









59/64

AF100-59/64









15/16

AF100-15/16









61/64

AF100-61/64









31/32

AF100-31/32









63/64

AF100-63/64









1

AF100-1










Collet Sets

 Cat. No.

Collet

Series

 Contents of Collets Sets

AF25-SET

AF25

12 COLLETS-1/16 TO 1/4 BY 1/64 INCREMENTS

AF38-SET

AF38

20 COLLETS-1/16 TO 3/8 BY 1/64 INCREMENTS

AF50-SET

AF50

25 COLLETS-7/64 TO 1/2 BY 1/64 INCREMENTS

AF75-1SET

AF75

42 COLLETS-7/64 TO 3/4 BY 1/64 INCREMENTS

AF75-2SET

AF75

21 COLLETS-1/8 TO 3/4 BY 1/32 INCREMENTS

AF75-3SET

AF75

11 COLLETS-1/8 TO 3/4 BY 1/16 INCREMENTS

AF100-1SET

AF100

51 COLLETS-7/32 TO 1" BY 1/64 INCREMENTS

AF100-2SET

AF100

26 COLLETS-7/32 TO 1" BY 1/32 INCREMENTS

AF100-3SET

AF100

13 COLLETS-1/4 TO 1" BY 1/16 INCREMENTS


*ACURA-FLEX IS A REGISTERED TRADEMARK OF UNIVERSAL ENGINEERING.
