Automotive Threaded Shank Collet Chucks



Automotive Threaded Shank Collet Chucks

  • Unique, adjustable stop screw allows drills to be preset and provides through-coolant capability.
  • Erickson double-angle collets collapse 1/32" and can grip on back taper and margins of drills to allow for maximum feed rates and more accurate holes.

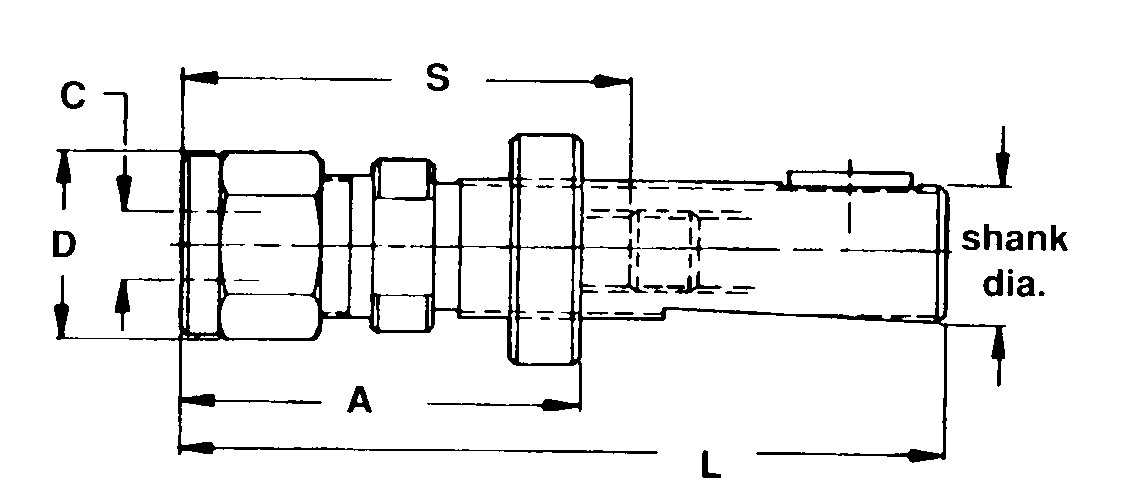

SHANK

SIZE

C

CAPACITY

COLLET

SERIES

 L

 D

A

MIN.

S

MIN/MAX

CATALOG

NUMBER

1/2-16

5/8-16



1/64-1/4

1/64-1/4

1/32-3/8

300DA

300DA

200DA

4.16

4.16

4.67

0.79

0.79

1.15

1.53

1.53

2.06

1.50/3.81

1.50/3.81

1.62/4.18

AS050DA308416

AS062DA308416

AS062DA208469

3/4-12





1/64-1/4

1/32-3/8

1/4-9/16

300DA

200DA

100DA

4.16

4.31

4.88

0.79

1.15

1.42

1.53

1.69

2.25

1.50/3.81

1.62/3.81

1.81/4.38

AS075DA308416

AS075DA208431

AS075DA108488

7/8-12



1/32-3/8

1/4-9/16

200DA

100DA

4.94

5.50

1.15

1.42

1.69

2.25

1.62/4.43

1.75/4.87

AS088DA208494

AS088DA108550

1 - 12





1/64-1/4

1/4-9/16

1/4-3/4

300DA

100DA

180DA

4.78

5.19

6.00

0.79

1.42

1.73

1.53

1.94

2.75

1.50/4.38

1.94/4.50

2.12/5.19

AS100DA308478

AS100DA108519

AS100DA188600

1-1/16-12







1/64-1/4

1/32-3/8

1/4-9/16

1/4-3/4

300DA

200DA

100DA

180DA

4.78

4.94

5.19

6.00

0.79

1.15

1.42

1.73

1.53

1.69

1.94

2.75

1.50/4.38

1.62/4.37

1.94/4.56

2.12/5.18

AS106DA308478

AS106DA208494

AS106DA108519

AS106DA188600

1-1/4-12

1/4-3/4

180DA

6.25

1.73

2.00

1.94/5.56

AS125DA188625

1-3/8-12





1/4-9/16

1/4-3/4

3/8-1

100DA

180DA

400DA

6.19

6.25

7.25

1.42

1.73

2.50

1.94

2.00

3.00

1.94/5.50

1.94/5.56

2.38/6.69

AS138DA108619

AS138DA188625

AS138DA408725

1-7/8-12

3/8-1

400DA

7.69

2.50

2.43

2.12/6.75

AS188DA408769
