Full Floating Holders





COLLETS COLLAPSE TO COVER A 1/32" RANGE.

HIGHEST QUALITY MATERIALS ARE USED THROUGHOUT.

RECOMMENDED FOR REAMING
  • FLOATS APPROXIMATELY .010" OFF CENTER (.020" TOTAL) TO COMPENSATE FOR BOTH PARALLEL AND ANGULAR MISALIGNMENTS.
  • IDEAL FOR REAMING OPERATIONS ON SINGLE AND MULTI-SPINDLE AUTOMATICS AND TURRET LATHES.
  • HOLLOW DESIGN ALLOWS COOLANT THROUGH AND TOOL OVERHAND TO BE SHORTENED.
  • RECOMMENDED FOR STATIONARY APPLICATIONS.
  • ADJUSTING NUT VARIES SPRING TENSION TO COMPENSATE FOR CUTTER WEIGHT.

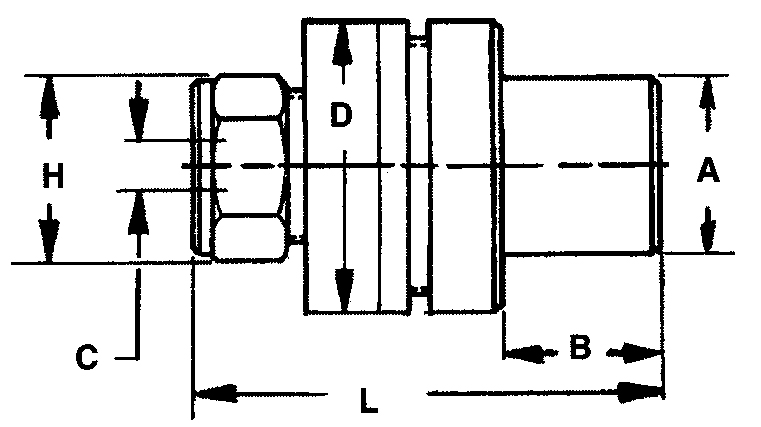

C COLLET     D   H
CAPACITY SERIES A B DIA. L HEX CAT. NO.
3/64-25/64 200 3/4 4" 1-7/8 6.44 7/8 SS075FC208644
3/64-3/4 180 3/4 4" 2-3/8 6.88 1-1/2 SS075FC188688
3/64-9/16 100 1" 4" 2-1/16 6.59 1-1/8 SS100FC108659
3/64-3/4 180 1" 4" 2-3/8 6.88 1-1/2 SS100FC188688
3/64-3/4 180 1-1/4 6" 2-3/8 8.88 1-1/2 SS125FC188888
3/64-9/16 100 1-1/2 6" 2-1/16 8.59 1-1/8 SS150FC108859
3/64-3/4 180 1-1/2 4" 2-3/8 6.88 1-1/2 SS150FC188688
3/64-3/4 180 1-1/2 6" 2-3/8 8.88 1-1/2 SS150FC188888
3/32-1" 400 1-1/2 6" 3-3/4 9.88 2-1/4 SS150FC408988
3/64-3/4 180 1-3/4 6" 2-3/8 8.88 1-1/2 SS175FC188888
3/64-3/4 180 2" 6" 2-3/8 8.88 1-1/2 SS200FC188888
3/32-1" 400 2" 6" 3-3/4 9.88 2-1/4 SS200FC408988
