Morse Taper Shank Floating (.020+) Reamer Holder

Morse Taper Shank ER Collet Floating Reamer Holder with Coolant Port

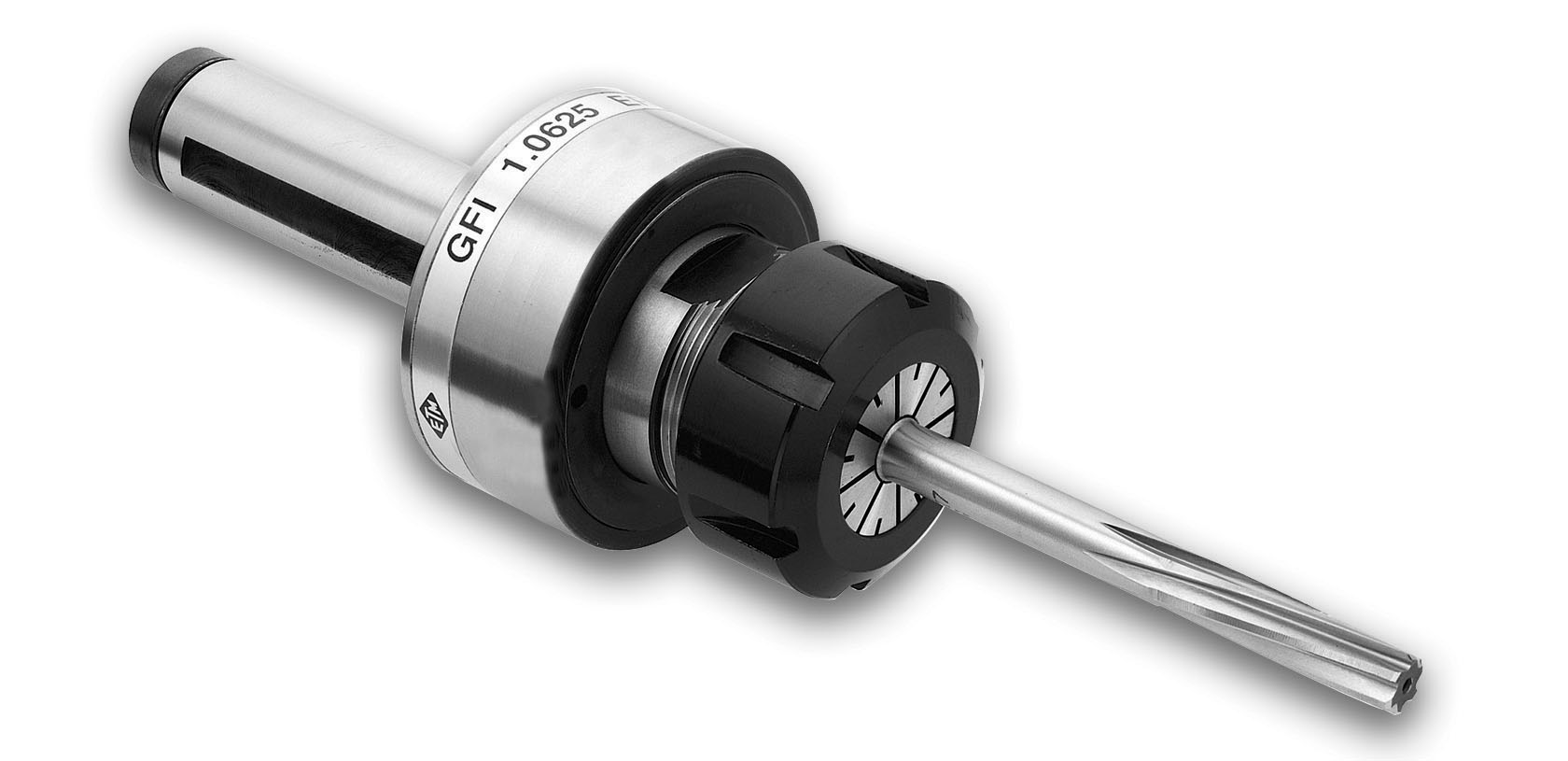

Morse Taper Shank ER Collet Floating Reamer Holder with Coolant Port

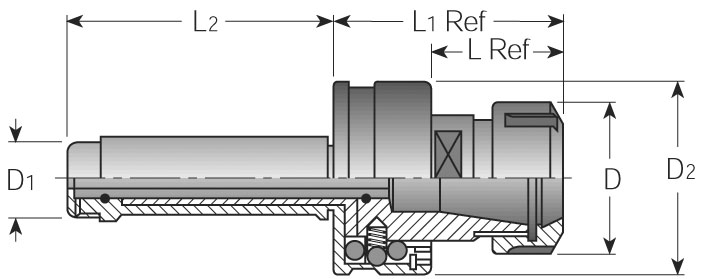

Morse Taper Shank ER Collet Floating Reamer Holder with Coolant Port - Diagram

  SHANK COLLET  COLLET  RADIAL
PART NO. TAPER SERIES CAPACITY FLOAT L L1 L2 D D2 G
MT2FRER20 #2 ER20 1/16 TO 1/2 .040 1.358 2.382 2.520 1.339 1.969 3/8"- 16
MT3FRER32 #3 ER32 3/32 TO 3/4 .060 1.807 3.028 3.386 1.968 2.559 1/2"- 13
