TG Single Angle Collet Chucks





TREMENDOUS GRIP (TG) COLLET CHUCKS PROVIDE THE GRIP AND ACCURACY NECESSARY FOR THE DEMANDS OF TODAY'S MACHINE TOOLS BECAUSE OF ITS SLOW COLLET TAPER AND BEARING-STYLE NOSEPIECE.

COLLETS COLLAPSE 1/64" AND CAN GRIP ON BACK TAPER AND MARGINS OF DRILLS TO ALLOW FOR MAXIMUM FEED RATES AND MORE ACCURATE HOLES

THE VERSATILITY AND GRIPPING POWER OF THE TG CHUCK IS SUPERIOR TO COMPETITIVE DESIGNS.

RECOMMENDED FOR DRILLING, END MILLING AND SOLID TAPPING

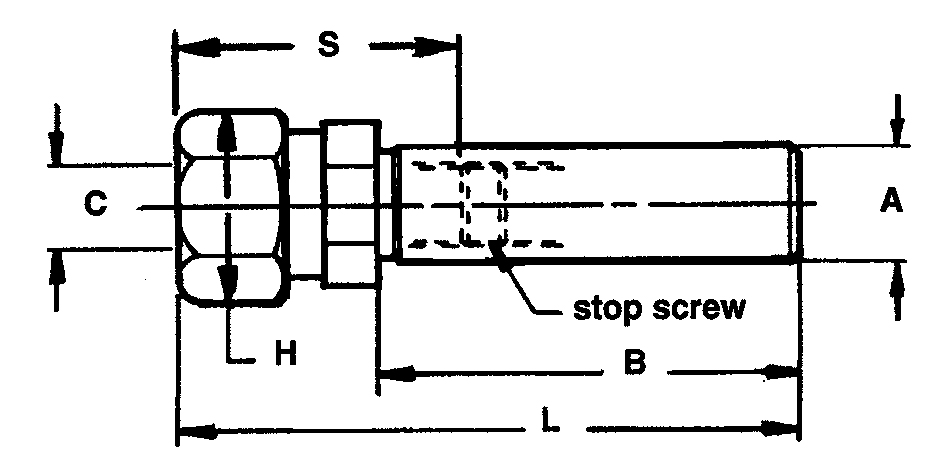

C

CAPACITY

COLLET

SERIES

 A

 B

 L

H

HEX

S

MIN/MAX

 CAT. NO.

LOCKNUT

3/64-17/32

50TG

1"

5.5

7.19

1-1/16

1.75/6.5

SS100TG050719

NPA050

3/64-17/32

50TG

1"

5.5

6.98

1.5"

1.54/6.3

SS100TG050698G

NPA075

1/16-3/4

75TG

1-1/4

6"

8.50

1-7/8

2.1/7.6

SS125TG075850

NPA100

1/16-3/4

75TG

1-1/2

6"

7.75

1-7/8

2.1/7.1

SS150TG075775

NPA075

3/32-1"

100TG

1-1/2

6"

9.25

2-1/4

2.6/8.6

SS150TG100925

NPA100

3/32-1"

100TG

1-3/4

6"

8.19

2-1/4

2.9/7.5

SS175TG100819

NPA100

3/32-1"

100TG

2"

6"

8.19

2-1/4

2.6/7.5

SS200TG100819

NPA100
