Extra Long & Short Straight Shank Collet Chucks


Extra Long Straight Shank Collet Chuck Extensions



EXTRA LONG STRAIGHT SHANK COLLET CHUCK EXTENSIONS
SHANK   SHANK COLLET
DIA. OAL TYPE SERIES CAPACITY CAT. NO.
1/2" 8" SOLID 300DA 1/32 TO 1/4 SS050DA304800S
1/2" 9" SOLID 300DA 1/32 TO 1/4 SS050DA304900S
1/2" 10" SOLID 300DA 1/32 TO 1/4 SS050DA3041000S
3/4" 14" SOLID 200DA 3/64 TO 25/64 SS075DA2041400S
1" 9.5" THRU HOLE 100DA 3/64 TO 9/16" SS100DA104950
1" 10.5" SOLID 100DA 3/64 TO 9/16" SS100DA1041050S
1" 14" SOLID 100DA 3/64 TO 9/16" SS100DA1041400S

EXTENSIONS WITH THRU HOLE INCLUDE BACKUP SCREW.
LONGER SIZES CAN BE QUOTED.
SHANKS ON THESE CHUCKS DO NOT HAVE A FLAT ON THEM.

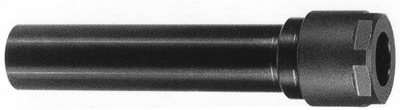

Short (Stubby) Straight Shank DA Collet Chucks




SHORT (STUBBY) STRAIGHT SHANK DA COLLET CHUCKS

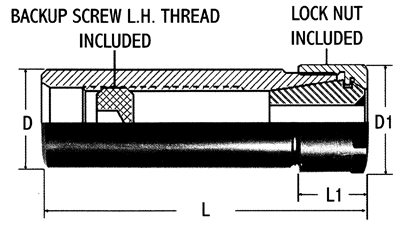

SHANK OAL     WRENCH COLLET     COLLET NUT
DIA. "L" "L1" "D1" SIZE SERIES CAPACITY CATALOG NO.* CAT. NO.
1/2" 3.60" .70" .56" 1/2" 300DA 1/32 TO 1/4 SS050DA308360 NP300C
5/8" 3.75" .70" .56" 1/2" 300DA 1/32 TO 1/4 SS062DA308375 NP300C
5/8" 3.75" .71" .75" 11/16" 200DA 3/64 TO 25/64 SS062DA208375 NP200SC
3/4" 3.80" .71" .81" 3/4" 200DA 3/64 TO 25/64 SS075DA208380 NP200S
1" 4" .90" 1.06" 7/8" 100DA 3/64 TO 9/16 SS100DA108400 NP100C
1" 6.20" .87" 1.56" 1-3/8" 180DA 3/64 TO 3/4 SS100DA188620** NP180C
1-1/4" 6.20" .87" 1.56" 1-3/8" 180DA 3/64 TO 3/4 SS125DA188620 NP180C
1-1/2" 6.20" .87" 1.56" 1-3/8" 180DA 3/64 TO 3/4 SS150DA188620 NP180C
1-3/4" 6.20" .87" 1.56" 1-3/8' 180DA 3/64 TO 3/4 SS175DA188620 NP180C

* INCLUDES COLLET NUT
** THE SHANK ON THIS HOLDER DOES NOT HAVE A FLAT ON IT - ALL OTHER DA CHUCKS DO

SHORT (STUBBY) STRAIGHT SHANK ER COLLET CHUCKS
SHANK OAL     WRENCH COLLET     COLLET NUT
DIA. "L" "L1" "D1" SIZE SERIES CAPACITY CATALOG NO.* CAT. NO.
1/2" 3.50" .47" .62" 9/16" ER11 .039 TO .276 SS050ER11350 ER11MC
5/8" 3.50" .47" .62" 9/16" ER11 .039 TO .276 SS062ER11350 ER11MC
5/8"  3.65" .68" .86" 13/16" ER16 .039 TO .394 SS062ER16365 ER16MC
3/4" 3.65" .68" .86" 13/16" ER16 .039 TO .394 SS075ER16365 ER16MC
1" 3.75" .78" 1.10" 1" ER20 .062 TO .512 SS100ER20375 ER20MC
1" 6.10" .84" 1.36" 1-1/4" ER25 .062 TO .630 SS100ER25610 ER25MC
1" 6.20" .95" 1.61" 1-1/2" ER32 .094 TO .787 SS100ER32620 ER32MC
1-1/4" 6.10" .84" 1.36" 1-1/4" ER25 .062 TO .630 SS125ER25610 ER25MC
1-1/4" 6.20" .95" 1.61" 1-1/2" ER32 .094 TO .787 SS125ER32620 ER32MC
1-1/2" 6.20" .95" 1.61" 1-1/2" ER32 .094 TO .787 SS150ER32620 ER32MC
* INCLUDES COLLET NUT.
SHANKS ON THESE ER CHUCKS DO NOT HAVE A FLAT ON THEM.
