Indexable Inserts for Circular and Straight Shank Cut-Off Tool Holders


Indexable Inserts for Circular and Straight Shank Cut-Off Tool Holders

Indexable Inserts for Circular and Straight Shank Cut-Off Tool Holders

QUICK CHANGE - JUST ROTATE INSERT WITHOUT REMOVING HOLDER FROM MACHINE (4 USABLE EDGES)

NEVER LOSES CENTER SETTING - EVEN WHEN CHANGING FROM ONE SIZE CUT-OFF INSERT TO ANOTHER

FREE CUTTING - INSERTS GROUND WITH BOTH FRONT TO BACK AND TOP TO BOTTOM CLEARANCE - ELIMINATES SIDE RUBBING AND DRAGGING

LONGER LIFE - MICRO-GRAIN CARBIDE OUTPERFORMS CONVENTIONAL CARBIDE GRADES

3/4" Square 8° Cutoff Inserts

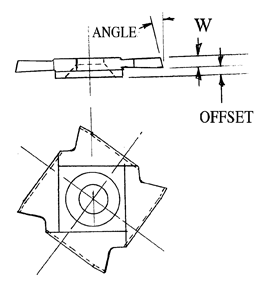

WIDTH MAX DIA STD MICRO CARBIDE MICRO CARBIDE INSERT
C/O C/O OFFSET INSERT CAT. NO W/ CHIP BREAKER CAT#
1/32" 0.187 3/32" DAV-CIN-2 DAV-CIN-2-CB
1/32" 0.187 0 DAV-CIN-2R DAV-CIN-2R-CB
3/64" 0.312 5/64" DAV-CIN-3 DAV-CIN-3-CB
3/64" 0.312 0 DAV-CIN-3R DAV-CIN-3R-CB
1/16" 0.500 1/16" DAV-CIN-4 DAV-CIN-4-CB
1/16" 0.500 0 DAV-CIN-4R DAV-CIN-4R-CB
5/64" 0.562 3/64" DAV-CIN-5 DAV-CIN-5-CB
5/64" 0.562 0 DAV-CIN-5R DAV-CIN-5R-CB
3/32" 0.562 1/32" DAV-CIN-6 DAV-CIN-6-CB
3/32" 0.562 0 DAV-CIN-6R DAV-CIN-6R-CB
1/8" 0.562 0 DAV-CIN-8 DAV-CIN-8-CB


3/4" Square 0° Grooving Inserts

WIDTH MAX DIA STD MICRO CARBIDE MICRO CARBIDE INSERT
C/O C/O OFFSET INSERT CAT. NO W/ CHIP BREAKER CAT#
1/32" 0.187 3/32" DAV-CIN-2-0 DAV-CIN-2-0-CB
1/32" 0.187 0 DAV-CIN-2R-0 DAV-CIN-2R-0-CB
3/64" 0.312 5/64" DAV-CIN-3-0 DAV-CIN-3-0-CB
3/64" 0.312 0 DAV-CIN-3R-0 DAV-CIN-3R-0-CB
1/16" 0.500 1/16" DAV-CIN-4-0 DAV-CIN-4-0-CB
1/16" 0.500 0 DAV-CIN-4R-0 DAV-CIN-4R-0-CB
5/64" 0.562 3/64" DAV-CIN-5-0 DAV-CIN-5-0-CB
5/64" 0.562 0 DAV-CIN-5R-0 DAV-CIN-5R-0-CB
3/32" 0.562 1/32" DAV-CIN-6-0 DAV-CIN-6-0-CB
3/32" 0.562 0 DAV-CIN-6R-0 DAV-CIN-6R-0-CB
1/8" 0.562 0 DAV-CIN-8-0 DAV-CIN-8-0-CB


1" Square 8° Cutoff Inserts

WIDTH MAX DIA STD MICRO CARBIDE MICRO CARBIDE INSERT
C/O C/O OFFSET INSERT CAT. NO W/ CHIP BREAKER CAT#
1/16" 0.844 1/16" 2EX-CIN-4R 2EX-CIN-4-CB
1/16" 0.844 0 2EX-CIN-4R 2EX-CIN-4R-CB
5/64" 0.844 3/64" 2EX-CIN-5 2EX-CIN-5-CB
5/64" 0.844 0 2EX-CIN-5R 2EX-CIN-5R-CB
3/32" 0.844 1/32" 2EX-CIN-6 2EX-CIN-6-CB
3/32" 0.844 0 2EX-CIN-6R 2EX-CIN-6R-CB
1/8" 0.844 0 2EX-CIN-8 2EX-CIN-8-CB


FOR COATED INSERTS ADD THE FOLLOWING SUFFIXES TO THE PART NUMBERS LISTED:
TIN FOR TITANIUM NITRIDE COATED
TIALN FOR TITANIUM ALUMINUM NITRIDE COATED
TICN FOR TITANIUM CARBO-NITRIDE COATED

PART# DAV-CIN-SCR FOR SCREWS FOR 3/4" SQ INSERTS
PART# DAV-CIN-SCR-ISO FOR SCREWS FOR 1" SQ INSERTS
PART# DAV-CIN-WR FOR INSERT WRENCH

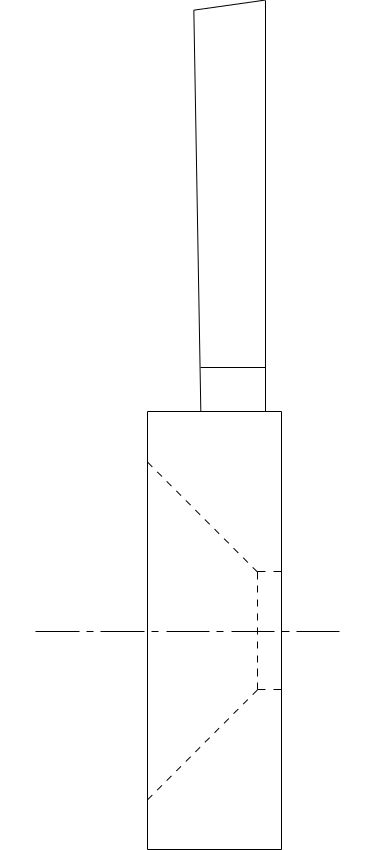

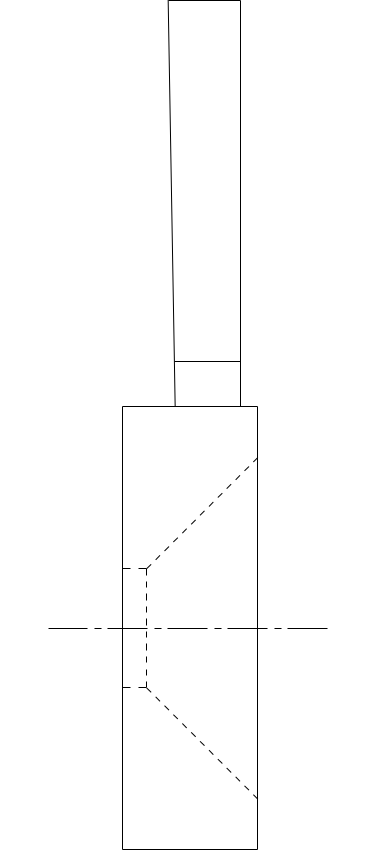

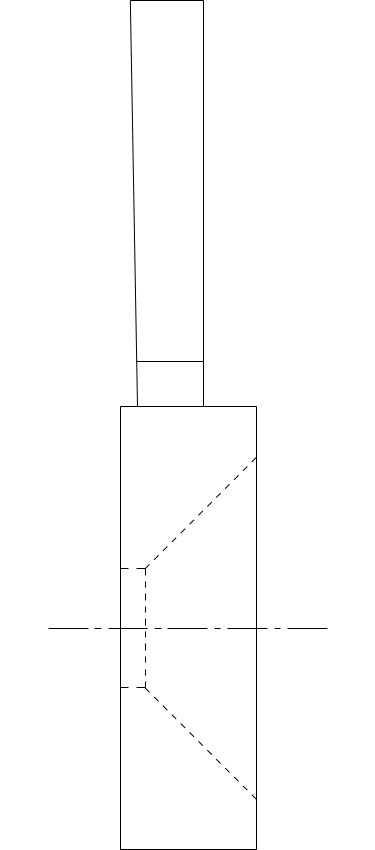

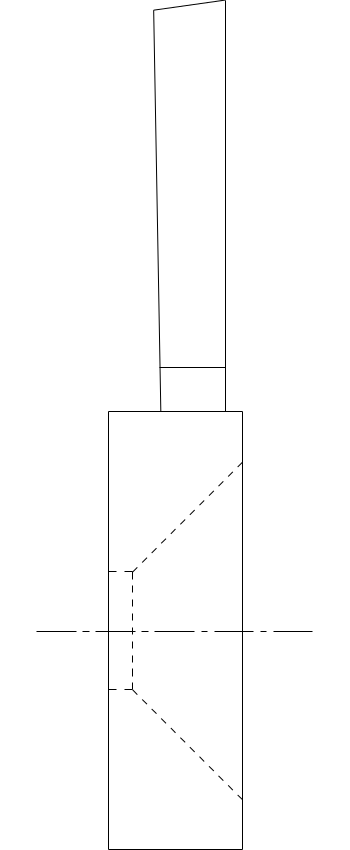

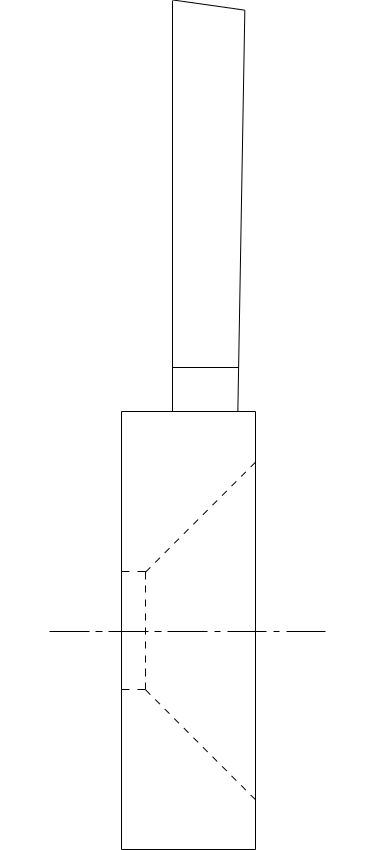

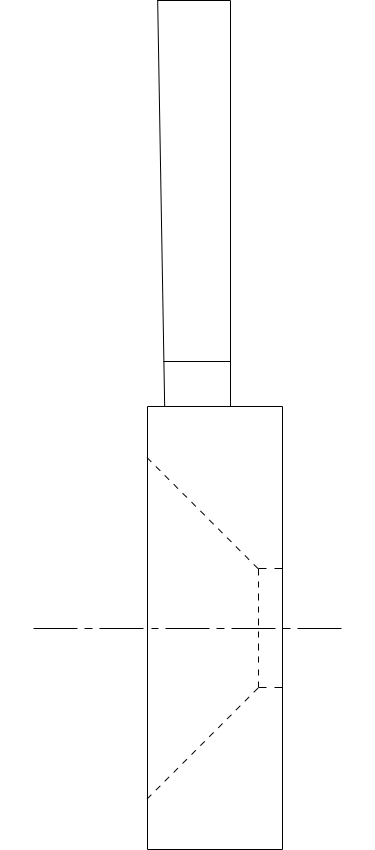

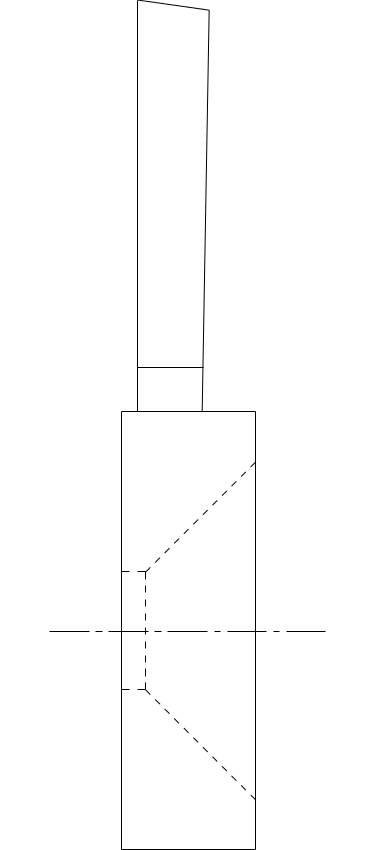

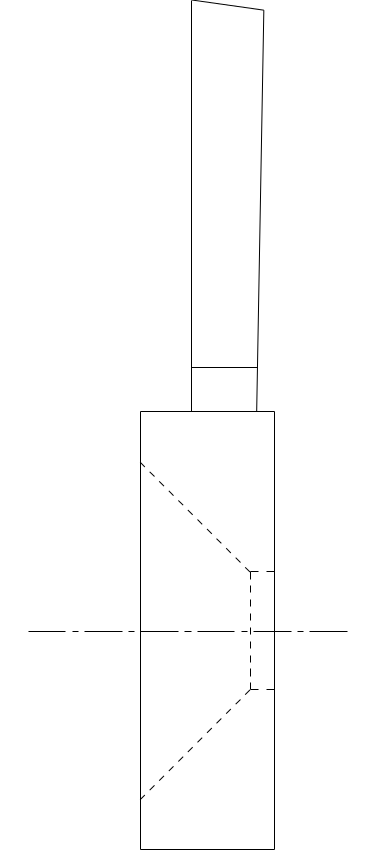

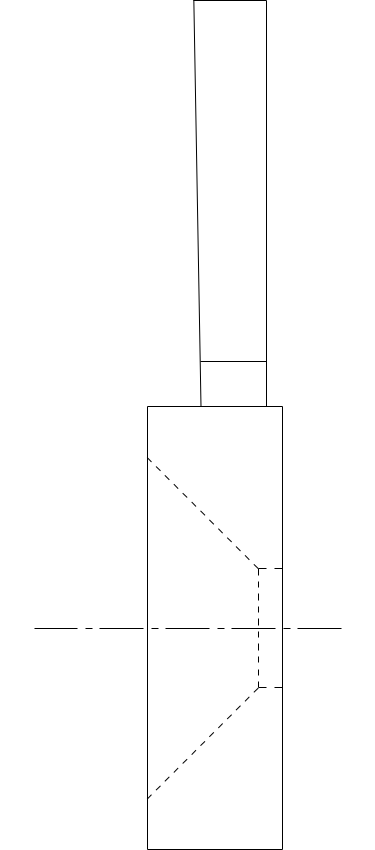

AVAILABLE INSERT STYLES

ADD THE SUFFIX LISTED BELOW TO THE ABOVE CATALOG NUMBERS

CLOCKWISE SPINDLE

INSERT STYLE INSERT STYLE INSERT STYLE INSERT STYLE
-RA R-RA -RAC -LH

COUNTERCLOCKWISE SPINDLE

INSERT STYLE INSERT STYLE INSERT STYLE INSERT STYLE
R
(Listed Above)
STANDARD
(Listed Above)
RC C




INSERT STYLE INSERT STYLE
-8-0 -0-0
INSERT STYLE INSERT STYLE

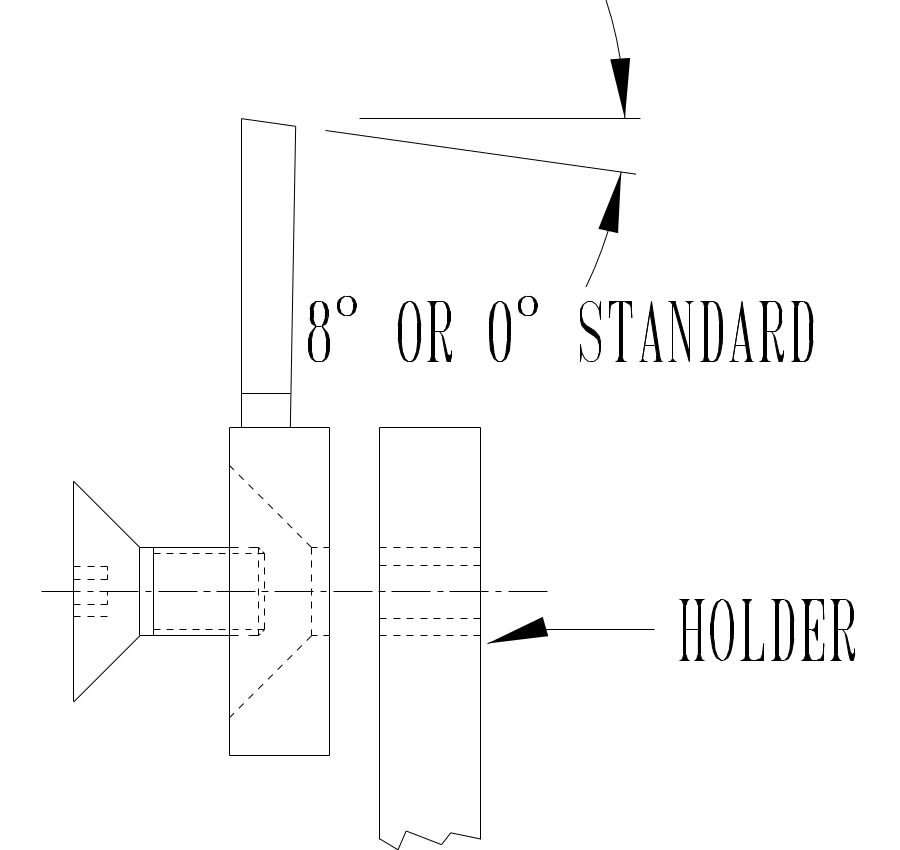

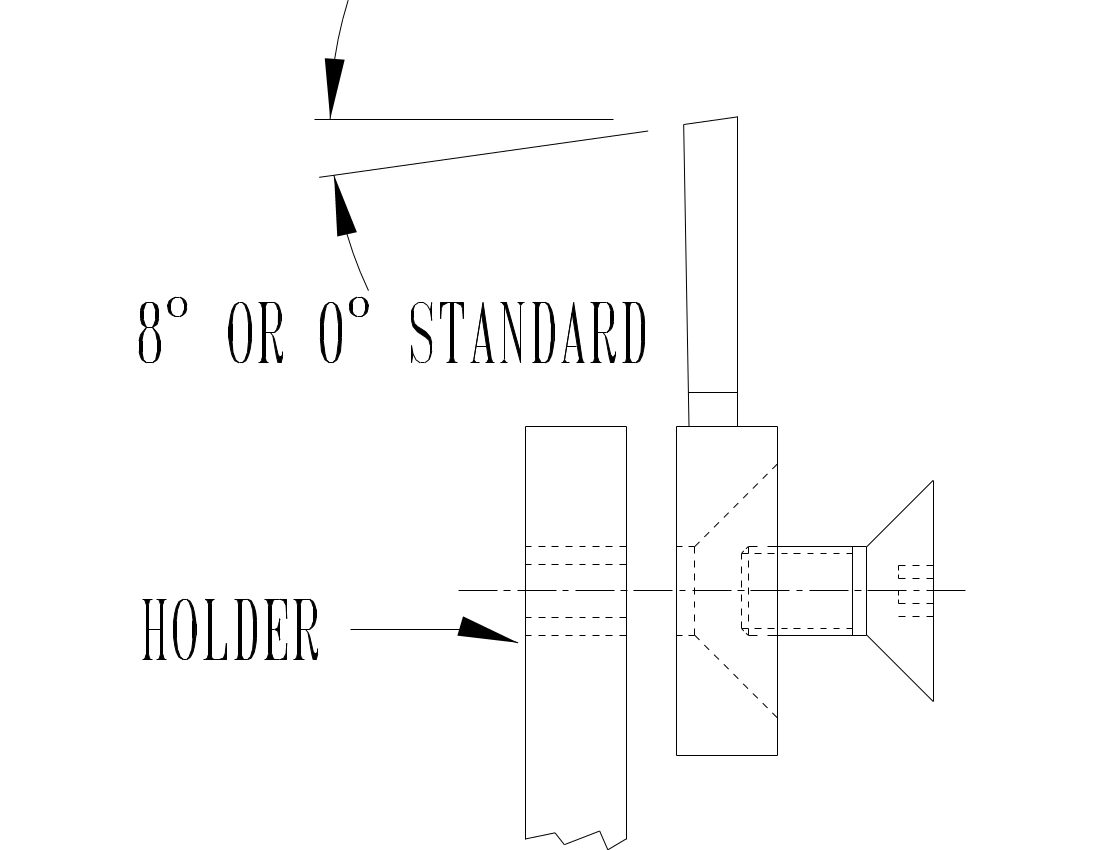

Standard Insert Shown Style R Insert Shown
