Insert Tools Posts for Davenport Machines

1st Position Shown with Coolant Attachment

1st Position Shown with Coolant Attachment

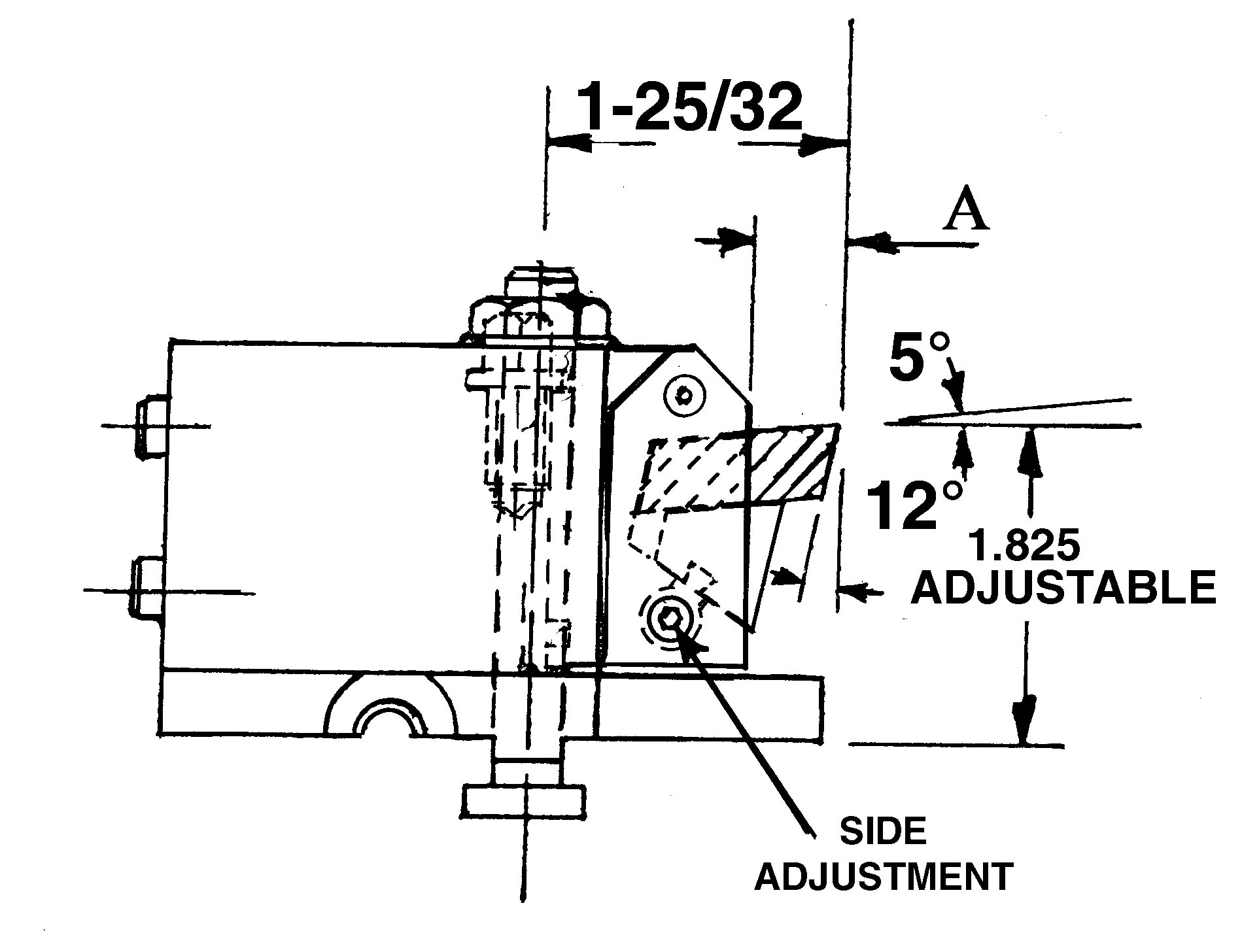

1st Position Shown with Coolant Attachment - Diagram

With Side Adjusting Insert Clamp (Patent No. 5,848,562)
  • NOW AVAILABLE WITH COOLANT ATTACHMENT
  • Increases tool life and improves part finish

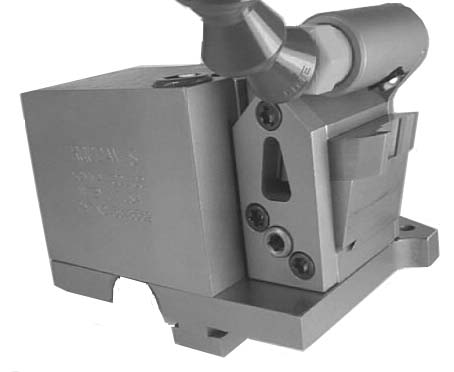

Complete Tool Post 1st Position






CAT. NO.

W/COOLANT

ATTACHMENT

CAT. NO.



INSERT

SIZE

A

COOLANT

ATTACHMENT

ONLY

RQCDAV-S
RQCDAV-W-S
RQCDAV-N-S
RQCDAV-NN-S
RQCDAV-S-CS
RQCDAV-W-S-CS
RQCDAV-N-S-CS
RQCDAV-NN-S-CS
1-1/4W X 3/8
1-3/4W X 3/8
1-1/8W X 5/16
3/4W X 5/16

1/2"
1/2"
5/16'
5/16"

RQCDAV-CA
RQCDAV-CA
RQC5/16-CA
RQC5/16-CA

Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)


2nd Position

2nd Position

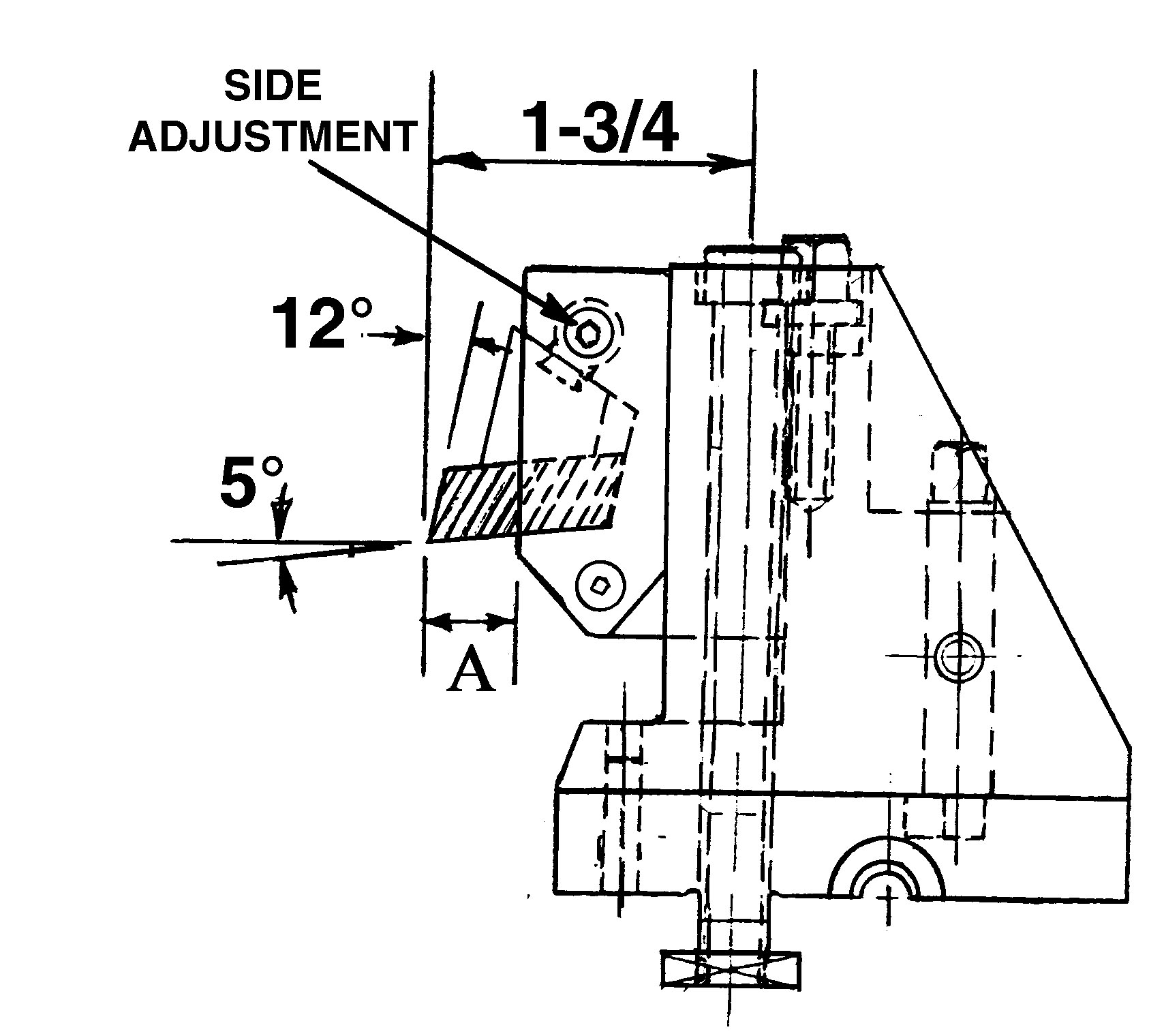

2nd Position - Diagram

Complete Tool Post 2nd Position






CAT. NO.

W/COOLANT

ATTACHMENT

CAT. NO.



INSERT

SIZE

A

COOLANT

ATTACHMENT

ONLY

RQCDVB-S
RQCDVB-W-S
RQCDVB-N-S
RQCDVB-NN-S
RQCDVB-S-CS
RQCDVB-W-S-CS
RQCDVB-N-S-CS
RQCDVB-NN-S-CS

1-1/4W X 3/8

1-3/4W X 3/8

1-1/8 X 5/16

3/4W X 5/16

1/2"

1/2"

5/16'

5/16"

RQCDAV-CA
RQCDAV-CA
RQC5/16-CA
RQC5/16-CA

Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)


Replacement Side Adjusting Insert Slides


REPLACEMENT
SIDE ADJUSTING
INSERT SLIDES
ONLY - TO FIT
EXISTING RQCDAV &
RQCDVB HOLDERS

CAT. NO.
W/COOLANT
ATTACHMENT
CAT. NO.
FITS
INSERT
RQCDV-SA

RQCDV-SA-CS

RQCDAV



RQCDVB
1-1/4 WIDE X 3/8
RQCDV-W-SA

RQCDV-W-SA-CS

1-3/4 WIDE X 3/8
RQCDV-N-SA



RQCDV-NN-SA

RQCDV-N-SA-CS



RQCDV-NN-SA-CS
 1-1/8 WIDE X 5/16



3/4 WIDE X 5/16

Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)
Insert Dovetail Form Tool Holders

With coolant attachment.

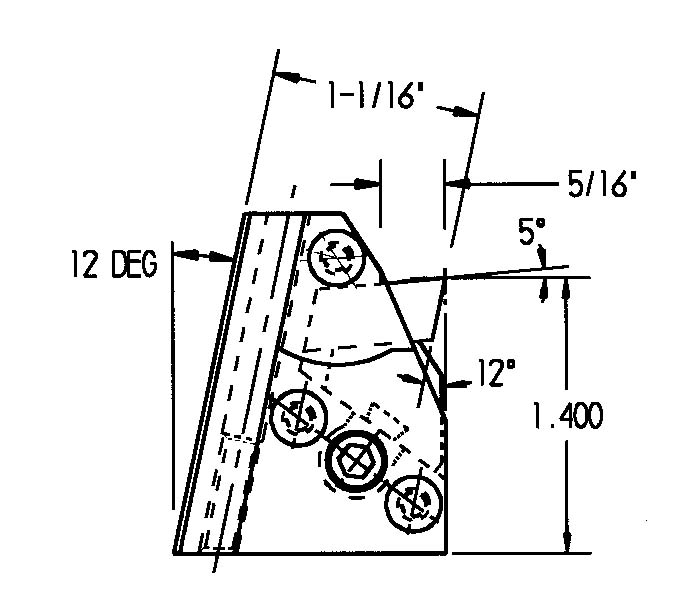

Insert Dovetail Form Tool Holders - Diagram

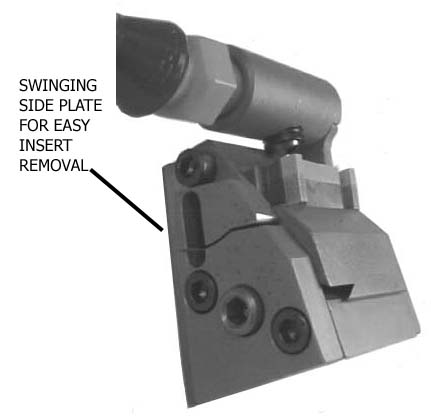

Insert Dovetail Form Tool Holders

With Side Adjusting Insert Clamp, Fit Davenport Cross Slide Tool Holders (Patent No. 5,848,562)
  • Replaces solid HSS form tools and brazed on carbide form tools.
DOVETAIL
SIZE
INSERT
SIZE

CAT. NO.
W/COOLANT
ATTACHMENT
5/8

1-1/8 WIDE X
 5/16 THICK
RQCDAV-DT

RQCDAV-DT-CS


COOLANT ATTACHMENT ONLY          CAT. NO.  RQCDAV-DT-CA


Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)


Insert Circular Tool Holders for Davenport Machines

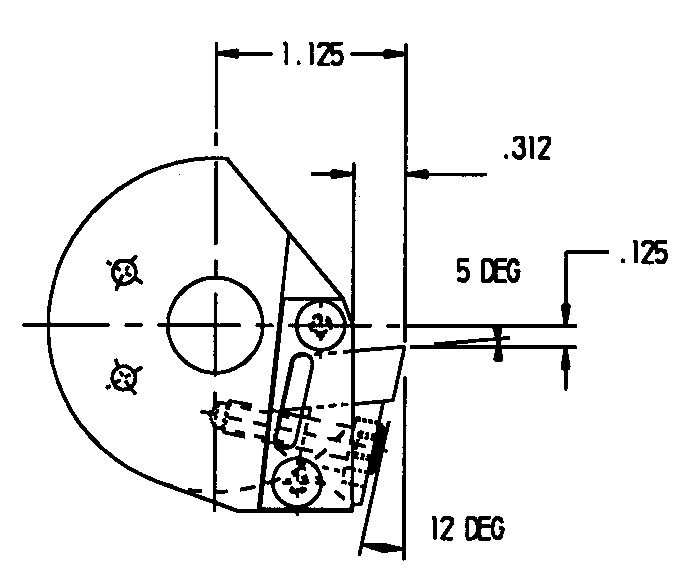

Insert Circular Tool Holders for Davenport Machines - Diagram

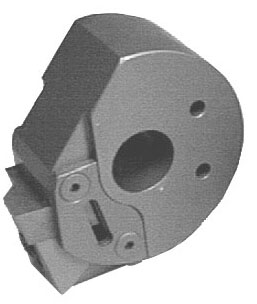

Insert Circular Tool Holders for Davenport Machines

(Patent No. 5,345,846)
  • Machine downtime less than one minute for insert resharpenings or replacement.
  • Replaces conventional circular form tools.


DIA.

CENTER
HOLE

INSERT
SIZE

CAT. NO.
W/COOLANT
ATTACHMENT
CAT. NO.
2"
2"
2"
9/16" DIA.
9/16" DIA.
9/16" DIA.
3/8 X 5/16*
3/4 X 5/16
1-1/8 X 5/16
RQCDAV-C-N
RQCDAV-C
RQCDAV-C-W
RQCDAV-C-N-CS
RQCDAV-C-CS
RQCDAV-C-W-CS

COOLANT ATTACHMENT ONLY                         CAT. NO.  RQCDAV-C-CA


Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)
