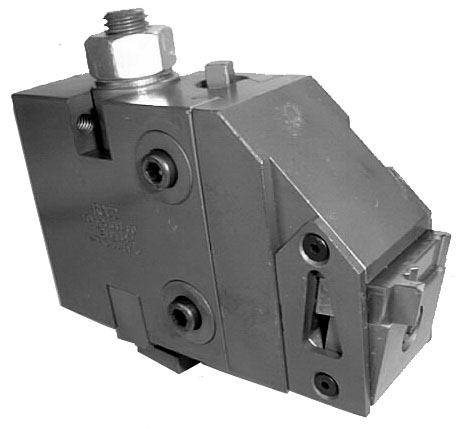

Tool Posts for Brown & Sharpe Machines
(Patent No. 5,345,846)
- Replaces circular and dovetail form tools
- Can be used on front slide or rear slide
- For right hand or left hand operation
- Flange screw adjustment for center setting of insert holder slide

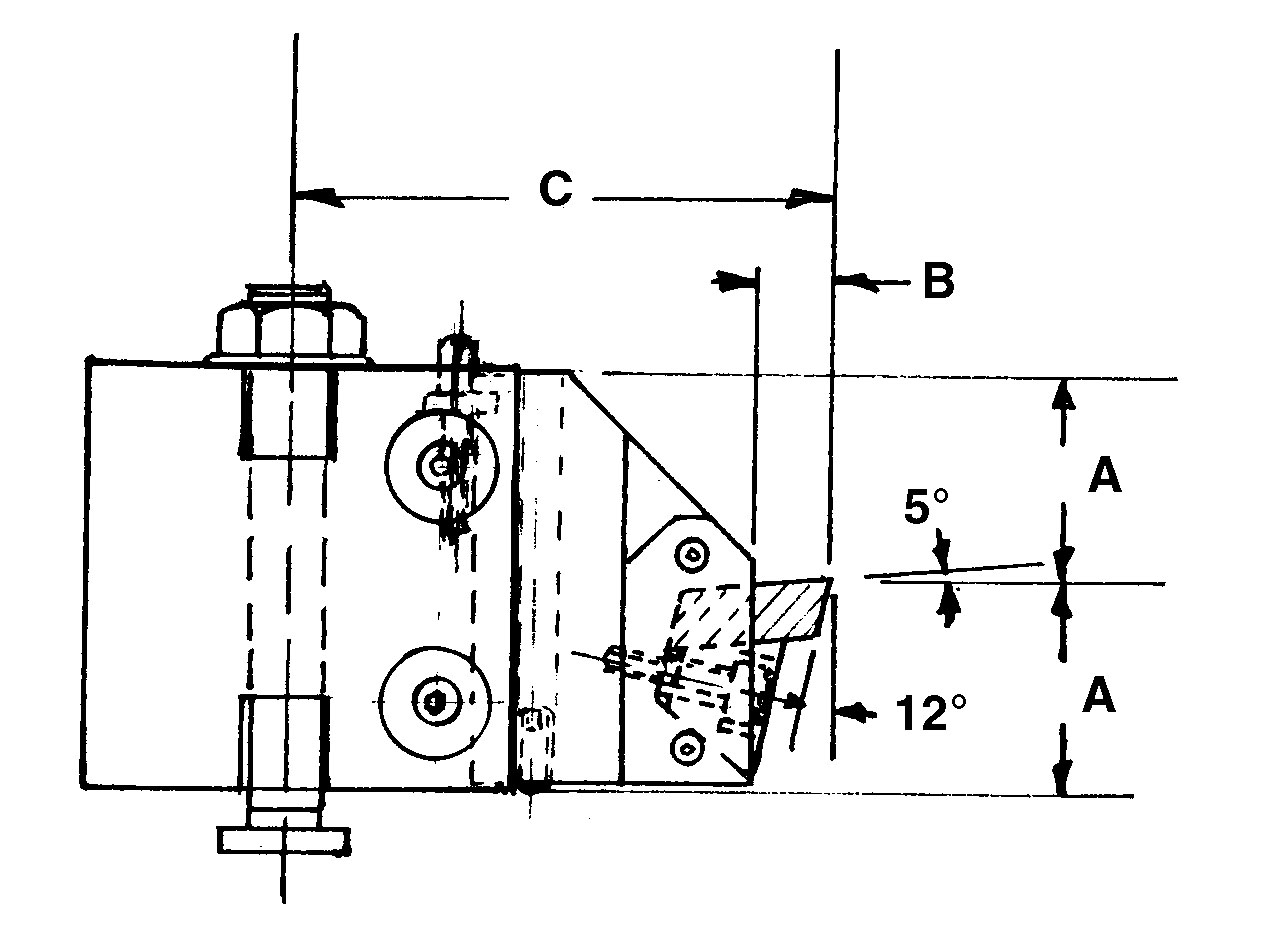

| CAT. NO. |
W/COOLANT |
A | B | C | INSERT SIZE |
COOLANT |
|
RQC00 |
RQC00-CS |
1" |
5/16 |
2-3/16 |
3/4
WIDE X 5/16 |
RQC5/16-CA |
|
RQC00-W |
RQC00-W-CS |
1" |
5/16 |
2-3/16 |
1-1/8
WIDE X 5/16 |
|
|
RQC0 |
RQC0-CS |
1-5/16" |
5/16 |
2-7/8 |
3/4
WIDE X 5/16 |
|
|
RQC0-W |
RQC0-W-CS |
1-5/16" |
5/16 |
2-7/8 |
1-1/8
WIDE X 5/16 |
|
|
RQC2 |
RQC2-CS |
1-7/16" |
1/2 |
3-5/8 |
1-1/4
WIDE X 3/8 |
RQC3/8-CA |
|
RQC2-1-3/4 |
RQC2-1-3/4-CS |
1-7/16" |
1/2 |
3-5/8 |
1-3/4
WIDE X 3/8 |
|
|
RQC2-3/4 |
RQC2-3/4-CS |
1-7/16" |
5/16 |
3-5/8 |
3/4
WIDE X 5/16 |
RQC5/16-CA |
|
RQC2-1-1/8 |
RQC2-1-1/8-CS |
1-7/16" |
5/16 |
3-5/8 |
1-1/8
WIDE X 5/16 |
Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)
(Note the appropriate size of insert needed for chosen holder.)
Complete Insert Slides Only
CONVERT THE INSERT WIDTH SIZE OF YOUR EXISTING HOLDER WITH INTERCHANGEABLE INSERT SLIDES (Note the appropriate size of insert needed for chosen holder.)|
CAT. NO. |
W/COOLANT ATTACHMENT |
FITS |
INSERT SIZE |
COOLANT ATTACHMENT ONLY |
|
|
RQC00-.75-SL |
RQC00-.75-SL-CS |
RQC00 RQC00-W RQC16/20-A RQC16/20-A-N |
RQC0 RQC0-W RQC16/20-B RQC16/20-B-N |
3/4
WIDE X 5/16 |
RQC5/16-CA |
|
|
|
|
|
||
|
RQC00-375-SL |
RQC00-375-SL-CS |
3/8
WIDE X 5/16 |
RQC5/16-CA |
||
|
RQC00-1.125-SL |
RQC00-1.125-SL-CS |
|
|
1-1/8
WIDE X 5/16 |
RQC5/16-CA |
|
RQC2-.75-SL RQC2-1.125-SL |
RQC2-.75-SL-CS RQC2-1.125-SL-CS |
RQC2 |
RQC2-3/4 |
3/4
WIDE X 5/16 1-1/8 WIDE X 5/16 |
RQC5/16-CA |
|
RQC2-1.25-SL RQC2-1.75-SL |
RQC2-1.25-SL-CS RQC2-1.75-SL-CS |
1-1/4
WIDE X 3/8 1-3/4 WIDE X 3/8 |
RQC3/8-CA | ||
Shown with Coolant Attachment

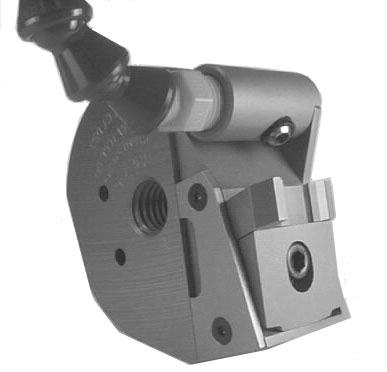

Circular Tool Holders for Brown & Sharpe Machines
(Patent No. 5,345,846)- Replaces conventional circular form tools.
- Pinholes provided both sides for right or left hand operation on B&S machines.
- Machine downtime less than one minute for insert resharpenings or replacement.
|
CAT.
NO. |
W/COOLANT ATTACHMENT |
MACH.
SIZE |
DIA. |
CENTER
HOLE |
B |
C |
INSERT
SIZE |
COOLANT ATTACHMENT ONLY |
|
RQC00-C-N RQC00-C RQC00-C-W |
RQC00-C-N-CS RQC00-C-CS RQC00-C-W-CS |
#00
B&S #00 B&S #00 B&S |
1-3/4 1-3/4 1-3/4 |
3/8-16 3/8-16 3/8-16 |
5/16 5/16 5/16 |
1/8 1/8 1/8 |
3/8
X 5/16 3/4 X 5/16 1-1/8 X 5/16 |
RQC5/16-C-CA |
|
RQC0-C RQC0-C-W |
RQC0-C-CS RQC0-C-W-CS |
#0
B&S #0 B&S |
2-1/4 2-1/4 |
1/2-13 1/2-13 |
5/16 5/16 |
5/32 5/32 |
3/4
X 5/16 1-1/8 X 5/16 |
RQC5/16-C-CA |
|
RQC2-C-N RQC2-C-NW RQC2-C-NN RQC2-C RQC2-C-W |
RQC2-C-N-CS RQC2-C-NW-CS RQC2-C-NN-CS RQC2-C-CS RQC2-C-W-CS |
#2
B&S #2 B&S #2 B&S #2 B&S #2 B&S |
3" 3" 3" 3" 3" |
5/8-11 5/8-11 5/8-11 5/8-11 5/8-11 |
5/16 5/16 5/16 1/2 1/2 |
1/4 1/4 1/4 1/4 1/4 |
3/4
X 5/16 1-1/8 X 5/16 3/8 X 5/16 1-1/4 X 3/8 1-3/4 X 3/8 |
RQC5/16-C-CA RQC5/16-C-CA RQC3/8-C-CA |
Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)
(Note the appropriate size of insert needed for chosen holder.)
