Form Tool Holders for Multiple Spindle Machines

Form Tool Holders for Multiple Spindle Machines

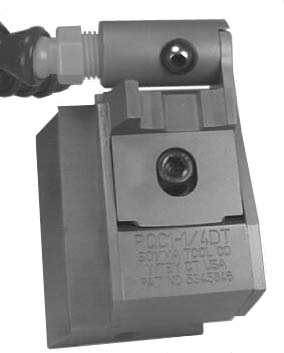

Form Tool Holders for Multiple Spindle Machines - Coolant Attachment

Coolant Attachment Style

Form Tool Holders for Multiple Spindle Machines

Form Tool Holders for Multiple Spindle Machines - Wickman Style
Wickman Style
(Patent No. 5,345,846)
  • NOW AVAILABLE WITH COOLANT ATTACHMENT
  • Increases insert life and improves part finish
  • Coolant attachment assembly available for updating existing holders.

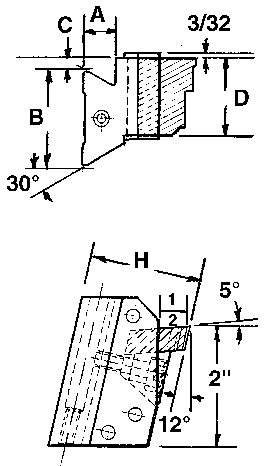

DOVETAIL
SIZE

A

B

C

INSERT
SIZE

H


CAT. NO.

W/COOLANT ATTACHMENT

CAT. NO.

FOR NATIONAL ACME MACHINES

5/8
1
1-1/4
19/64
35/64
35/64
.951
1.614
1.882
3/16
3/16
3/16
1-1/4 WIDE
X
3/8 THICK
1-1/2
1-7/8
1-7/8
RQC5/8DT
RQC1DT
RQC1-1/4DT
RQC5/8DT-CS
RQC1DT-CS
RQC1-1/4DT-CS
5/8
1
1-1/4
19/64
35/64
35/64
.951
1.614
1.882
7/16
7/16
7/16
1-3/4 WIDE
X
3/8 THICK
1-1/2
1-7/8
1-7/8
RQC5/8DT-W
RQC1DT-W
RQC1-1/4DT-W
RQC5/8DT-W-CS
RQC1DT-W-CS
RQC1-1/4DT-W-CS
5/8
1
1-1/4
19/64
35/64
35/64
.951
1.614
1.882
3/16
3/16
3/16
3/4 WIDE
X
5/16 THICK
1-5/8
2"
2"
RQC5/8DT-N
RQC1DT-N
RQC1-1/4DT-N
RQC5/8DT-N-CS
RQC1DT-N-CS
RQC1-1/4DT-N-CS

1-1/4



35/64



1.882



7/16



2-1/4 WIDE

X 3/8 THICK

1-7/8



RQC1-1/4DT-XW



RQC1-1/4DT-XW-CS



1-1/4



35/64



1.882



7/16



2-3/4 WIDE

X 3/8 THICK

1-7/8



RQC1-1/4DT-WW



RQC1-1/4DT-WW-CS



2-1/8



43/64



2.883



5/32



2-3/4 WIDE

X 3/8 THICK

2"



RQC2-1/8DT-WW



RQC2-1/8DT-WW-CS



FOR NEW BRITAIN MACHINES

5/8
19/64
.951
3/16
1-1/4 WIDE
1-1/2
RQC5/8DT
RQC5/8DT-CS
1.253
1.827
35/64
37/64
1.253
1.827
3/16
3/16
1-1/4 WIDE
X 3/8 THICK
1-7/8
1-7/8
RQCNBDT
RQCNBDT-1.827
RQCNBDT-CS
RQCNBDT-1.827-CS
1.253
1.827
35/64
37/64
1.253
1.827
7/16
7/16
1-3/4 WIDE
X 3/8 THICK
1-7/8
1-7/8
RQCNBDT-W
RQCNBDT-1.827-W
RQCNBDT-W-CS
RQCNBDT-1.827-W-CS
1.253
1.827
35/64
37/64
1.253
1.827
3/16
3/16
3/4 WIDE
X 3/8 THICK
1-7/8
1-7/8
RQCNBDT-N
RQCNBDT-1.827-N
RQCNBDT-N-CS
RQCNBDT-1.827-N-CS

FOR WICKMAN MACHINES

.951"
1.433"
1.845"
1.897"
21/64
25/64
33/64
33/64
.951
1.433
1.845
1.897
3/16
3/16
3/16
3/16
1-1/4 WIDE
X
3/8 THICK

1-5/8
1-5/8
1-7/8
1-7/8
RQCWK-951
RQCWK-1433
RQCWK-1845
RQCWK-1897
RQCWK-951-CS
RQCWK-1433-CS
RQCWK-1845-CS
RQCWK-1897-CS
.951"
1.433"
1.845"
1.897"
21/64
25/64
33/64
33/64
.951
1.433
1.845
1.897
7/16
7/16
7/16
7/16
1-3/4 WIDE
X
3/8 THICK

1-5/8
1-5/8
1-7/8
1-7/8
RQCWK-951W
RQCWK-1433W
RQCWK-1845W
RQCWK-1897W
RQCWK-951W-CS
RQCWK-1433W-CS
RQCWK-1845W-CS
RQCWK-1897W-CS

COOLANT ATTACHMENT ONLY

CAT. NO. CAT. NO.
RQCWK-CA RQCDT-CA-1.25

Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)

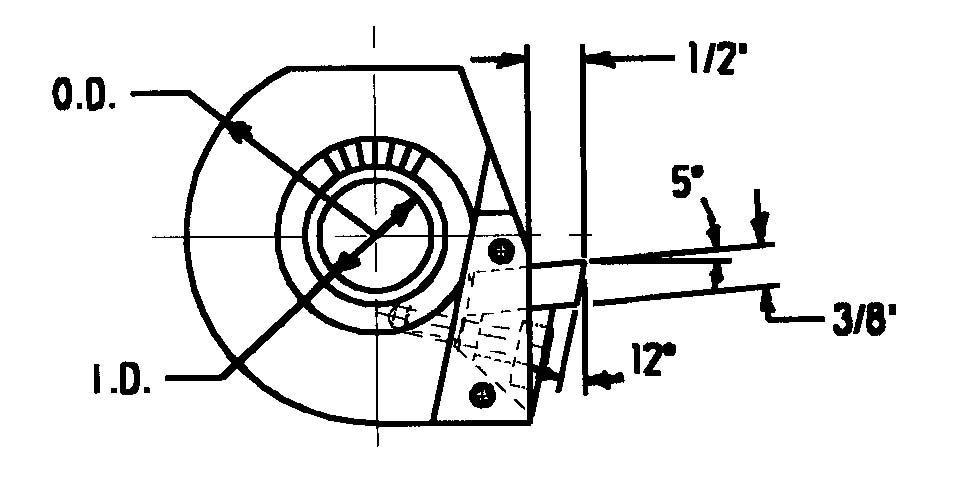

Circular Form Tool Holders for Multiple Spindle Machines - Side Teeth Style
Side Teeth Style

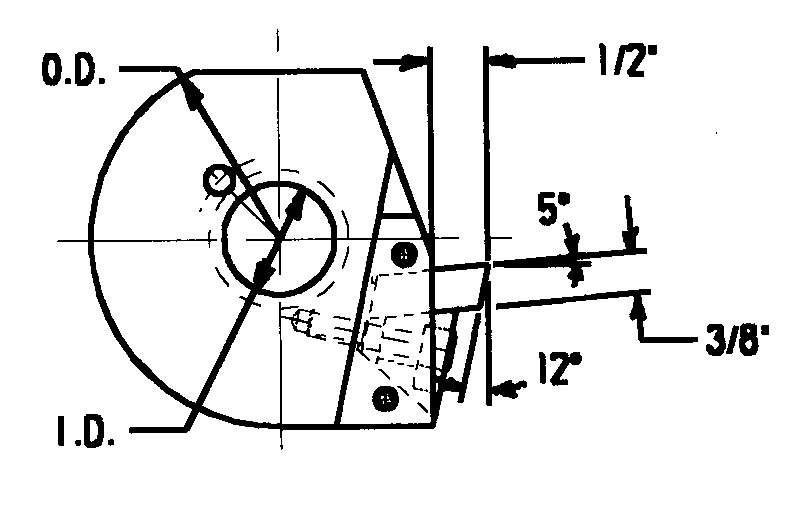

Circular Form Tool Holders for Multiple Spindle Machines - Pinhole Style
Pinhole Style

Circular Form Tool Holders for Multiple Spindle Machines

(Patent No. 5,345,846)
  • 2-3/8" and 3-3/8" O.D. with pinholes or side teeth for National Acme Machines.
  • 2-1/4", 2-1/2", 3" and 3-1/2" O.D. with pinholes for New Britain and other machines
  • with 3/8" x 1-1/4", 3/8 x 1-3/4", 3/8 x 2-1/4" resharpenable or throw-away inserts
  • with coolant attachment
