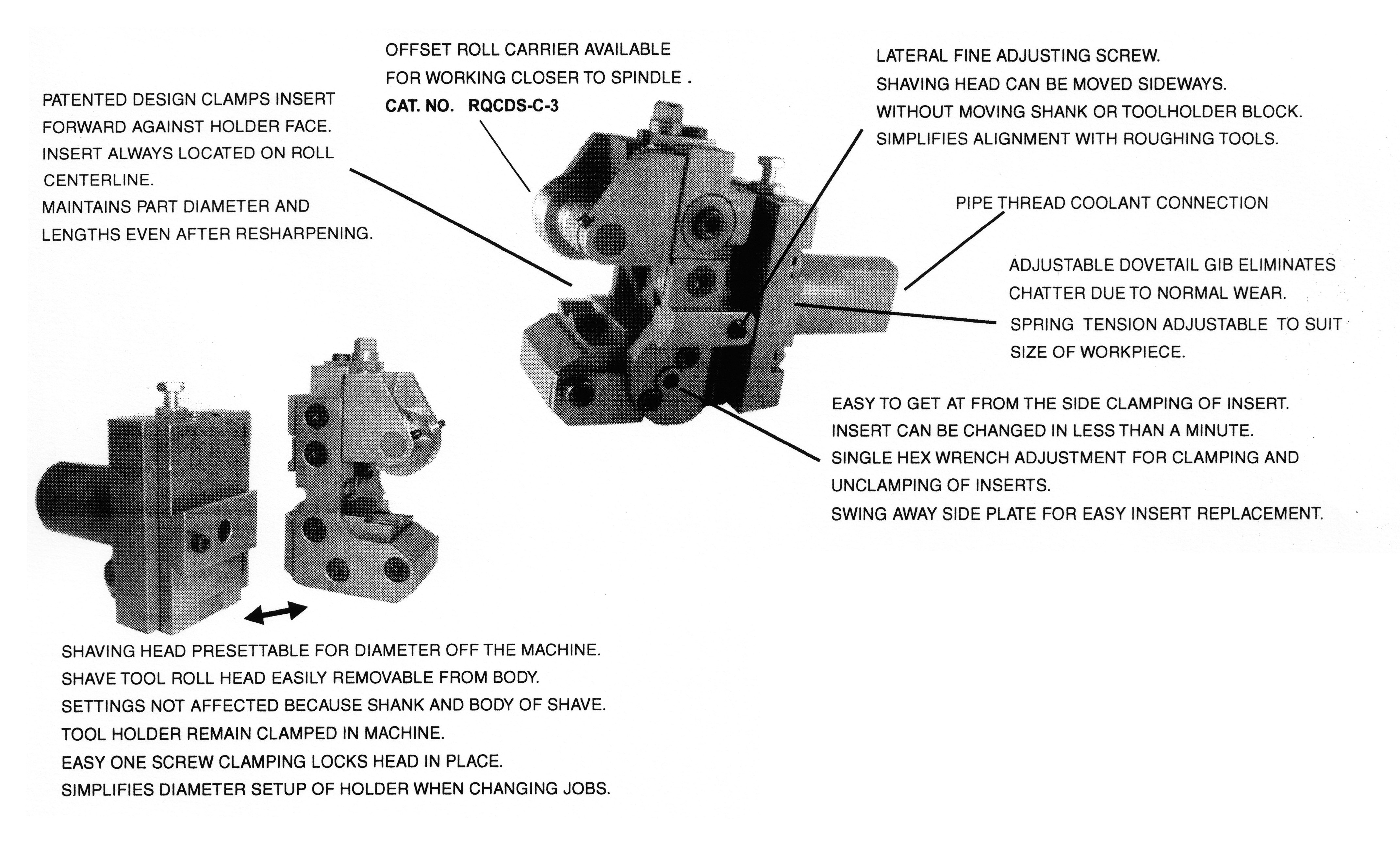

Shave Tool Holders for Davenport Machines

(Patent No. 5,848,562)

At Last...A Shave Tool With All the Features You Always Wanted

The only quick change shave tool insert that can be sharpened without affecting its original:
  • Center setting
  • Part diameter setting
  • Lateral setting
Can also be used with throw-away inserts.
Ideal for Datum Point applications.

Shave Tool Holders for Davenport Machines

CAT. NO.

STYLE

CAPACITY

SIZE

A

B

C

RQCDS-A

A

0-7/8"

1-1/8 X 3/8

1"

2"

2-1/4

*RQCDS-SL

A

0-7/8"

1-1/8 X 3/8

1"

2"

2-1/4

RQCDS-DV

A

0-7/8"

1-1/8 X 3/8

1-1/8"

2"

2-1/4

* CENTERLINE OF SHAVE HEAR OFFSET 1/8" FROM CENTERLINE OF SHANK FOR USE

WITH SLITTERS OR SLATER ADAPTER BLOCKS.

Click here for Insert Blanks.

(Note the appropriate size of insert needed for chosen holder.)

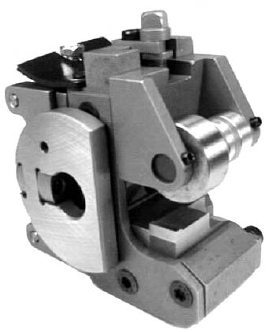

Shave Tool Holders for Davenport Circular Positions




(Patent No. 5,848,562)

CAT NO. RQCDS-C
• MOUNTS ON SWING ARM-SAME AS CIRCULAR TOOLS
• ALL FEATURES SAME AS ABOVE SHANK TYPE SHAVE TOOL
• CAN BE ROTATED TO CENTER SAME AS CIRCULAR SHAVE TOOL HOLDERS
• ADJUSTABLE FOR PART TAPERS


Shave Tool Adapter Blocks for Davenport Machines



Ref 711-229A

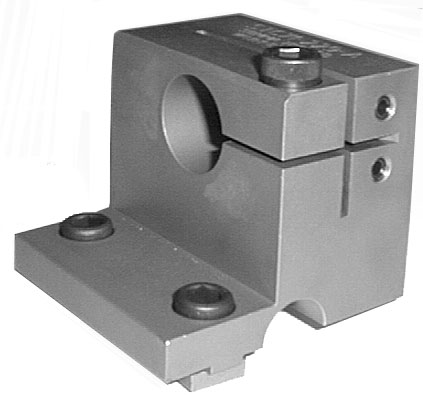

SECOND POSITION ADAPTER BLOCK

Cat. No.   STC-DVAB-2



FOR  RQCDS-A  SHAVE TOOLS

-OR-

ANY SHAVE TOOL WITH SHANK THAT

IS ON CENTER WITH MACHINE SPINDLE



Click here for Insert Blanks.

(Note the appropriate size of insert needed for chosen holder.)



  • Mounting Hold for 1" Diameter Shank.
  • Fine Pitch Screws for Easier Taper Adjustment.
  • Heat Treated Alloy Steel for Durability.

  • To be used with Davenport Tool Arm #5080-64-1

    Ref 711-313S

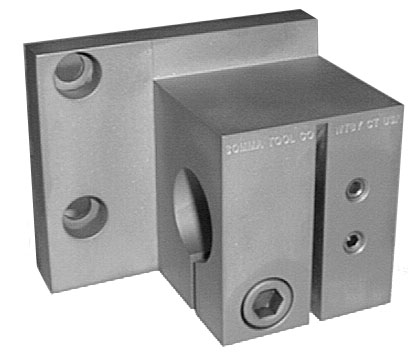

    THIRD POSITION ADAPTER BLOCK

    Cat. No.   STC-DVAB-3



    FOR  RQCDS-SL  SHAVE TOOLS

    -OR-

    SLITTER/SLATER SHAVE TOOLS

    THAT ARE 1/8" OFF CENTER
