Tangi-Square Carbide Insert Holders
for Right Hand Turning

CONVERT YOUR PRESENT TURNING TOOLS TO INDEXABLE "THROWAWAY" CARBIDE INSERTS WITH TANGI-SQUARE CARBIDE INSERT TOOL BIT TYPE HOLDERS. THEY WILL REPLACE HIGH SPEED STEEL TOOL BITS IN MOST TURNING TOOLS.


Tangi-Square Carbide Insert Holders for Right Hand Turning

Tangi-Square Carbide Insert Holders for Right Hand Turning
The only insert designed specifically for screw machine turning tools!

Tangi-Square Carbide Insert Holders for Right Hand Turning

Cat. No.

A

B

C

Insert Style

TSQ000-R

1/4

1-5/16

1/4

TSQ000

TSQ00-R

5/16

1-1/2

3/8

TSQ00

TSQ1-R

3/8

2-1/8

3/8

TSQ00

TSQ2-R

7/16

2-1/2

1/2

TSQ2

TSQ2A-R

1/2

2-1/2

1/2

TSQ2

TSQ3-R

5/8

3-1/2

1/2

TSQ2


Tangi-Square Carbide Insert Holders for Right Hand Turning Tangi-Square Carbide Insert Holders for Right Hand Turning

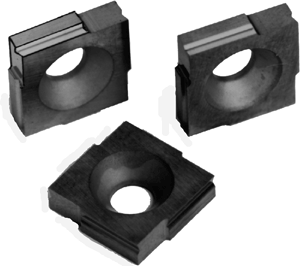

The only insert ever designed specifically for screw machine turning tools!

  • Cut tangentially-not radially
  • Ideal 10° front clearance angle - instead of 5° of triangular inserts
  • Shaves turned diameter for better size control and finish
  • Built in chip breaker
  • Produce square, sharp corners
  • Repeatability within .001"
  • No need for slide retraction because freer cutting action eliminates scroll lines on most applications.
  • 4 right hand cutting edges
  • MICRO-GRAIN carbide for longest tool life
  • Tin coating available as standard
AVAILABLE IN VARIOUS STYLES TO SUIT ALL APPLICATIONS:
35° HIGH TOP RAKE FOR LONGEST TOOL LIFE ON STAINLESS
AND OTHER DIFFICULT-TO-MACHINE MATERIALS.

* SQUARE CORNER
* .015 OR .031 CORNER

5° TOP RAKE FOR MILD MATERIALS
* SQUARE CORNER
* .015 OR .031 CORNER RADIUS

INSERT STYLE

ASTT00/BASTT00

ASTT2/BASTT2
ASTT0/BASTT0

TSQ000

Cat. No.

Cat. No.

Cat. No.

35°
HIGH TOP
RAKE
SQUARE
CORNER

TSQ00-45-MIC

TSQ2-45-MIC

TSQ000-45-MIC

TSQ00-45-MICTIN
TIN COATED

TSQ2-45-MICTIN
TIN COATED

TSQ000-45-MICTIN
TIN COATED

35°
HIGH TOP
RAKE
.015
CORNER
RADIUS OR
.031
CORNER
RADIUS


TSQ00-45-015

TSQ2-45-015

TSQ000-45-015

TSQ00-45-015TIN
TIN COATED

TSQ2-45-015TIN
TIN COATED

TSQ000-45-015TIN
TIN COATED

TSQ00-45-031

TSQ2-45-031

TSQ000-45-031

TSQ00-45-031TIN
TIN COATED

TSQ2-45-031TIN
TIN COATED

TSQ000-45-031TIN
TIN COATED


TOP
RAKE
SQUARE
CORNER

TSQ00-5-MIC

TSQ2-5-MIC

TSQ000-5-MIC

TSQ00-5-MICTIN
TIN COATED

TSQ2-5-MICTIN
TIN COATED

TSQ000-5-MICTIN
TIN COATED


TOP RAKE
.015
CORNER
RADIUS OR
.031
CORNER
RADIUS


TSQ00-5-015

TSQ2-5-015

TSQ000-5-015

TSQ00-5-015-TIN
TIN COATED

TSQ2-5-015-TIN
TIN COATED

TSQ000-5-015TIN
TIN COATED

TSQ00-5-031

TSQ2-5-031

TSQ000-5-031

TSQ00-5-031-TIN
TIN COATED

TSQ2-5-031-TIN
TIN COATED

TSQ000-5-031TIN
TIN COATED

INSERT SCREW

ATT00-17

ATT2-17

TSQ000-2

MAX DEPTH OF CUT PER SIDE

3/16"

17/64"

7/64"
