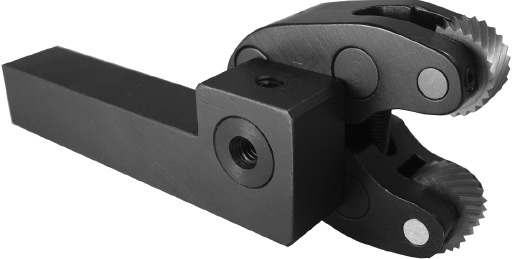

Adjustable Straddle Knurl Tool Holders




ADJUSTABLE STRADDLE KNURL HOLDERS

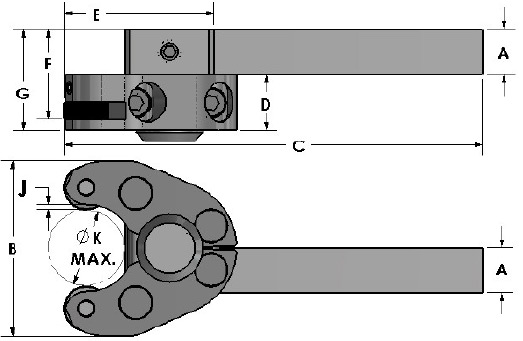

PART#  A B C D E F G MAX CAPACITY KNURL SERIES KNURL PIN
KTASW-5/16 5/16 1.25 5.0 .500 1.12 .750 .812 .437 *KTSW CK 082
KTASW-3/8 3/8 1.25 5.0 .500 1.12 .812 .875 .437 *KTSW CK 082
KTAS0-3/8 3/8 1.50 5.0 .750 1.88 .875 1.000 .750 *KT00 CK 123
KTASW-1/2 1/2 1.25 5.0 .500 1.12 .937 1.000 .437 *KTSW CK 082
KTAS0-1/2 1/2 1.50 5.0 .750 1.88 1.000 1.125 .750 *KT00 CK 123
KTAS0-5/8 5/8 1.50 5.0 .750 1.88 1.125 1.250 .750 *KT00 CK 123
KTASN-5/8 5/8 2.50 5.0 .750 2.00 1.175 1.375 1" *KTN CK 124
KTASP-5/8 5/8 2.50 5.0 .875 2.00 1.300 1.500 1" *KTP CK 144
KTAS0-3/4 3/4 1.50 5.0 .750 1.88 1.250 1.375 .750 *KT00 CK 123
KTASN-3/4 3/4 2.50 5.0 .750 2.00 1.300 1.500 1" *KTN CK 124
KTASP-3/4 3/4 2.50 5.0 .875 2.00 1.425 1.625 1" *KTP CK 144
KTASR-3/4 3/4 3.00 5.3 1.000 2.25 1.438 1.750 2" *KTR CK 164
KTASP-1 1" 2.50 5.0 .875 2.00 1.675 1.875 1" *KTP CK 144
KTASR-1 1" 3.00 5.3 1.000 2.25 1.688 2.000 2" *KTR CK 164
