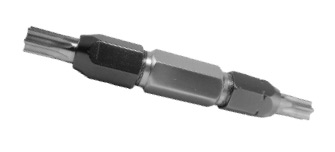

Broach Go / No-Go Gages with Handle




Custom made to your
specifications or
choose from Somma
standard sizes shown.
PART NUMBER FOR CHECKING HEX SIZE PART NUMBER FOR CHECKING HEX SIZE
HEX GAGE SET-050 0.0500 / 0.0510 HEX GAGE SET-7/32 0.2187 / 0.2217
HEX GAGE SET-1/16 0.0625 / 0.0635 HEX GAGE SET-1/4 0.2500 / 0.2530
HEX GAGE SET-5/64 0.0781 / 0.0791 HEX GAGE SET-5/16 0.3125 / 0.3160
HEX GAGE SET-3/32 0.0937 / 0.0952 HEX GAGE SET-3/8 0.3750 / 0.3790
HEX GAGE SET-7/64 0.1094 / 0.1111 HEX GAGE SET-7/16 0.4375 / 0.4420
HEX GAGE SET-1/8 0.1250 / 0.1270 HEX GAGE SET-1/2 0.5000 / 0.5050
HEX GAGE SET-9/64 0.1406 / 0.1426 HEX GAGE SET-9/16 0.5625 / 0.5680
HEX GAGE SET-5/32 0.1562 / 0.1587 HEX GAGE SET-5/8 0.6250 / 0.6310
HEX GAGE SET-3/16 0.1875/ 0.1900 HEX GAGE SET-3/4 0.7500 / 0.7570

TORX STYLE
PART NUMBER
T5 GAGE SET
T6 GAGE SET
T7 GAGE SET
T8 GAGE SET
T10 GAGE SET
T15 GAGE SET
T20 GAGE SET
T30 GAGE SET
T40 GAGE SET
T45 GAGE SET
T50 GAGE SET
T55 GAGE SET
