Dovetail Form Tool Holders & Adapters

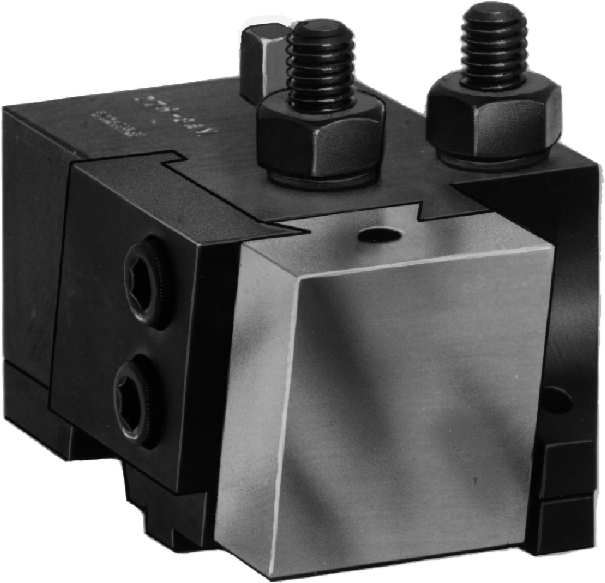

1st Position 12° Dovetail Tool Holder for Davenport





  • Extended outboard support eliminates tearing out of "T" slot of slide.
  • Permits heavier cuts without chatter.
  • Eccentric stud and pin adjustment to correct part taper.
  • Support fits freely under oversize spindle.
DTH-DAV

1st Position Dovetail Tool Holder Parts

PART. NO.

CAT. NO.

1. PLATE

DTH-DAV-1

2. BODY

DTH-DAV-2

3. STUD

DTH-DAV-3

4. CLAMP

DTH-DAV-4

5. CLAMP SCREW

DTH-DAV-5

6. STUD SCREW

TT00-13

7. PIVOT PIN

CTP2-10

8. BOLT

00TPB-4

9. NUT & WASHER

00TBN

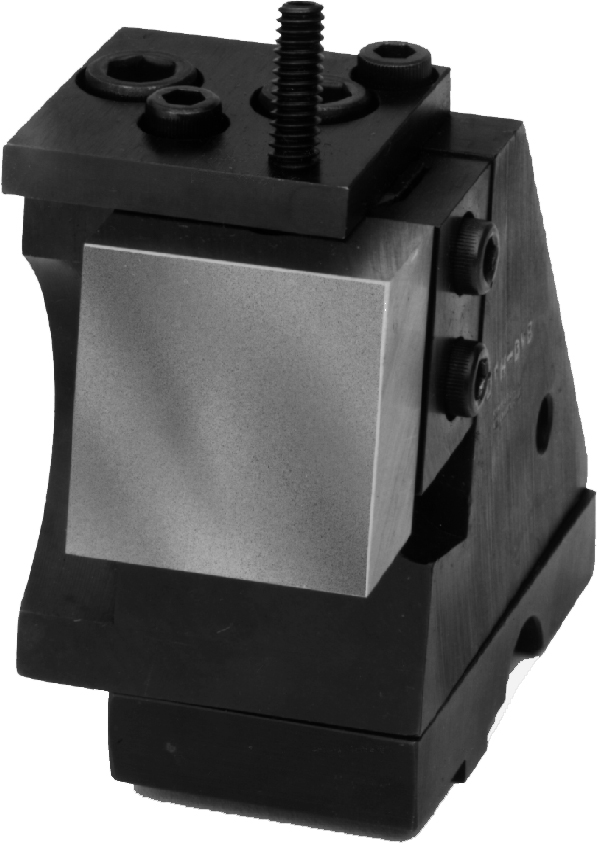

2nd Position 12° Davenport Slide




  • Permits heavier cuts without chatter.
  • Eccentric stud and pin adjustment to correct part taper.
DTH-DVB

2nd Position Dovetail Tool Holder Parts

Part No.

Cat. No.

1. PLATE
2. BODY
3. TOP PLATE
4. CLAMP
5. STUD
6. STUD SCREW
7. PIVOT PIN
8. CLAMP SCREW
9. COVER SCREW
10. JACK SCREW
11. CAP SCREW
12. SQUARE NUT

DTH-DVB-1
DTH-DVB-2
DTH-DVB-3
DTH0-2
DTH-DAV-3
TH000-3
DTH-DVB-7
DTH2-7
TC0BH00-SCR
DTH-DVB-10
DTH-DVB-11
DTH-DVB-12

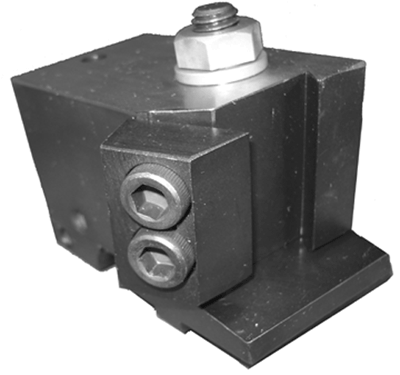

1st Position 10° Dovetail Tool Holder for Davenport



• 1-Bolt
• 10° Face Angle
• First Position

Cat. No.
3060-sa-SOMMA

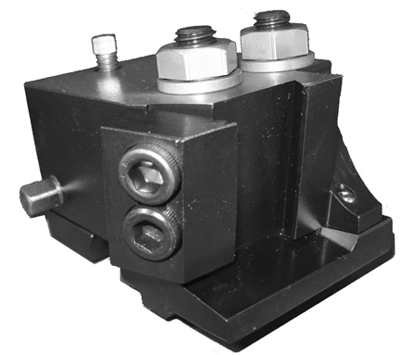

1st Position 10° Dovetail Tool Holder for Davenport



• 2-Bolt
• Designed for heavy cuts
• 10° Face Angle
• First Position

Cat. No.
3060-10-sa-SOMMA

Universal Dovetail Tool Holder for Brown & Sharpe Machines





Illustration shows tool holder as it is used for forward rotation on front and rear slide.
  • Designed for use on front or rear slide for either forward or reverse spindle rotation.
  • Especially suited for heavy cuts or where design limitations of circular type tools do not permit grinding of side clearances.
  • Swivel adjustment provided to correct for tapers.
MACH D/T BLANK
SIZE SEE PG 16 ORDERING# A B C D E F
  #00 DTH00-.. DTH00       1"     .714    1-5/8     2-5/8    1-1/4    3/16
  #00 5/8DTF-.. DTH00-951       1"     .951   1-11/16   2-11/16    1-1/2     1/4
  #0 DTH0-.. DTH0    1-5/16     .951     2-1/8     3-3/8    1-1/2     1/4
  #2 DTH2-.. DTH2    1-7/16    1.250   2-17/32   3-15/16      2"    13/32
  #2 5/8DTF-.. DTH2-951    1-7/16     .951    2-7/8   4-9/32    1-1/2     1/4
  #2 1-1/4DTF-.. DTH2-1.882    1-7/16    1.882   2-17/32   3-15/16      3"     1/2



Dovetail Form Tool Adapter for Turret Lathes and CNC Lathes





FOR CNC LATHES TOO!
These Holders are designed to hold standard Dovetail Blanks in the flat tool post or square tool post of all Turret Lathes and CNC Lathes.

CAT. NO.

A

B

D/T

C

D

E

F

.75TLDTH

3/4 SQ.

3-1/2

.6995

1/4

1-1/4

1-1/4

1-1/4

1.0TLDTH

1" SQ.

4"

.951

1/4

1-3/4

1-1/2

1-1/2

1.25TLDTH

1-1/4 SQ.

4-1/2

.951

1/4

1-3/4

1-1/2

1-1/2

1.882TLDTH

1-1/4 SQ.

4-1/2

1.882

17/32

2"

3"

2"


Dovetail Form Tool Adapter Parts

Part No.

.75TLDTH Cat. No.

1.0TLDTH Cat. No.

1.25TLDTH Cat. No.

1.882TLDTH Cat. No.

1. Body
2. Clamp
3. Clamp Scr.

.75TLDTH-1
.75TLDTH-2
DTH2-7

1.0TLDTH-1
1.0TLDTH-2
DTH2-7

1.25TLDTH-1
1.0TLDTH-2
1.25TLDTH-3

1.882TLDTH-1
1.882TLDTH-2
1.25TLDTH-3
