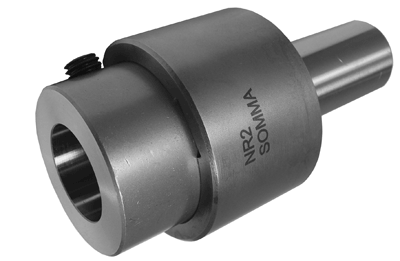

Non-Releasing Tap Holder





* Excellent for operations where release is not required.
* Smooth, extra long pullout.

All other dimensions same as releasing tap holders. Tools with "NBG" Cat. Nos. have special shank dimensions for use on New Britain Gridley Automatics.

CAT. NO.

SHANK
DIA.

SHANK
LENGTH

TAP CAPACITY

PULLOUT

HAND

PIPE

NR000

5/8

1-3/16

1/4

1/16

7/16

NR00

5/8

1-1/4

7/16

1/8

1/2

NR1

3/4

1-3/4

11/16

1/4

17/32

NR2

1"

2"

1-1/8

3/4

5/8

NR2-NBG

1"

2"

1-1/8

3/4

5/8

NR3

1-1/4

2-9/16

1-1/4

1"

7/8

NR3-NBG

1-1/2

1-3/4

1-1/4

1"

7/8

NR4

1-1/2

3-3/16

1-1/2

1"

1"

NR4-NBG

1-1/2

1-11/16

1-1/2

1"

1"

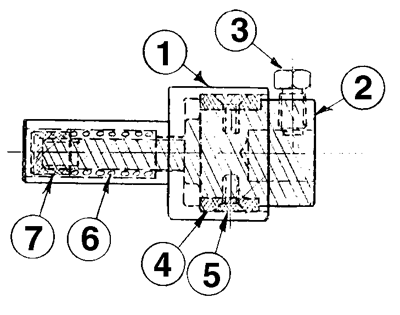

Non-Releasing Tap Holder Parts





NR000

NR00

NR1

NR2

NR3

NR4



Part No.

Cat. No.

Cat. No.

Cat. No.

Cat. No.

Cat. No.

Cat. No.

1.

Body

NR000-1

NR00-1

NR1-1

NR2-1

NR3-1

NR4-1

2.

Spindle

NR000-2

NR00-2

NR1-2

NR2-2

NR3-2

NR4-2

3.

Set Screw

ATT00-12

TH000-3

FARH2-10

2ANR-6

NR3-3

NR4-3

4.

Key (Ea.)

NR00-4

NR00-4

NR1-4

NR2-4

NR3-4

NR4-4

5.

Keys Screws (Ea.)

NR000-5

NR000-5

NR000-5

NR2-5

NR2-5

NR2-5

6.

Shank Spring

TH000-13

TH00-13

TH1-13

TH2-13

TH3-13

TH4-13

7.

Spindle Nut

TH000-14

TH00-14

TH1-14

TH2-14

TH2-14

TH4-14

8.

Retainer

-----

TH00-13-2

----

-----

-----

-----




NR2-NBG

NR3-NBG

NR4-NBG

Part No.

Cat. No.

Cat. No.

Cat. No.

1. Body

NR2-1NBG

NR3-1NBG

NR4-1NBG

2. Spindle

---

---

NR4-2NBG
