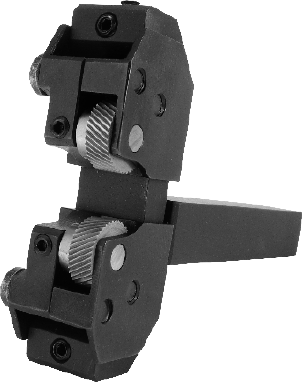

Swiss Straddle Knurl Tool Holders

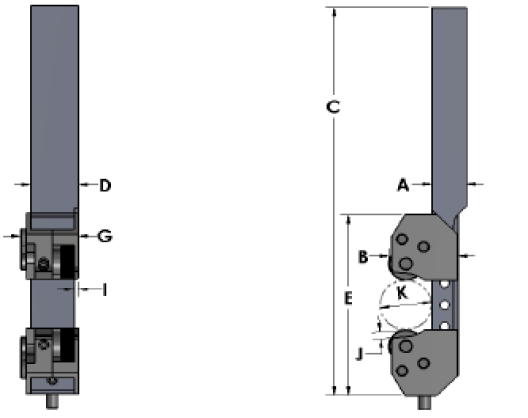

SWISS T STYLE STRADDLE HOLDERS
Part# Max. Capacity A B C D E G I J Knurl Series Knurl Pin Knurl Spacer
KTST-06 .65" 3/8" 2.65 4.0 .63 1.0 .83 .06 .10 *KT00 CK 103 SP030206
KTST-08 .65" 1/2"
KTST-00 1.13" 5/8" 3.63 5.5 .63 1.55 .85 .06 / .20 1.13 *KT2, KTN CK 124 -
KTST-1 1.13" 3/4"
KTST-2 1.13" 1"
KTST-10MM .65 10mm 2.65 4.0 .63 1.0 .83 .06 .10 *KT00 CK 103 SP030206
KTST-12MM .65 12mm
KTST-20MM 1.13" 20mm 3.63 5.5 .63 1.55 .85 .06 / .20 1.13 *KT2, KTN CK 124 -
KTST-25MM 1.13" 25mm

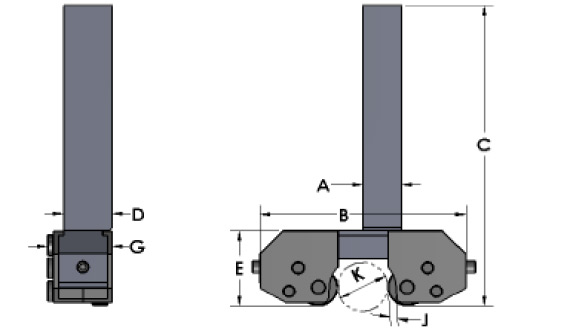

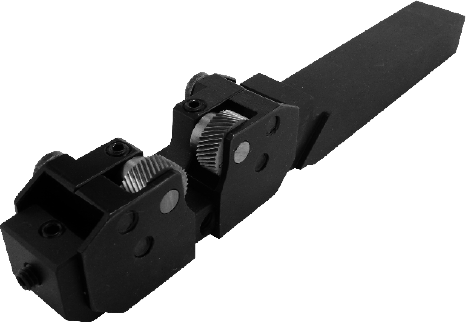

SWISS INLINE STRADDLE HOLDERS
Part# Max. Capacity A B C D E G I J Knurl Series Knurl Pin Knurl Spacer
KTSC-06 3/4 3/8 1" 5.9" .69" 2.75" .83 .06 .10 *KT00 CK 103 SP030206
KTSC-08 3/4 1/2
KTSC-10MM 3/4 10mm
KTSC-12MM 3/4 12mm
