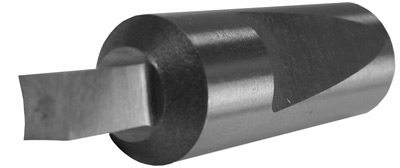

Internal Square Broaches
with 8mm Dia. Shank x 28mm (1.102") OAL

Internal Square Broaches for Swiss Holders

Inch / Square, for ORBSW/... Holders
8MM (.315) Shank Diameter x 28MM (1.103) OAL
NOMINAL
SQUARE SIZE		 ACTUAL
A/F*		 MAX CUTTING
DEPTH*		 PART NO.
1/16 .0630 .133 SQSW-1/16-F
5/64 .0786 .166 SQSW-5/64-F
3/32 .0947 .199 SQSW-3/32-F
7/64 .1106 .233 SQSW-7/64-F
1/8 .1265 .266 SQSW-1/8-F
9/64 .1421 .299 SQSW-9/64-F
5/32 .1582 .333 SQSW-5/32-F
11/64 .1739 .366 SQSW-11/64-F
3/16 .1895 .398 SQSW-3/16-F
7/32 .2209 .427 SQSW-7/32-F
1/4 .2522 .443 SQSW-1/4-F
9/32 .2837 .458 SQSW-9/32-F
5/16 .3152 .473 SQSW-5/16-F
Metric / Square, for ORBSW/…Holders
8MM (.315) Shank Diameter x 28MM (1.103) OAL
NOMINAL
SQUARE SIZE		 ACTUAL
A/F*		 MAX CUTTING
DEPTH*		 PART NO.
1.5MM .0603 .127 SQSW-1.5-F
2.0MM .0800 .169 SQSW-2.0-F
2.5MM .1002 .211 SQSW-2.5-F
3.0MM .1204 .253 SQSW-3.0-F
4.0MM .1602 .337 SQSW-4.0-F
5.0MM .1997 .420 SQSW-5.0-F
6.0MM .2392 .436 SQSW-6.0-F
7.0MM .2789 .456 SQSW-7.0-F
8.0MM .3187 .475 SQSW-7.0-F

* Custom A/F & Depths of Cut available to quote upon request
