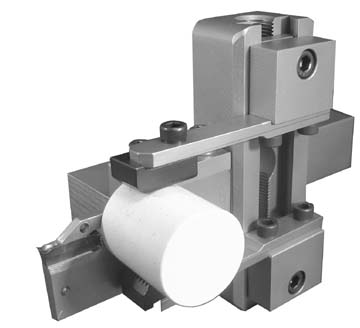

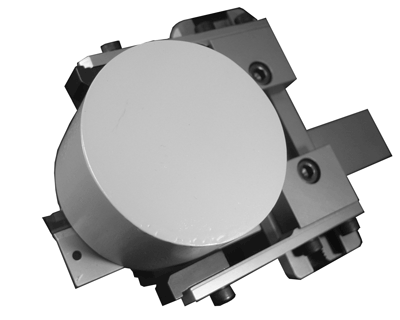

Combination Bar Puller Cut-Off Tool for CNC


Bar puller and cut off tool (sold seperately) in one unit!
Allows one operator to run several machines.


Combination Bar Puller Cut-Off Tool for CNC
Combination Bar Puller Cut-Off Tool for CNC

Combination Bar Puller Cut-Off Tool for CNC

  • Saves a turret position
  • Rugged, compact dovetail slide construction
  • Reduces cycle time - no need to index between cut off and pulling operations
  • Single screw adjustment allows jaws to be set up and adjusted in minutes for next job
  • One turn of screw moves both jaws in or out exactly .100"
  • Screw adjustment is infinitely adjustable as opposed to serrated design that had adjustment limitations
  • Jaw carriers can also be individually adjusted to simplify centering with cut off blade
  • Will accept all popular brands of insert style cut off blades, which are sold separately
  • Designed to accept competitiors' jaws and jaw fingers
  • Also available with 1-1/4" and metric square shanks - price on application

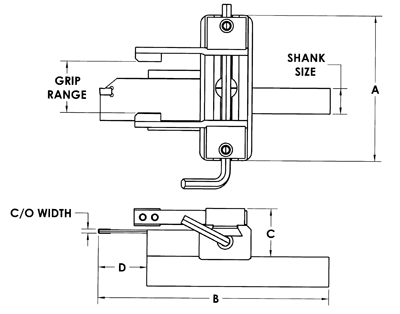

SHANK GRIPPING         MAX DEPTH CAT. NO.
SIZE RANGE A B C D E RIGHT HAND
3/4" SQ. 1/8 TO 3-1/4" 4-1/4" 6-5/8" 1-25/64" 1-21/64" 3-5/8" BPCO-1
1" SQ. 1/8 TO 3-1/4" 4-1/4" 6-5/8" 1-25/64" 1-21/64" 3-5/8" BPCO-2
*NOTE: CUT-OFF HOLDER FOR BAR PULLER MUST BE ORDERED SEPARATELY
BAR PULLER IS DESIGNED FOR RIGHT HAND USE ONLY

Cut-Off Holder for Bar Puller

(includes standard insert and insert wrench)

CAT. NO C/O WIDTH
CO-HLDR-BP 0.118

Replacement Parts

DESCRIPTION CAT. NO.
SPRING FINGER PCO-5
SERRATED JAW PCO-6
C/O INSERT FOR GENERAL STEEL WCFR3 AC3000
C/O INSERT FOR HARD STL/ SLOW FEED. WCFR3A AC225
C/O INSERT FOR CAST IRON/ ALUMINUM WCFR3B G10E
