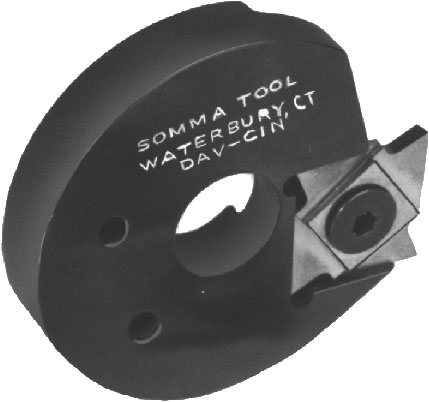

Quick Change Carbide Inserted Circular Cut-Off Holders For Davenport and B&S Machines
![Quick Change Carbide Inserted Circular Cut-Off Holders For Davenport and B&S Machines](/images/catalog/products/Quick-Change-Carbide-Circular-Cut-Off-Holders.jpg)
![Quick Change Carbide Inserted Circular Cut-Off Holders For Davenport and B&S Machines - Diagram](/images/catalog/products/Quick-Change-Carbide-Circular-Cut-Off-Holders-Diagram.gif)
New holders available for left hand turning and threading on Brown & Sharpe #00, #0 and #2.
Add "-LH" to the Catalog Number.
See our Indexable Carbide Inserts that fit these holders.
Add "-LH" to the Catalog Number.
See our Indexable Carbide Inserts that fit these holders.
DAVENPORT*: W/TWO 9/64" DIA PINHOLES | |||
ON 1-1/4" B.C. & 9/16 REAMED HOLE. | |||
*ALSO FITS 9/16" CONE & 7/16" ACME | |||
INSERT | |||
CAT. NO. | SIZE | A | L |
DAV-CIN | 3/4" SQ | 1/8" | 1-1/8" |
DAV-CIN-EX | 1" SQ | 1/8" | 1-1/8" |
#00 B&S & TRAUB: W/TWO 5/32" DIA | |||
PINHOLES ON 1-1/16" B.C. AND | |||
ONE 1/8" DIA PINHOLE ON .787 B.C. | |||
INSERT | |||
CAT. NO. | SIZE | A | L |
00-CIN | 3/4" SQ | 1/8" | 1" |
#0 B&S: W/TWO 3/16" DIA PINHOLES | |||
ON 1-3/8" B.C. | |||
INSERT | |||
CAT. NO. | SIZE | A | L |
0-CIN | 3/4" SQ | 5/32" | 1-1/8" |
