Acme and New Britain Cut-Off Toolholders

Acme Cut-Off Toolholders
Patent No. D307859

See our Indexable Carbide Inserts that fit these holders.

MACHINE SIZE A B H L CAT# FOR TOOL HOLDER
W/ POCKET FOR 3/4" SQ
STANDARD INSERT
CAT# FOR TOOL HOLDER
W/ POCKET FOR 1" SQ
STANDARD INSERT
7/16"R/A 1.215 0.988 0.251 6.00" 7/16AC-CIN 7/16AC-CIN-EX
9/16" R/A 0.595 1.188 0.251 5.00" 9/16AC-CIN 9/16AC-CIN-EX
1-1/4" R/A 0.845 1.781 0.453 5.00" 1-1/4AC-CIN 1-1/4AC-CIN-EX
1-5/8" R/A 1.235 1.875 0.485 6.00" 1-5/8AC-CIN 1-5/8AC-CIN-EX
2" R/A 1.235 2.250 0.407 6.00" 2AC-CIN 2AC-CIN-EX
3" R/A 1.484 2.500 0.219 6.00" 3AC-CIN 3AC-CIN-EX

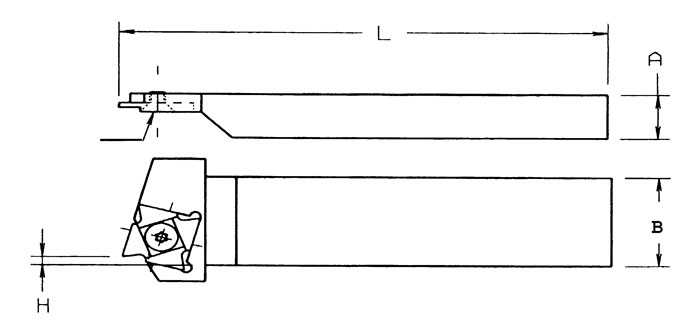

Acme Cut-Off Toolholders


INSERT SIZE INSERT SCREW# INSERT WRENCH#<
3/4" SQ DAV-CIN-SCR DAV-CIN-WR
1" SQ DAV-CIN-SCR-ISO DAV-CIN-WR

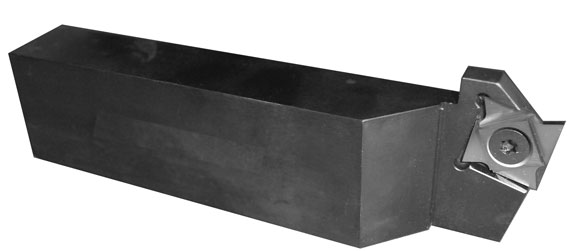

New Britain Cut-Off Toolholders
Toolholders shown use .750 SQ. inseert
Patent No. D307859

New Britain Cut-Off Toolholders

TOOLHOLDER CAT. NO. INSERT SIZE INSERT SCREW INSERT WRENCH
NB-CIN 3/4" DAV-CIN-SCR DAV-CIN-WR
NB-CIN-EX 1" DAV-CIN-SCR-ISO DAV-CIN-WR
