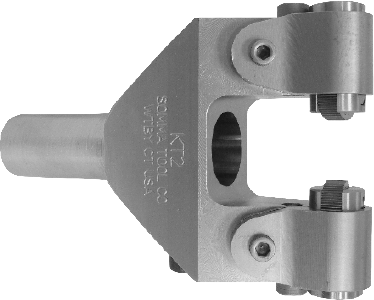

Knurling Tool


Knurling Tool
Knurling Tool

FOR CNC LATHES TOO!
  • Knurl can be adjusted to produce straight, diagonal, or diamond knurls by rotating the barrels.
  • Holds drills for combined operations
  • Standard with carbide knurl pins
  • Same tool can be converted to "extra capacity" by changing barrels.

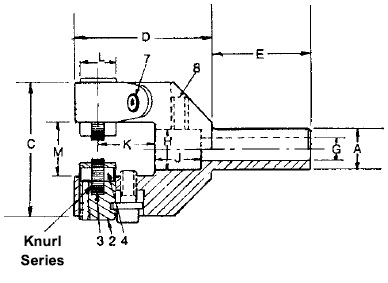

KNURLING TOOL SPECIFICATIONS

CAT. NO. A B
KNURL SIZE
C D E G H J K L M BARREL
LENGTH
CAPACITY
DIA.

KT00

5/8

1/2x3/16x3/16

1-15/16

1-7/8

1-1/8

5/16

1/2

9/16

5/8

9/16

5/8

7/8

Up to 1/2"

KT1

3/4

5/8x1/4x1/4

2-15/32

2-9/16

1-7/8

7/16

5/8

7/8

1-1/16

11/16

1"

1-1/16

Up to 3/4"

KT2

1"

5/8x1/4x1/4

3-5/16

3-7/16

2-3/16

5/8

1"

1-1/4

1-1/2

11/16

1-3/8

1-5/16

Up to 7/8"

KT2-EC

1"

5/8x1/4x1/4

3-5/16

3-7/16

2-3/16

5/8

1"

1-1/4

1-1/2

11/16

1-3/8

1-1/16

7/16 to 1-5/16

KT3

1-1/4

5/8x1/4x1/4

4"

4-1/4

3-1/4

5/8

1-1/4

1-1/4

2"

11/16

2-1/16

1-5/16

1/2 to 1-3/8

KT3-EC

1-1/4

5/8x1/4x1/4

4"

4-1/4

3-1/4

5/8

1-1/4

1-1/4

2"

11/16

2-1/16

1-1/16

1" to 2"

Note -EC = Extra Capacity

KNURLING TOOL PARTS

PART NO.

KT00
Cat. No.

KT1
Cat. No.

KT2
Cat. No.

KT2-EC
Cat. No.

KT3
Cat. No.

KT3-EC
Cat. No.

1. Body

KT00-1

KT1-1

KT2-1

KT2-1

KT3-1

KT3-1

2. Barrels

KT00-2

KT1-2

KT2-2

KT1-2

KT2-2

KT1-2

3. Knurls

KT00-3

KT2-3

KT2-3

KT2-3

KT2-3

KT2-3

4. Knurl Pins, Carbide

KT00-4

KT2-4

KT2-4

KT2-4

KT2-4

KT2-4

5. Barrel Screws

KT00-5

KT1-5

KT2-5

KT1-5

KT2-5

KT1-5

6. Adjusting Screws

KT00-6

KT2-6

KT2-6

KT2-6

KT2-6

KT2-6

7. Clamp Screws

KT00-7

KT2-7

KT2-7

KT2-7

KT2-7

KT3-7

8. Drill Holder Screws

KT00-8

KT1-8

KT2-8

KT2-8

KT2-8

KT2-8

* Specify pitch of knurl required when ordering. Medium knurls supplied unless otherwise specified.
