Adjustment Free Swiss Internal Broach Tool Holders

Adjustment Free Swiss Internal Broach Tool Holders

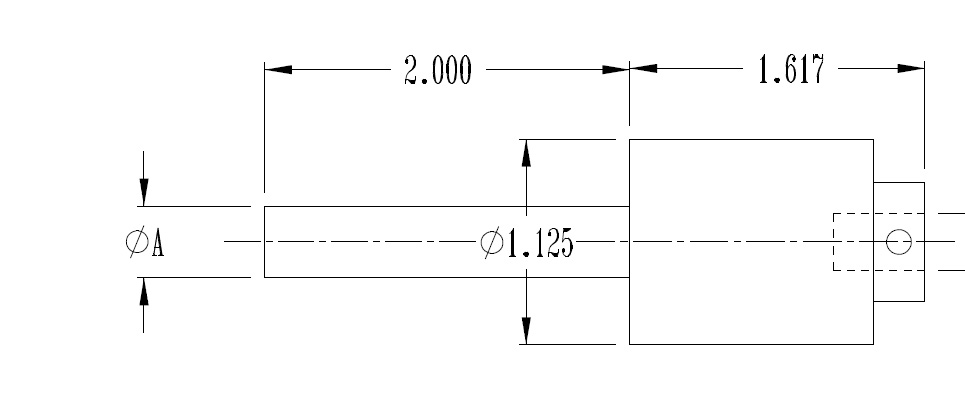

Adjustment Free Swiss Internal Broach Tool Holders - Diagram
  • No center indicating required
  • Adjustment free (with 28MM long broaches only)
  • Smaller head diameter eliminates interference
  • Short head length for limited back work space
  • Built in wobble cutting features 1° angle
  • Fits most Swiss type & gang machines
  • Hex, Square and Six Lobed broaches in stock to fit these holders
CAT. NO. A
ORBSW/10MM 10MM
ORBSW/12MM 12MM
ORBSW/14MM 14MM
ORBSW/16MM 16MM
ORBSW/20MM 20MM
ORBSW/22MM 22MM
ORBSW/25MM 25MM
ORBSW/0.500 0.500"
ORBSW/0.625 0.625"
ORBSW/0.750 0.750"

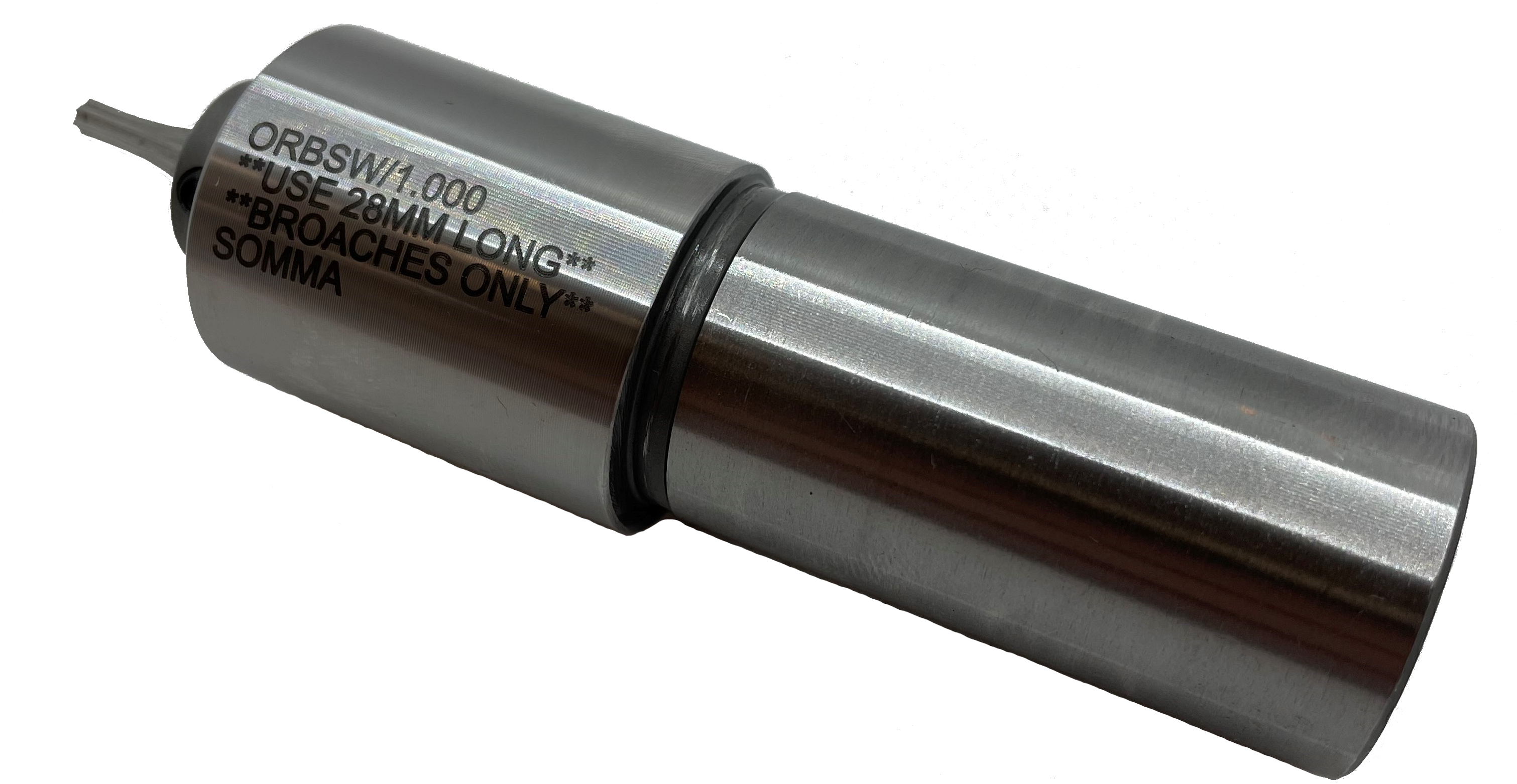

ORBSW/1.000 1.000"

Hex, Square and Six Lobed Broaches in stock to fit these holders.

NOTE: USE ONLY SERIES# --SW BROACHES 8MM DIA X 28MM LONG
