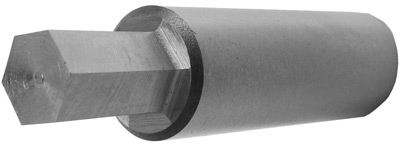

Internal Hex Broaches for Swiss Holders




  • Superior, Hardened FORTE material
  • Ground all over
  • Angular clamping fl at prevents pull out
(Prices on application)
See our Adjustment Free Internal Rotating Broach Holders For Swiss Machines.

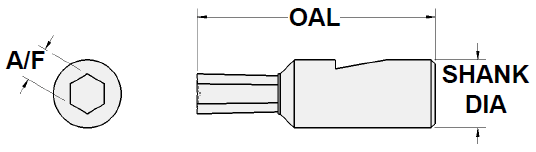

Inch / Hex, for ORBSWS/... Holders
8MM (.315) Shank Diameter x 28MM (1.103) OAL
NOMINAL
HEX SIZE
ACTUAL
A/F*
MAX CUTTING
DEPTH*
PART NO.
.050 .0505 .107 HXSW-050-F
1/16 .0630 .133 HXSW-1/16-F
5/64 .0786 .166 HXSW-5/64-F
3/32 .0947 .199 HXSW-3/32-F
7/64 .1106 .233 HXSW-7/64-F
1/8 .1265 .266 HXSW-1/8-F
9/64 .1421 .299 HXSW-9/64-F
5/32 .1582 .333 HXSW-5/32-F
3/16 .1895 .398 HXSW-3/16-F
7/32 .2212 .427 HXSW-7/32-F
1/4 .2525 .443 HXSW-1/4-F
9/32 .2837 .458 HXSW-9/32-F
5/16 .3152 .473 HXSW-5/16-F
11/32 .3467 .572 HXSW-11/32-F
3/8 .3782 .572 HXSW-3/8-F
Metric / Hex, for ORBSWS/... Holders
8MM (.315) Shank Diameter x 28MM (1.103) OAL
NOMINAL
HEX SIZE
ACTUAL
A/F*
MAX CUTTING
DEPTH*
PART NO.
1.5MM .0603 .127 HXSW-1.5-F
2.0MM .0800 .169 HXSW-2.0-F
2.5MM .1002 .211 HXSW-2.5-F
3.0MM .1204 .253 HXSW-3.0-F
4.0MM .1602 .337 HXSW-4.0-F
5.0MM .1997 .420 HXSW-5.0-F
6.0MM .2395 .436 HXSW-6.0-F
7.0MM .2789 .456 HXSW-7.0-F
8.0MM .3187 .475 HXSW-8.0-F
9.0MM .3583 .572 HXSW-9.0-F
10.0MM .3979 .572 HXSW-10.0-F

* Custom A/F & Depths of Cut available to quote upon request


Internal Square Broaches for Swiss Holders





Inch / Square, for ORBSWS/... Holders
8MM (.315) Shank Diameter x 28MM (1.103) OAL
NOMINAL
SQUARE SIZE
ACTUAL
A/F*
MAX CUTTING
DEPTH*
PART NO.
1/16 .0630 .133 SQSW-1/16-F
5/64 .0786 .166 SQSW-5/64-F
3/32 .0947 .199 SQSW-3/32-F
7/64 .1106 .233 SQSW-7/64-F
1/8 .1265 .266 SQSW-1/8-F
9/64 .1421 .299 SQSW-9/64-F
5/32 .1582 .333 SQSW-5/32-F
11/64 .1739 .366 SQSW-11/64-F
3/16 .1895 .398 SQSW-3/16-F
7/32 .2209 .427 SQSW-7/32-F
1/4 .2522 .443 SQSW-1/4-F
9/32 .2837 .458 SQSW-9/32-F
5/16 .3152 .473 SQSW-5/16-F
Metric / Square, for ORBSWS/…Holders
8MM (.315) Shank Diameter x 28MM (1.103) OAL
NOMINAL
SQUARE SIZE
ACTUAL
A/F*
MAX CUTTING
DEPTH*
PART NO.
1.5MM .0603 .127 SQSW-1.5-F
2.0MM .0800 .169 SQSW-2.0-F
2.5MM .1002 .211 SQSW-2.5-F
3.0MM .1204 .253 SQSW-3.0-F
4.0MM .1602 .337 SQSW-4.0-F
5.0MM .1997 .420 SQSW-5.0-F
6.0MM .2392 .436 SQSW-6.0-F
7.0MM .2789 .456 SQSW-7.0-F
8.0MM .3187 .475 SQSW-7.0-F

Hexagon go / no-go gages (with handle) are available upon request.
* Custom A/F & Depths of Cut available to quote upon request


Internal 6 Lobed Broaches for Swiss Holders







Available in T15PM H.S.S.
(Prices on application)
6 Lobed for ORBSWS... Holders
8MM Shank Diameter x 28MM
NOMINAL
6-LOBE SIZE
MAX CUTTING
DEPTH*
PART NO.
T5 .047 TOSW-T5
T6 .047 TOSW-T6
T7 .063 TOSW-T7
T8 .078 TOSW-T8
T9 .078 TOSW-T9
T10 .109 TOSW-T10
T15 .109 TOSW-T15
T20 .156 TOSW-T20
T25 .156 TOSW-T25
T27 .188 TOSW-T27
T30 .219 TOSW-T30

* Custom depths of cut available to quote upon request



Click here to see Information on our Broach Gages

These are examples of special shapes that have been successfully broached.
Let us quote on your requirements.

Broach
Broach

PLEASE INCLUDE THE FOLLOWING INFORMATION WITH YOUR SPECIAL BROACH INQUIRY:
INTERNAL OR EXTERNAL H/S/S BROACH TOLERANCE IF NOT SHOWN ON PRINT IS H/S/S BROACH TO BE USED IN A SOMMA HOLDER?
SHAPE OF H/S/S BROACH FORM MATERIAL GRADE OF PART IF NOT, WHAT ARE THE BLANK DIM. FOR
YOUR HOLDER AND DEGREE OF SPINDLE TILT
CLEARING ID ON INTERNAL? ARE ANY INTERNAL RADII
LESS THAN .0055 ON INT. BROACHES?
WHAT IS HOLDER SIZE OR SHANK DIA
EXTERNAL CLEARING ON OD? ARE ANY EXTERNAL RADII
LESS THAN .0055 ON EXT. BROACHES?
