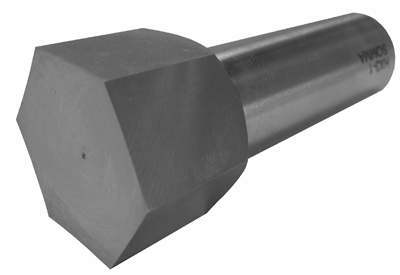

Internal Hex and Square Broaches with .750 Diameter Shanks








  • Superior, Hardened FORTE material
  • Ground all over
  • Angular clamping flat prevents pull out
  • Fit all 3/4" I.D. Rotating Broach Tools
  • Available in T15PM H.S.S. (Prices on application)
  • Hexagon go / no-go gages (with handle) are available upon request.
  • Broach Centering Gages available

Hex

Metric / Hex, for ORBHD/... Holders
3/4" (.750) Shank Diameter x 2-3/4" (2.750) OAL
NOMINAL
HEX SIZE
ACTUAL
A/F*
MAX CUTTING
DEPTH*
PART NO.
6.0MM .2395 .503 HXHD-6.0-F
7.0MM .2798 .588 HXHD-7.0-F
8.0MM .3187 .670 HXHD-8.0-F
9.0MM .3583 .752 HXHD-9.0-F
10.0MM .3979 .836 HXHD-10.0-F
11.0MM .4376 .919 HXHD-11.0-F
12.0MM .4774 1.003 HXHD-12.0-F
13.0MM .5170 1.086 HXHD-13.0-F
14.0MM .5566 1.169 HXHD-14.0-F
15.0MM .5968 1.254 HXHD-15.0-F
16.0MM .6369 1.338 HXHD-16.0-F
17.0MM .6770 1.346 HXHD-17.0-F
18.0MM .7169 1.366 HXHD-18.0-F
19.0MM .7568 1.385 HXHD-19.0-F
20.0MM .7972 1.405 HXHD-20.0-F
21.0MM .8375 1.469 HXHD-21.0-F
22.0MM .8779 1.469 HXHD-22.0-F
23.0MM .9173 1.469 HXHD-23.0-F
24.0MM .9566 1.469 HXHD-24.0-F
25.0MM .9960 1.469 HXHD-25.0-F
26.0MM 1.0354 1.469 HXHD-26.0-F
Inch / Hex, for ORBHD/... Holders
3/4" (.750) Shank Diameter x 2-3/4" (2.750) OAL
NOMINAL
HEX SIZE
ACTUAL
A/F*
MAX CUTTING
DEPTH*
PART NO.
1/4 .2525 .531 HXHD-1/4-F
9/32 .2837 .596 HXHD-9/32-F
5/16 .3152 .662 HXHD-5/16-F
11/32 .3467 .729 HXHD-11/32-F
3/8 .3782 .794 HXHD-3/8-F
13/32 .4097 .860 HXHD-13/32-F
7/16 .4412 .927 HXHD-7/16-F
15/32 .4727 .993 HXHD-15/32-F
1/2 .5042 1.059 HXHD-1/2-F
17/32 .5357 1.125 HXHD-17/32-F
9/16 .5672 1.191 HXHD-9/16-F
19/32 .5987 1.257 HXHD-19/32-F
5/8 .6302 1.323 HXHD-5/8-F
21/32 .6617 1.338 HXHD-21/32-F
11/16 .6932 1.354 HXHD-11/16-F
23/32 .7237 1.369 HXHD-23/32-F
3/4 .7562 1.385 HXHD-3/4-F
25/32 .7882 1.400 HXHD-25/32-F
13/16 .8202 1.469 HXHD-13/16-F
27/32 .8522 1.469 HXHD-27/32-F
7/8 .8842 1.469 HXHD-7/8-F
29/32 .9180 1.469 HXHD-29/32-F
15/16 .9517 1.469 HXHD-15/16-F
31/32 .9855 1.469 HXHD-31/32-F
1" 1.0192 1.469 HXHD-1-F

Square

Metric / Square, for ORBHD/... Holders
3/4" (.750) Shank Diameter x 2-3/4" (2.750) OAL
NOMINAL
SQUARE SIZE
ACTUAL
A/F*
MAX CUTTING
DEPTH*
PART NO.
6.00MM .2392 .503 SQHD-6.0-F
7.00MM .2798 .588 SQHD-7.0-F
8.00MM .3187 .670 SQHD-8.0-F
9.00MM .3583 .752 SQHD-9.0-F
10.00MM .3979 .836 SQHD-10.0-F
11.00MM .4376 .919 SQHD-11.0-F
12.00MM .4774 1.003 SQHD-12.0-F
13.00MM .5170 1.086 SQHD-13.0-F
14.00MM .5566 1.169 SQHD-14.0-F
15.00MM .5968 1.253 SQHD-15.0-F
16.00MM .6369 1.326 SQHD-16.0-F
17.00MM .6770 1.346 SQHD-17.0-F
18.00MM .7169 1.366 SQHD-18.0-F
19.00MM .7568 1.385 SQHD-19.0-F
20.00MM .7972 1.405 SQHD-20.0-F
Inch / Square, for ORBHD/... Holders
3/4" (.750) Shank Diameter x 2-3/4" (2.750) OAL
NOMINAL
SQUARE SIZE
ACTUAL
A/F*
MAX CUTTING
DEPTH*
PART NO.
9/32 .2837 .596 SQHD-9/32-F
5/16 .3152 .662 SQHD-5/16-F
11/32 .3467 .729 SQHD-11/32-F
3/8 .3782 .794 SQHD-3/8-F
13/32 .4097 .860 SQHD-13/32-F
7/16 .4412 .927 SQHD-7/16-F
15/32 .4727 .993 SQHD-15/32-F
1/2 .5042 1.059 SQHD-1/2-F
17/32 .5357 1.125 SQHD-17/32-F
9/16 .5672 1.191 SQHD-9/16-F
19/32 .5987 1.257 SQHD-19/32-F
5/8 .6302 1.323 SQHD-5/8-F
21/32 .6617 1.338 SQHD-21/32-F
11/16 .6932 1.354 SQHD-11/16-F
23/32 .7237 1.369 SQHD-23/32-F
3/4 .7562 1.385 SQHD-3/4-F
25/32 .7882 1.400 SQHD-25/32-F
13/16 .8202 1.469 SQHD-13/16-F

* Custom lengths, A/F, & Depths of Cut are available to quote upon request
