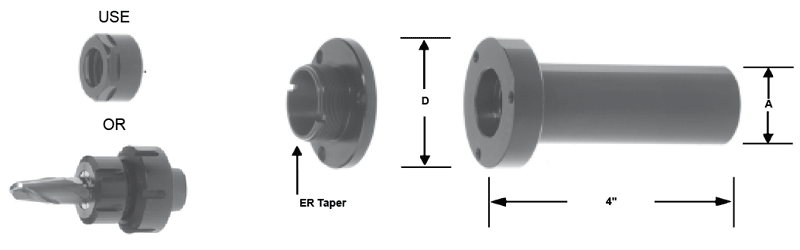

Floating (Adjustable) ER Collet Chucks

Quick Change or Standard



• Can compensate for up to .045" of machine mis-alignment.
• Uses standard ER collets
• CAN BE ORDERED AS A STANDARD COMPLETE COLLET CHUCK OR WITHOUT THE COLLET NUT FOR USE WITH THE QUICK CHANGE ER SYSTEM.

FLOATING (ADUSTABLE) ER QUICK CHANGE COLLET CHUCKS
"A"   CAT# FOR COMPLETE CAT# FOR QC SYS FOR USE WITH
SHANK "D" COLLET COLLET COLLET CHUCK COLLET CHUCK HEAD ASSY
DIA SERIES RANGE W/ COLLET NUT MINUS COLLET NUT   SEE PAGE
5/8" 1-1/2" ER16 1/16-13/32 SS062AFER16 SS062AFER16P ER11S
3/4" 1-1/2" ER16 1/16-13/32 SS075AFER16 SS075AFER16P ER11S
3/4" 2" ER20 1/16-1/2 SS075AFER20 SS075AFER20P ER16S
3/4" 2" ER25 1/16-5/8 SS075AFER25 SS075AFER25P ER20S
1" 1-1/2" ER16 1/16-13/32 SS100AFER16 SS100AFER16P ER11S
1" 2" ER20 1/16-1/2 SS100AFER20 SS100AFER20P ER16S
1" 2" ER25 1/16- 5/8 SS100AFER25 SS100AFER25P ER20S
1-1/4" 2' ER20 1/16-1/2 SS125AFER20 SS125AFER20P ER16S
1-1/4" 2" ER25 1/16-5/8 SS125AFER25 SS125AFER25P ER20S
1-1/4" 2-1/2" ER32 3/32-3/4 SS125AFER32 SS125AFER32P ER25S
1-1/4" 2-1/2" ER40 1/8-1" SS125AFER40 SS125AFER40P ER32S
1-1/2" 2" ER20 1/16-1/2 SS150AFER20 SS150AFER20P ER16S
1-1/2" 2" ER25 1/16-5/8 SS150AFER25 SS150AFER25P ER20S
1-1/2" 2-1/2" ER32 3/32-3/4 SS150AFER32 SS150AFER32P ER25S
1-1/2" 2-1/2" ER40 1/8-1" SS150AFER40 SS150AFER40P ER32S
2" 2-1/2" ER32 3/32-3/4 SS200AFER32 SS200AFER32P ER25S
2" 2-1/2" ER40 1/8-1" SS200AFER40 SS200AFER40P ER32S
22MM 1-1/2" ER16 1/16-13/32 SS22AFER16 SS22AFER16P ER11S
22MM 2" ER20 1/16-1/2 SS22AFER20 SS22AFER20P ER16S
22MM 2" ER25 1/16-5/8 SS22AFER25 SS22AFER25P ER20S
32MM 2" ER20 1/16-1/2 SS32AFER20 SS32AFER20P ER16S
32MM 2" ER25 1/16-5/8 SS32AFER25 SS32AFER25P ER20S
