Countersink Holders with Micro-Grain Carbide and T15PM Inserts



USE T15PM INSERTS FOR SLOW SURFACE FEET OR MACHINES THAT LACK RIGIDITY.

Note: Also available in
1", 2" and 2-1/2" lengths.

Also Available Tin Coated
Add TIN to Insert Part #

(Patent No. D396,865 / 5,827,019)

HOLDER PARTS
CAT. NO. ITEM

 DAV-CSK-SCR

TORX SCREW

 DAV-CSK-WR

TORX WRENCH

• COUNTERSINK RANGE .035 TO .325 DIA.
• LARGER RANGES AVAILABLE
• R.H. AND L.H. STOCKED
• BACKWORKING LEFT HAND CUT
• USED TO CHAMFER BACKEND OF PART I.D.
• REPEATABILITY WITHIN .001
• MINIMUM DOWN TIME


Left Hand

SHANK

DIA.

INCL'D.

ANGLE

HOLDER

CAT. NO.

CARBIDE INSERT

CAT. NO.

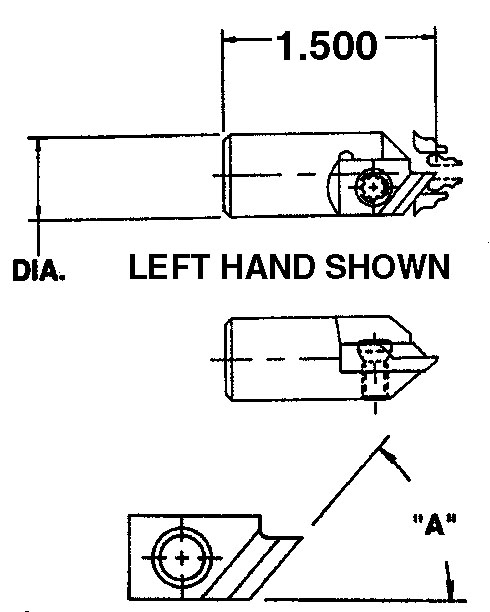

 "A"

T15PM INSERT

CAT. NO.

3/8

 82 DEG.

DAV-CSK-3/8

DAV-CSI-LH41

41 DEG.

DAV-CSI-LH41-P

3/8

 90 DEG.

DAV-CSK-3/8

DAV-CSI-LH45

45 DEG.

DAV-CSI-LH45-P

3/8

 100 DEG.

DAV-CSK-3/8

DAV-CSI-LH50

50 DEG.

DAV-CSI-LH50-P

3/8

 120 DEG.

DAV-CSK-3/8-120

DAV-CSI-LH60

60 DEG.

DAV-CSI-LH60-P

10MM

 90 DEG.

DAV-CSK-10MM

DAV-CSI-LH45

45 DEG.

DAV-CSI-LH45-P

7/16

 90 DEG.

DAV-CSK-7/16

DAV-CSI-LH45

45 DEG.

DAV-CSI-LH45-P

1/2

 82 DEG.

DAV-CSK-1/2

DAV-CSI-LH41

41 DEG.

DAV-CSI-LH41-P

1/2

 90 DEG.

DAV-CSK-1/2

DAV-CSI-LH45

45 DEG.

DAV-CSI-LH45-P

1/2

 100 DEG.

DAV-CSK-1/2

DAV-CSI-LH50

50 DEG.

DAV-CSI-LH50-P

1/2

120 DEG.

DAV-CSK-1/2-120

DAV-CSI-LH60

60 DEG.

DAV-CSI-LH60-P

5/8 90 DEG. DAV-CSK-5/8 DAV-CSI-LH45 45 DEG. DAV-CSI-LH45-P
3/4 90 DEG. DAV-CSK-3/4 DAV-CSI-LH45 45 DEG. DAV-CSI-LH450-P

Right Hand

SHANK

DIA.

INCL'D.

ANGLE

HOLDER

CAT. NO.

CARBIDE INSERT

CAT. NO.

 "A"

T15PM INSERT

CAT. NO.

3/8

 82 DEG.

DAV-CSK-3/8-R

DAV-CSI-RH41

41 DEG.

DAV-CSI-RH41-P

3/8

 90 DEG.

DAV-CSK-3/8-R

DAV-CSI-RH45

45 DEG.

DAV-CSI-RH45-P

3/8

 100 DEG.

DAV-CSK-3/8-R

DAV-CSI-RH50

50 DEG.

DAV-CSI-RH50-P

3/8

 120 DEG.

DAV-CSK-3/8-120-R

DAV-CSI-RH60

60 DEG.

DAV-CSI-RH60-P

10MM

 90 DEG.

DAV-CSK-10MMR

DAV-CSI-RH45

45 DEG.

DAV-CSI-RH45-P

7/16

 90 DEG.

DAV-CSK-7/16R

DAV-CSI-RH45

45 DEG.

DAV-CSI-RH45-P

1/2

 82 DEG.

DAV-CSK-1/2-R

DAV-CSI-RH41

41 DEG.

DAV-CSI-RH41-P

1/2

 90 DEG.

DAV-CSK-1/2-R

DAV-CSI-RH45

45 DEG.

DAV-CSI-RH45-P

1/2

 100 DEG.

DAV-CSK-1/2-R

DAV-CSI-RH50

50 DEG.

DAV-CSI-RH50-P

1/2

 120 DEG.

DAV-CSK-1/2-120-R

DAV-CSI-RH60

60 DEG.

DAV-CSI-RH60-P

5/8  90 DEG. DAV-CSK-5/8-R DAV-CSI-RH45 45 DEG. DAV-CSI-RH45-P
3/4 90 DEG. DAV-CSK-3/4-R DAV-CSI-RH45 45 DEG. DAV-CSI-RH45-P
