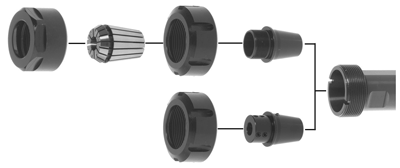

SAVE TIME AND MONEY WITH THE QUICK CHANGE SYSTEM
• CHANGE A DULL TOOL IN SECONDS
• ELIMINATE TOUCHING OFF WHEN CHANGING A DULL TOOL
• HAVE SPARE TOOLING PRESET AND READY FOR QUICK TOOL CHANGES
• ALL SHANKS HAVE A TAPPED COOLANT PORT
• USE A BORING TOOL FOR ONE JOB AND A DRILL FOR THE NEXT WITHOUT REMOVING THE SHANK FROM THE MACHINE

ER Collet Quick Change Shanks

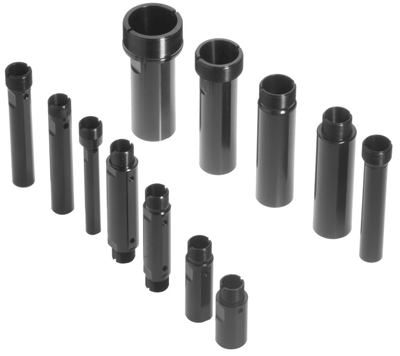

STRAIGHT SHANKS FOR QUICK CHANGE ER COLLET SYSTEM
(COLLET NUT NOT INCLUDED)
SHANK  OAL HEAD MAX CAP
DIA   ASS'Y COLLET STR HOLE SHANK PART#
1/2" 4-1/2" ER11S 1/4" 3/8" SS050QCER11
5/8" 4-1/2" ER11S 1/4" 3/8" SS062QCER11
3/4" 4-1/2" ER11S 1/4"  3/8" SS075QCER11
3/4" 4-1/2" ER16S 13/32" 1/2" SS075QCER16
3/4" 4-1/2" ER20S 1/2" 5/8" SS075QCER20
1" 3" ER11S 1/4" 3/8" SS100QCER11S
1" 4-1/2" ER11S 1/4" 3/8" SS100QCER11
1" 4-1/2" ER16S 13/32" 1/2" SS100QCER16
1" 4-1/2" ER20S 1/2" 5/8" SS100QCER20
1" 4-1/2" ER25S 5/8" 3/4" SS100QCER25
1-1/4" 4-1/2" ER16S 13/32" 1/2" SS125QCER16
1-1/4" 4-1/2" ER20S 1/2" 5/8" SS125QCER20
1-1/4"  4-1/2" ER25S 5/8" 3/4" SS125QCER25
1-1/2" 4-1/2" ER20S 1/2" 5/8" SS150QCER20
1-1/2" 6" ER25S 5/8" 3/4" SS150QCER25
1-1/2" 6" ER32S 3/4" POA SS150QCER32
2" 6" ER25S 5/8" 3/4" SS200QCER25
2" 6" ER32S 3/4" POA SS200QCER32
16MM 4-1/2" ER11S 1/4" 3/8" SS16QCER11
20MM 71MM ER11S 1/4" 3/8" SS20QCER11S
20MM 114MM ER11S 1/4" 3/8" SS20QCER11
22MM 118MM ER11S 1/4' 3/8" SS22QCER11
22MM 4-1/2" ER16S 13/32" 1/2" SS22QCER16
22MM 4-1/2" ER20S 1/2" 5/8" SS22QCER20
25MM 60MM ER11S 1/4" 3/8" SS25QCER11S
25MM 95MM ER11S 1/4" 3/8" SS25QCER11
32MM 118MM ER16S 13/32" 1/2" SS32QCER16
32MM 4-1/2" ER20S 1/2" 5/8" SS32QCER20
32MM 4-1/2" ER25S 5/8" 3/4" SS32QCER25


ER Collet Quick Change Shanks

DOUBLE ENDED STRAIGHT SHANKS FOR QUICK CHANGE ER SYSTEM
(COLLET NUTS NOT INCLUDED)
SHANK  OAL HEAD MAX CAP
DIA   ASS'Y COLLET STR HOLE SHANK PART#
3/4" 3-3/4" ER11S 1/4" 3/8" SS075QCDEER11S
3/4" 4-1/2" ER11S 1/4" 3/8" SS075QCDEER11
1" 3-3/4" ER11S 1/4" 3/8" SS100QCDEER11S
1" 4-1/2" ER11S 1/4" 3/8" SS100QCDEER11
1" 4-1/2" ER16S 13/32" 1/2" SS100QCDEER16
20MM 95MM ER11S 1/4" 3/8" SS20QCDEER11
22MM 100MM ER11S 1/4" 3/8" SS22QCDEER11S
22MM 114MM ER11S 1/4" 3/8" SS22QCDEER11
25MM 95MM ER11S 1/4" 3/8" SS25QCDEER11
32MM 100MM ER16S 13/32" 1/2" SS32QCDEER16S
32MM 118MM ER16S 13/32" 1/2" SS32QCDEER16
