Universal ® Double Taper Collets





THE FOLLOWING COLLET CHUCKS ARE AVAILABLE FOR THESE COLLETS:
STRAIGHT SHANK
MORSE TAPER SHANK
JACOBS INTERNAL TAPER
BRIDGEPORT R8 SHANK
#9 B&S TAPER SHANK

CALL FOR PRICE AND AVAILABILITY.

How to Order:
• Order by part number listed and tool shank size.
• Available in all letter, number & fractional sizes within range.
• Other sizes available to special order.

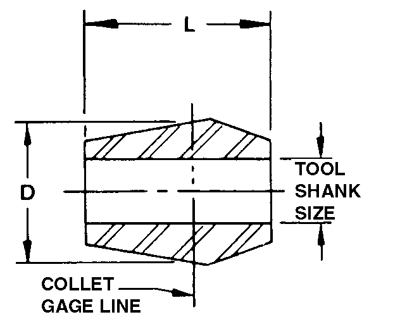

 COLLET   COLLET
RANGE TYPE PART NO. D L
1/16 to 1/4 OW *55021 .39 .50
1/8 to 3/8 WW *55060 .59 .75
1/8 to 1/2 Y *55097 .80 1.06
1/4 to 3/4 Z *55132 1.12 1.50
3/8 to 1" ZZ *55165 1.56 2.00
3/4 to 1-1/2 XZ *55194 2.20 2.50
