JCO (Johnson Style) Hollow Ground Cut-Off Blades


JCO (Johnson Style) Hollow Ground Cut-Off Blades - H.S.S.


JCO (Johnson Style) Hollow Ground Cut-Off Blades

JCO (Johnson Style) Hollow Ground Cut-Off Blades

CUT-OFF ANGLE HAS TO BE SHARPENED BEFORE USING TO SUIT INDIVIDUAL APPLICATION.
Ground all over.

M2 - GENERAL PURPOSE WITH EXCELLENT TOUGHNESS
COBALT- HIGHEST HEAT RESISTANCE, HIGHER RPM APPLICATIONS
T15PM - EXCELLENT FOR DIFFICULT TO MACHINE MATERIALS WITH GOOD HEAT RESISTANCE

        M2 STEEL COBALT STEEL T15PM STEEL

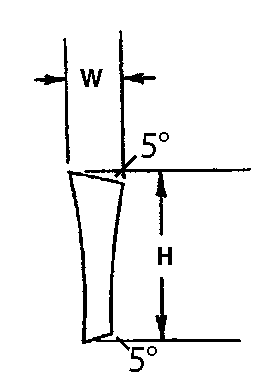

   W     H       L ORDERING#   ORDERING#  ORDERING#
 3/64     1/2    4-1/2    BL332    BL332C    BL332V
 1/16    1/2    4-1/2    BL432    BL432C    BL432V
 5/64    1/2    4-1/2    BL532    BL532C    BL532V
 3/32    1/2    4-1/2    BL632    BL632C    BL632V
  1/8    1/2    4-1/2    BL832    BL832C    BL832V
 1/16  11/16      5"    BL444    BL444C    BL444V
 3/32  11/16      5"    BL644    BL644C    BL644V
  1/8  11/16      5"    BL844    BL844C    BL844V
 5/32  11/16      5"    BL1044    BL1044C    BL1044V
 3/16  11/16      5"    BL1244    BL1244C    BL1244V
  1/4  11/16      5"    BL1644    BL1644C    BL1644V
 1/16  13/16      6"    BL452    BL452C    BL452V
 3/32  13/16      6"    BL652    BL652C    BL652V
  1/8  13/16      6"    BL852    BL852C    BL852V
 5/32  13/16      6"    BL1052    BL1052C    BL1052V
 3/16  13/16      6"    BL1252    BL1252C    BL1252V
  1/4  13/16      6"    BL1652    BL1652C    BL1652V


CUT-OFF BLADE COATING OPTIONS:
(FOR THE OPTIONS LISTED, ADD THE SUFFIX LISTED BELOW TO THE ORDERING NUMBER)

-TIN A GOOD GENERAL PURPOSE COATING FOR METAL CUTTING
-TICN THIS COATING IS RECOMMENDED FOR MACHINING HIGH CARBON STEEL, HIGH SILICON ALUMINUMS AND TOOL STEELS
-TIALN FOR MACHINING CAST IRON, HIGH NICKEL AND TITANIUM ALLOYS, HARDENED STEELS AND STAINLESS STEELS. GOOD CHOICE FOR INTERRUPTED APPLICATIONS

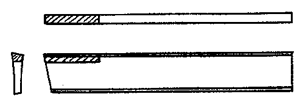

JCO (Johnson Style) Hollow Ground Cut-Off Blades - Carbide Tipped




STYLE “Y”
FOR USE ON: FRONT SLIDE
R.H. / REAR SLIDE R.H.
OR VERTICAL SLIDE L.H.




STYLE “X”
FOR USE ON: FRONT SLIDE
L.H. / REAR SLIDE L.H.
OR VERTICAL SLIDE R.H.


CUT-OFF ANGLE HAS TO BE SHARPENED BEFORE USING TO SUIT INDIVIDUAL APPLICATION.


MICROGRAIN CARBIDE- INCREASED FEEDS, SHOCK RESISTANT FOR INTERRUPTED CUTS.

  STYLE "Y"         STYLE "X"
 ORDERING#    W     H       L  ORDERING#
CHBL432-Y-MIC  1/16    1/2    4-1/2 CHBL432-X-MIC
CHBL532-Y-MIC  5/54    1/2    4-1/2 CHBL532-X-MIC
CHBL632-Y-MIC  3/32    1/2    4-1/2 CHBL632-X-MIC
CHBL832-Y-MIC   1/8    1/2    4-1/2 CHBL832-X-MIC
CHBL444-Y-MIC  1/16  11/16      5" CHBL444-X-MIC
CHBL644-Y-MIC  3/32  11/16      5" CHBL644-X-MIC
CHBL844-Y-MIC   1/8  11/16      5" CHBL844-X-MIC
CHBL1044-Y-MIC  5/32  11/16      5" CHBL1044-X-MIC
CHBL1244-Y-MIC  3/16  11/16      5" CHBL1244-X-MIC
CHBL452-Y-MIC  1/16  13/16      6" CHBL452-X-MIC
CHBL652-Y-MIC  3/32  13/16      6" CHBL652-X-MIC
CHBL852-Y-MIC   1/8  13/16      6" CHBL852-X-MIC
CHBL1052-Y-MIC  5/32  13/16      6" CHBL1052-X-MIC
CHBL1252-Y-MIC  3/16  13/16      6" CHBL1252-X-MIC
CHBL1652-Y-MIC   1/4  13/16      6" CHBL1652-X-MIC
