Inside Deburring Cutters

Inside Deburring Cutters

High Speed Steel One Piece Inside Deburring Cutters

Teeth on these cutters are furnished for quick light chamfering only. Stocked in 30° C/L and 45° C/L. The Inside Deburring Cutter is designed so that one tool can deburr many different hole diameters. The multi-flute design is self-piloting. Holding of parts by hand is not recommended.

INSIDE DEBURRING CUTTERS High Speed Steel
1/4" Dia. Shanks x 2-1/4" Long
HEAD NOSE PNT 60° INCL'D HEAD NOSE PNT 90° INCL'D
DIA OR FLAT PART# DIA OR FLAT PART#
1/4" P ID-1/4-30 1/4" P ID-1/4-45
5/16" 1/32" ID-5/16-30 5/16" 1/16" ID-5/16-45
3/8" P ID-3/8-30 3/8" P ID-3/8-45
1/2" 9/64" IDS-1/2-30 1/2" 1/8" IDS-1/2-45
1/2" P IDL-1/2-30 1/2" P IDL-1/2-45
5/8" 13/64" IDS-5/8-30 5/8" 1/8" IDS-5/8-45

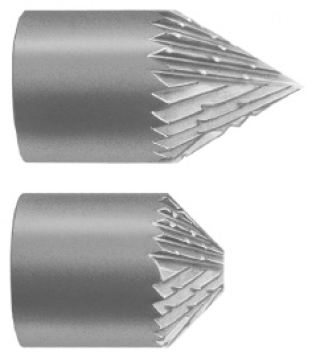

High Speed Steel One PIece Inside Deburring Cutter Heads with Threaded I.D.

Tools are furnished without shanks.

High Speed Steel One PIece Inside Deburring Cutter Heads with Threaded I.D.


HEAD NOSE PNT OVERALL I.D 60° INCL'D
DIA OR FLAT LENGTH THREAD PART#
5/8" 3/64" 7/8" 1/4"-28 ID-5/8-30
3/4" 1/32" 1" 5/16"-24 ID-3/4-30
7/8" 5/32" 1" 3/8"-24 ID-7/8-30
1" 9/32" 1-1/8" 3/8"-24 IDS-1-30
1" 1/8" 1-1/8" 3/8"-24 IDL-1-30
1-1/8" 1/8" 1-1/8" 3/8"-24 ID-1-1/8-30
1-1/4" 17/32" 1" 3/8"-24 IDS-1-1/4-30
1-1/4" 3/32" 1-1/4" 3/8"-24 IDL-1-1/4-30
1-1/2" 31/64" 1-1/8" 1/2"-20 IDS-1-1/2-30
1-1/2" 13/64" 1-1/2" 1/2"-20 IDL-1-1/2-30
1-3/4" 3/4" 1-1/4" 1/2"-20 IDS-1-3/4-30
1-3/4" 5/16" 1-1/2" 1/2"-20 IDL-1-3/4-30
2" 63/64" 1-1/4" 5/8"-18 IDS-2-30
2" 27/32" 1-1/4" 5/8"-18 IDL-2-30
2-1/4" 1-3/32" 1-3/8" 3/4"-16 IDS-2-1/4-30
2-1/4" 33/64" 1-7/8" 3/4"-16 IDL-2-1/4-30
2-1/2" 1-31/64" 1-1/4" 3/4"-16 IDS-2-1/2-30
2-1/2" 29/32" 1-3/4" 3/4"-16 IDL-2-1/2-30
3" 1-63/64" 1-1/4" 1"-14 ID-3-30

HEAD NOSE PNT OVERALL I.D. 90° INCL'D
DIA OR FLAT LENGTH THREAD PART#
5/8" 1/8" 11/16" 1/4"-28 ID-5/8-45
3/4" P 13/16" 5/16"-24 ID-3/4-45
7/8" 5/32" 1" 3/8"-24 ID-7/8-45
1" 1/4" 7/8" 3/8"-24 IDS-1-45
1" P 7/8" 3/8"-24 IDL-1-45
1-1/4" 3/8" 3/4" 3/8"-24 IDS-1-1/4-45
1-1/4" P 1" 3/8"-24 IDL-1-1/4-45
1-1/2" 1/2" 7/8" 1/2"-20 IDS-1-1/2-45
1-1/2" 1/4" 1-1/16" 1/2"-20 IDL-1-1/2-45
1-3/4" 5/8" 7/8" 1/2"-20 ID-1-3/4-45
2" 1" 1" 5/8"-18 IDS-2-45
2" 1/4" 1-1/2" 5/8"-18 IDL-2-45
2-1/4" 1" 1" 5/8"-18 IDS-2-1/4-45
2-1/4" 1/4" 1-3/8" 5/8"-18 IDL-2-1/4-45
2-1/2" 3/4" 1-3/8" 3/4"-16 IDS-2-1/2-45
2-1/2" 1/4" 1-5/8" 3/4"-16 IDL-2-1/2-45
3" 3/4" 1-3/4" 1"-14 IDS-3-45
3" 1/4" 1-7/8" 1"-14 IDL-3-45
