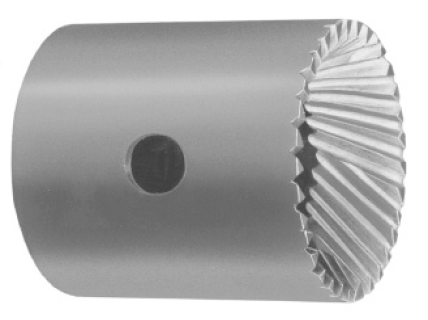

High Speed Steel Outside Deburring Cutter Heads with Threaded I.D.

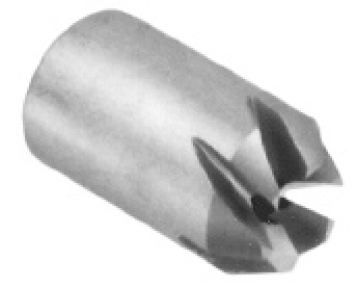

NOTE: Tools O-0, O-1, O-2, O-3, O-20, O-21, and O-22 have the tooth pattern illustrated above.

Tools are furnished without shanks.


Outside Deburring Cutters are designed with shear-type cutting teeth to eliminate burrs on diameters of tubes and rods. One tool can handle various parts, may be reground, and can be provided in carbide.

30° (60° Included) OUTSIDE DEBURRING CUTTERS High Speed Steel
MAX "H" "D" "B" "L" "C" "T" PART#
CUTTING  RECESS MOUTH BODY BODY COOLANT I.D.
DIA HOLE DIA DIA LENGTH HOLE THREAD
1/8" 1/16" 5/32" 1/2" 7/8" - 1/4"-28 O-0
3/16" 5/32" 7/32" 1/2" 7/8" - 1/4"-28 O-1
1/4" 13/64" 19/64" 1/2" 7/8" - 1/4"-28 O-2
5/16" .242" 23/64" 1/2" 7/8" - 1/4"-28 O-3
3/8" 9/32" 7/16" 5/8" 7/8" 1/8" 1/4"-28 O-4
1/2" .332" 9/16" 3/4" 1" 3/16" 3/8"-24 O-5
5/8" 7/16" 11/16" 7/8" 1" 3/16" 3/8"-24 O-6
3/4" 17/32" 53/64" 1" 1" 3/16" 3/8"-24 O-7
1" 45/64" 1-5/64" 1-1/4" 1-3/8" 1/4" 1/2"-20 O-8
1-1/4" 7/8" 1-21/64" 1-1/2" 1-3/8" 1/4" 1/2"-20 O-9
1-1/2" 1-3/64" 1-19/32" 1-3/4" 1-5/8" 1/4" 5/8"-18 O-10
2" 1-13/32" 2-7/64" 2-3/8" 1-7/8" 5/16" 3/4"-16 O-11
2-1/2" 1-3/4" 2-39/64" 2-7/8" 2-1/8" 5/16" 3/4"-16 O-12
3" 2-3/32" 3-1/8" 3-3/8" 2-1/2" 7/16" 3/4"-16 O-13
4" 2-13/16" 4-1/8" 4-3/8" 3" 7/16" 1"-14 O-14
45° (90° Included) OUTSIDE DEBURRING CUTTERS High Speed Steel
1/8" 5/64" 3/16" 1/2" 7/8" - 1/4"-28 O-20
3/16" 7/64" 7/32" 1/2" 7/8" - 1/4"-28 O-21
1/4" 9/64" 23/64" 1/2" 7/8" - 1/4"-28 O-22
3/8" 3/16" 7/16" 5/8" 7/8" 1/8" 1/4"-28 O-23
1/2" 1/4" 9/16" 3/4" 1" 3/16" 3/8"-24 O-24
3/4" 3/8" 13/16" 1" 1" 3/16" 3/8"-24 O-25
1" 1/2" 1-5/64" 1-1/4" 1-3/8" 1/4" 1/2"-20 O-26
1-1/2" 3/4" 1-19/32" 1-3/4" 1-1/2" 1/4" 5/8"-18 O-27
2" 15/16" 2-7/64" 2-3/8" 1-3/4" 5/16" 3/4"-16 O-28
3" 1-7/16" 3-1/8" 3-1/2" 2-1/4" 7/16" 3/4"-16 O-29
4" 1-15/16" 4-1/8" 4-3/8" 2-5/8" 7/16" 1"-14 O-30
