Threaded Tool Shanks

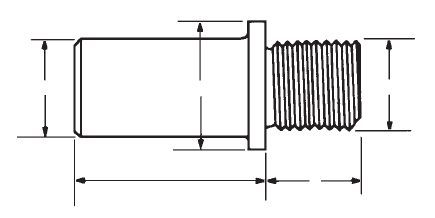

Straight Shanks



STRAIGHT SHANKS Steel
"H" "E" "P" "O" "A" PART#
THREAD SHANK THREAD SHANK SHOULDER
SIZE DIA LENGTH LENGTH DIA
1/4"-28 1/4" 1/4" 1-3/4" 3/8" 4
1/4"-28 3/8" 1/4" 1-3/4" 3/8" E-2
1/4"-28 1/2" 1/4" 1-3/4" 1/2" G-2
5/16"-24 1/4" 5/16" 1-3/4" 7/16" 14
5/16"-24 3/8" 5/16" 1-3/4" 7/16" E-12
5/16"-24 1/2" 5/16" 1-3/4" 1/2" G-12
3/8"-24 1/4" 3/8" 1-3/4" 1/2" 24
3/8"-24 3/8" 3/8" 1-3/4" 1/2" E-22
3/8"-24 1/2" 3/8" 1-3/4" 1/2" G-22
3/8"-24 5/8" 3/8" 1-3/4" 5/8" I-22
1/2"-20 3/8" 1/2" 1-3/4" 5/8" E-32
1/2"-20 1/2" 1/2" 1-3/4" 5/8" G-32
1/2"-20 5/8" 1/2" 1-3/4" 5/8" I-32
1/2"-20 3/4" 1/2" 1-3/4" 3/4" J-33
1/2"-20 1" 1/2" 2" 1" L-33
5/8"-18 3/8" 5/8" 1-3/4" 3/4" E-42
5/8"-18 1/2" 5/8" 1-3/4" 3/4" G-42
5/8"-18 5/8" 5/8" 1-3/4" 3/4" I-42
5/8"-18 3/4" 5/8" 1-3/4" 7/8" J-43
5/8"-18 1" 5/8" 2" 1" L-43
3/4"-16 1/2" 5/8" 1-3/4" 7/8" G-54
3/4"-16 5/8" 5/8" 1-3/4" 7/8" I-52
3/4"-16 3/4" 5/8" 1-3/4" 7/8" J-53
3/4"-16 1" 5/8" 2" 1" L-53
1"-14 1" 3/4" 2" 1-3/16" L-63
1-1/4"-12 1" 3/4" 2" 1-1/2" L-73

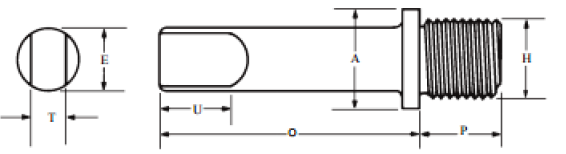

Straight Shank with Tang




STRAIGHT SHANKS WITH TANG Steel
"H" "E" "P" "O" "A" "U" "T" PART#
THREAD SHANK THREAD SHANK SHOULDER TANG TANG
SIZE DIA LENGTH LENGTH DIA LENGTH THICKNESS
1/4"-28 1/4" 1/4" 1-3/4" 3/8" 5/16" .122 TX-4
1/4"-28 13/32" 1/4" 1-3/4" 13/32" 7/16" .242 TZ-3
5/16"-24 1/4" 5/16" 1-3/4" 7/16" 5/16" .122 TX-14
5/16"-24 13/32" 5/16" 1-3/4" 7/16" 7/16" .242 TZ-13
3/8"-24 1/4" 3/8" 1-3/4" 1/2" 5/16" .122 TX-24
3/8"-24 13/32" 3/8" 1-3/4" 1/2" 7/16" .242 TZ-23
1/2"-20 13/32" 1/2" 1-3/4" 5/8" 7/16" .242 TZ-33
1/2"-20 9/16" 1/2" 1-3/4" 5/8" 1/2" .303 TH-33
5/8"-18 13/32" 5/8" 1-3/4" 7/8" 7/16" .242 TZ-43
5/8"-18 9/16" 5/8" 1-3/4" 3/4" 1/2" .303 TH-43
3/4"-16 9/16" 5/8" 1-3/4" 7/8" 1/2" .303 TH-53
