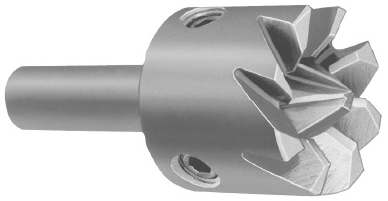

Tube End Chamfering Mills




Caution: holding of tubing by hand is not recommended.

The Chatterless™ design of the Tube End Chamfering Mills have cutting edges that are designed to provide a shearing action that yields a smooth machined surface. The standard tool produces a 30° angle on the tube inside diameter and 45° on the outside diameter. Other angles may be ordered as specials. This series of tools is offered in a range of sizes to accommodate pipe and tubing from 3/16" to 2-1/2" outside diameters. All models are adjustable for different wall thicknesses. The cutting teeth are developed as to preclude chatter and provide ample chip room for every operating condition. Moderate speeds of about 100 R.P.M. for 1-inch steel tubing to about 200 R.P.M. for 1/2-inch tubing are recommended for these cutters. It is advisable to start at a slower speed on any given material or size and increase until best results are obtained.

TUBE END CHAMFERING MILLS High Speed Steel
STANDARD TUBING WALL THICKNESS PLUG SHANK SHANK PART#
PIPE SIZE O.D. MIN. MAX. DIA DIA LENGTH
  3/16" .022" .045" .152" 1/4" 7/8" T-6
  1/4" .022" .065" .228" 1/4" 1" T-8
  5/16" .022" .095" .290" 1/4" 1" T-10
1/8" 3/8" .022" .095" .353" 3/8" 1" T-12
  7/16" .028" .095" .409" 3/8" 1" T-14
1/4" 1/2" .028" .095" .472" 3/8" 1" T-16
  9/16" .028" .120" .534" 1/2" 1" T-18
3/8" 5/8" .028" .120" .597" 1/2" 1" T-20
1/2" 3/4" .028" .120" .722" 1/2" 1" T-24
  7/8" .022" .156" .847" 1/2" 1" T-28
3/4" 1" .035" .156" .965" 1/2" 1-5/16" T-32




Tools are furnished without shanks.

TUBE END CHAMFERING MILLS Heads
STANDARD TUBING WALL THICKNESS PLUG I.D. PART#
PIPE SIZE O.D. MIN. MAX. DIA THREAD
  1-1/8" .035" .187" 1.090" 1/2"-20 T-36
1" 1-1/4" .035" .187" 1.215" 5/8"-18 T-40
  1-5/16" .035" .187" 1.280" 5/8"-18 T-42
  1-3/8" .035" .187" 1.340" 5/8"-18 T-44
  1-1/2" .035" .250" 1.465" 3/4"-16 T-48
1-1/4" 1-5/8" .035" .250" 1.590" 3/4"-16 T-52
1-1/2" 1-3/4" .035" .250" 1.715" 3/4"-16 T-56
  1-7/8" .035" .250" 1.840" 3/4"-16 T-60
  2" .035" .312" 1.965" 1"-14 T-64
2" 2-1/4" .058" .312" 2.195" 1"-14 T-72
  2-3/8" .065" .375" 2.310" 1"-14 T-76
  2-1/2" .065" .375" 2.435" 1"-14 T-80
