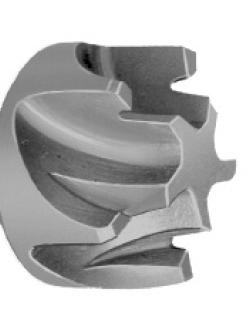

Tube End Form Cutter Heads

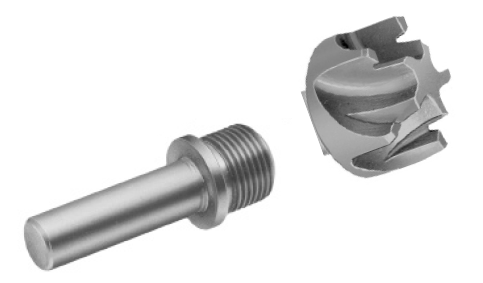

These tube end forming cutters have a threaded back for use with separately ordered shanks.

TUBE END FORMING CUTTERS Heads
TUBING WALL THICKNESS I.D. HEAD OVERALL PART#
SIZE GAUGE INCH THREAD DIA LENGTH
7/8" 22 .028" 1/2"-20 1-1/4" 1-1/8" A-14-028
7/8" 21 .032" 1/2"-20 1-1/4" 1-1/8" A-14-032
7/8" 20 .035" 1/2"-20 1-1/4" 1-1/8" A-14-035
7/8" 18 .049" 1/2"-20 1-1/4" 1-1/8" A-14-049
7/8" 17 .058" 1/2"-20 1-1/4" 1-1/8" A-14-058
7/8" 16 .065" 1/2"-20 1-1/4" 1-1/8" A-14-065
7/8" 14 .083" 1/2"-20 1-1/4" 1-1/8" A-14-083
7/8" 13 .095" 1/2"-20 1-1/4" 1-1/8" A-14-095
1" 22 .028" 1/2"-20 1-3/8" 1-1/8" A-16-028
1" 20 .035" 1/2"-20 1-3/8" 1-1/8" A-16-035
1" 18 .049" 1/2"-20 1-3/8" 1-1/8" A-16-049
1" 17 .058" 1/2"-20 1-3/8" 1-1/8" A-16-058
1" 16 .065" 1/2"-20 1-3/8" 1-1/8" A-16-065
1" 14 .083" 1/2"-20 1-3/8" 1-1/8" A-16-083
1" 13 .095" 1/2"-20 1-3/8" 1-1/8" A-16-095
1" 11 .120" 1/2"-20 1-3/8" 1-1/8" A-16-120
1-1/8" 22 .028" 1/2"-20 1-1/2" 1-1/8" A-18-028
1-1/8" 20 .035" 1/2"-20 1-1/2" 1-1/8" A-18-035
1-1/8" 18 .049" 1/2"-20 1-1/2" 1-1/8" A-18-049
1-1/8" 17 .058" 1/2"-20 1-1/2" 1-1/8" A-18-058
1-1/8" 16 .065" 1/2"-20 1-1/2" 1-1/8" A-18-065
1-1/4" 20 .035" 1/2"-20 1-1/2" 1-1/8" A-20-035
1-1/4" 18 .049" 1/2"-20 1-1/2" 1-1/8" A-20-049
1-1/4" 16 .065" 1/2"-20 1-1/2" 1-1/8" A-20-065
1-1/4" 14 .083" 1/2"-20 1-1/2" 1-1/8" A-20-083
1-1/4" 11 .120" 1/2"-20 1-1/2" 1-1/8" A-20-120
1-3/8" 20 .035" 1/2"-20 1-5/8" 1-1/8" A-22-035
1-3/8" 18 .049" 1/2"-20 1-5/8" 1-1/8" A-22-049
1-1/2" 18 .049" 5/8"-18 2" 1-1/4" A-24-049
1-1/2" 17 .058" 5/8"-18 2" 1-1/4" A-24-058
1-1/2" 16 .065" 5/8"-18 2" 1-1/4" A-24-065
1-1/2" 14 .083" 5/8"-18 2" 1-1/4" A-24-083
1-1/2" 13 .095" 5/8"-18 2" 1-1/4" A-24-095
1-5/8" 16 .065" 5/8"-18 2" 1-1/4" A-26-065
