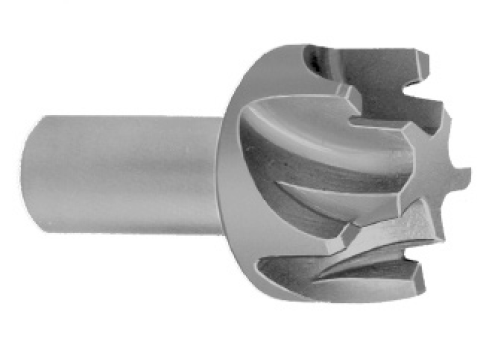

Tube End Form Cutters




Caution: holding of tubing by hand is not recommended.

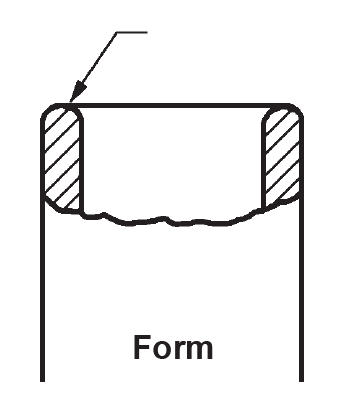

These cutters are used to produce a smooth, round lip on all types of tubing. These include steel, copper, aluminum, plastic and other materials. They are not recommended for tubing with irregular wall thickness or for interrupted cutting. Speeds of about 50 to 350 RPM are suggested for these cutters. It is advisable to start at a slower speed on any given material or size, and then increase the speed until best results are obtained. Larger sizes (A-6 x .025 and up) can be supplied in carbide. Special cutting shapes can also be provided.
TUBE END FORMING CUTTERS
TUBING WALL THICKNESS SHANK HEAD OVERALL SHANK PART#
SIZE GAUGE INCH DIA DIA LENGTH LENGTH
1/8" 31 .010" 1/4" 1/4" 2-1/4" 2" A-2-010
1/8" 27 .016" 1/4" 1/4" 2-1/4" 2" A-2-016
1/8" 25 .020" 1/4" 1/4" 2-1/4" 2" A-2-020
1/8" 22 .028" 1/4" 1/4" 2-1/4" 2" A-2-028
1/8" 21 .032" 1/4" 1/4" 2-1/4" 2" A-2-032
1/8" 21 .035" 1/4" 1/4" 2-1/4" 2" A-2-035
3/16" 25 .020" 3/8" 1/2" 1-9/16" 1" A-3-020
3/16" 22 .028" 3/8" 1/2" 1-9/16" 1" A-3-028
3/16" 21 .032" 3/8" 1/2" 1-9/16" 1" A-3-032
3/16" 20 .035" 3/8" 1/2" 1-9/16" 1" A-3-035
1/4" 25 .020" 3/8" 1/2" 1-9/16" 1" A-4-020
1/4" 22 .028" 3/8" 1/2" 1-9/16" 1" A-4-028
1/4" 21 .032" 3/8" 1/2" 1-9/16" 1" A-4-032
1/4" 20 .035" 3/8" 1/2" 1-9/16" 1" A-4-035
1/4" 18 .049" 3/8" 1/2" 1-9/16" 1" A-4-049
1/4" 16 .065" 3/8" 1/2" 1-9/16" 1" A-4-065
5/16" 25 .020" 3/8" 9/16" 1-9/16" 1" A-5-020
5/16" 22 .028" 3/8" 9/16" 1-9/16" 1" A-5-028
5/16" 21 .032" 3/8" 9/16" 1-9/16" 1" A-5-032
5/16" 20 .035" 3/8" 9/16" 1-9/16" 1" A-5-035
5/16" 18 .049" 3/8" 9/16" 1-9/16" 1" A-5-049
5/16" 17 .058" 3/8" 9/16" 1-9/16" 1" A-5-058
5/16" 16 .065" 3/8" 9/16" 1-9/16" 1" A-5-065
3/8" 25 .020" 1/2" 3/4" 1-9/16" 1" A-6-020
3/8" 22 .028" 1/2" 3/4" 1-9/16" 1" A-6-028
3/8" 21 .032" 1/2" 3/4" 1-9/16" 1" A-6-032
3/8" 20 .035" 1/2" 3/4" 1-9/16" 1" A-6-035
3/8" 18 .049" 1/2" 3/4" 1-9/16" 1" A-6-049
3/8" 17 .058" 1/2" 3/4" 1-9/16" 1" A-6-058
3/8" 16 .065" 1/2" 3/4" 1-9/16" 1" A-6-065
7/16" 25 .020" 1/2" 3/4" 1-9/16" 1" A-7-020
7/16" 22 .028" 1/2" 3/4" 1-9/16" 1" A-7-028
7/16" 21 .032" 1/2" 3/4" 1-9/16" 1" A-7-032
7/16" 20 .035" 1/2" 3/4" 1-9/16" 1" A-7-035
7/16" 18 .049" 1/2" 3/4" 1-9/16" 1" A-7-049
7/16" 16 .065" 1/2" 3/4" 1-9/16" 1" A-7-065
1/2" 25 .020" 1/2" 3/4" 1-9/16" 1" A-8-020
1/2" 22 .028" 1/2" 3/4" 1-9/16" 1" A-8-028
1/2" 21 .032" 1/2" 3/4" 1-9/16" 1" A-8-032
1/2" 20 .035" 1/2" 3/4" 1-9/16" 1" A-8-035
1/2" 18 .049" 1/2" 3/4" 1-9/16" 1" A-8-049
1/2" 17 .058" 1/2" 3/4" 1-9/16" 1" A-8-058
1/2" 16 .065" 1/2" 3/4" 1-9/16" 1" A-8-065
1/2" 14 .083" 1/2" 3/4" 1-9/16" 1" A-8-083
9/16" 22 .028" 1/2" 7/8" 1-5/8" 1" A-9-028
9/16" 20 .035" 1/2" 7/8" 1-5/8" 1" A-9-035
9/16" 18 .049" 1/2" 7/8" 1-5/8" 1" A-9-049
9/16" 16 .065" 1/2" 7/8" 1-5/8" 1" A-9-065
9/16" 13 .095" 1/2" 7/8" 1-5/8" 1" A-9-095
5/8" 22 .028" 1/2" 7/8" 1-5/8" 1" A-10-028
5/8" 21 .032" 1/2" 7/8" 1-5/8" 1" A-10-032
5/8" 20 .035" 1/2" 7/8" 1-5/8" 1" A-10-035
5/8" 18 .049" 1/2" 7/8" 1-5/8" 1" A-10-049
5/8" 17 .058" 1/2" 7/8" 1-5/8" 1" A-10-058
5/8" 16 .065" 1/2" 7/8" 1-5/8" 1" A-10-065
5/8" 14 .083" 1/2" 7/8" 1-5/8" 1" A-10-083
5/8" 13 .095" 1/2" 7/8" 1-5/8" 1" A-10-095
3/4" 22 .028" 1/2" 1" 1-5/8" 1" A-12-028
3/4" 21 .032" 1/2" 1" 1-5/8" 1" A-12-032
3/4" 20 .035" 1/2" 1" 1-5/8" 1" A-12-035
3/4" 18 .049" 1/2" 1" 1-5/8" 1" A-12-049
3/4" 17 .058" 1/2" 1" 1-5/8" 1" A-12-058
3/4" 16 .065" 1/2" 1" 1-5/8" 1" A-12-065
3/4" 14 .083" 1/2" 1" 1-5/8" 1" A-12-083
3/4" 13 .095" 1/2" 1" 1-5/8" 1" A-12-095
3/4" 11 .120" 1/2" 1" 1-5/8" 1" A-12-120
